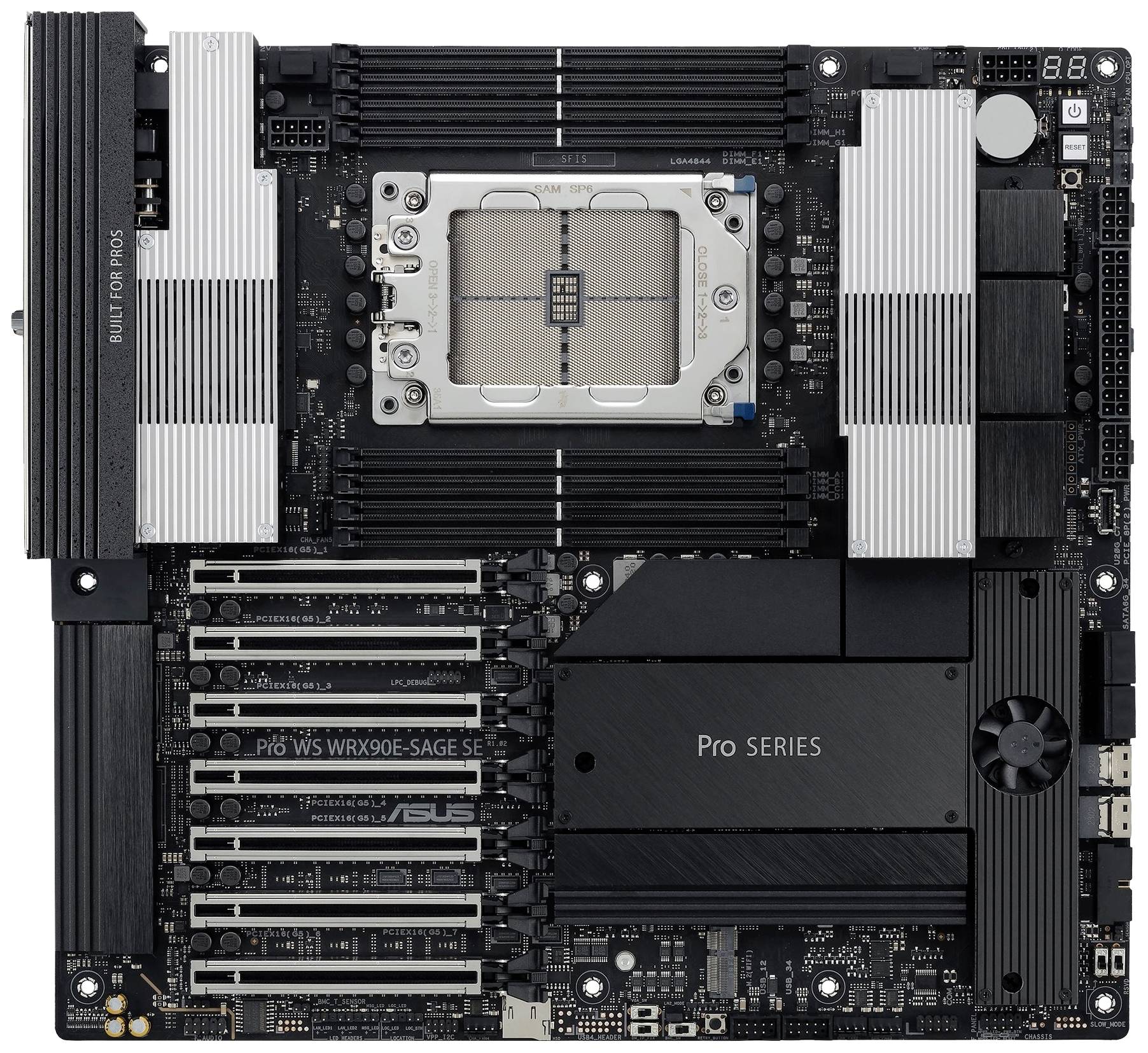

Asus PRO WS WRX90E-SAGE SE Motherboard PC base #####AMD sTR5 Form factor (details) SSI EEB Motherboard chipset AMD® WRX9
EAN:
Part number:
Item no:
Technical specifications
- Supported RAM Health Check: ECC
- RAM - Registered or buffered: Registered
- RAM features: Four-channel memory architecture
- Audio type: HD audio (6-channel)
- Audio Codec: Realtek ALC1220P
- Audio-compatibility: High-definition audio
- Network interfaces: Gigabit Ethernet
- Expansion slots: 1 x CPU; 8 x DIMM 288-pin; 6 x PCIe 5.0 x16; 1 x PCIe 5.0 x16 (8x mode); 2 x M.2 slot (2242/2260/2280/22110 M.2 slot with key M); 2 x M.2 slot (2242/2260/2280 M.2 slot with key M)
- Memory interfaces: SATA-600 ports: 4 x 7-pin serial ATA- RAID 0 / RAID 1 / RAID 10 / RAID 5; PCIe 5.0 ports 4 x M.2; PCIe 4.0 ports: 2 x SlimSAS
- External interfaces: 1 x VGA; 2 x Mini DisplayPort; 6 x USB 3.2 Gen 2; 2 x USB4; 1 x USB 2.0; 2 x LAN (10Gigabit Ethernet); 1 x Microphone - Mini jack plug; 1 x Audio Line Out - Mini jack plug; 1 x LAN (Gigabit Ethernet)
- Internal interfaces: 4 x USB 2.0 - multi-pin connector; 2 x USB 3.2 Gen 1 - multi-pin connector; 1 x USB-C 3.2 Gen 2x2 - pin strip; 1 x audio - pin bar; 1 x SPI multi-pin connector
- Power connections: Main power connector, 24-pin, 2 x 8-pin ATX12V connectors, 2 x 8-pin PCI Express power connector, 2 x 8-pin PCI Express to CPU power connector
- BIOS FEATURES: UEFI BIOS
- Sleep / Wake -up: Wake-On-LAN (WOL), Wake On PME
- Asus Q design, ESD guards, Q-DIMM, Asus EZ DIY, Q-LED, Q-slot, crash-free BIOS 3, Asus DIGI+ VRM, Q-code, transparent CMOS-button, Asus stainless steel back I/O, over-current protection, LANguard, over-voltage protection, Asus safe slot, Asus 5X Protection III, Asus SafeDIMM, M.2 Heat Sink, Pre-Mounted I/O Shield, Asus ProCool II, M.2 Q-latch, PCIe slot Q-release, BIOS Flashback button, BIOS Flashback LED, VRM heat sink with fan, steel rear panel, M.2 heat sink rear panel, Q-connector, 32+3+3+3 Phase Power design
- Product type
Motherboard
- Chipset
AMD® WRX90
#####AMD sTR5
- Form factor
SSI EEB
- Processor/type
unterstützt Ryzen Threadripper PRO 7000WX Series/7000 Series
- RAM type
DDR5 RAM
- RAM / Max. upgrade
2 TB
- Interfaces
VGA
Mini DisplayPort
USB A (USB 3.2 2nd gen)
USB C® (USB4®)
USB A (USB 2.0)
Gigabit LAN (10 Gbps)
Gigabit LAN (1 Gbps)
Microphone (3.5 mm jack)
Audio line in
Audio line out
Show more
- No. of DDR5 slots
8 x
- No. of LAN ports
3 x
- No. of Gigabit LANs
2 x
- No. of PCIe x8
1 x
- No. of PCIe 3.0 x16
7 x
- No. of PCIe x16
7 x
- No. of USB 2.0 ports
1 x
- No. of USB 3.2 2nd Gen (USB 3.1)
6 x
- No. of USB 3.2
11 x
- No. of USB 3.0 ports
2 x
- No. of SATA III ports
4 x
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3045588 Asus PRO WS WRX90E-SAGE SE Motherboard PC base #####AMD sTR5 Form factor (details) SSI EEB Motherboard chipset AMD® WRX9
Description
Scope of delivery
- Thermistor cable
- Q connector
- M.2 Q latch
- M.2 Key E screw package
- AMI License sticker
- 4 x M.2 Rubber pack
- 4 x Serial ATA cable
- 2 x 8-pin PCIe to simple 8-pin CPU converters
- 1 x 24-pin power cable (Y-cable)
- 2 x Mini DisplayPort cable
