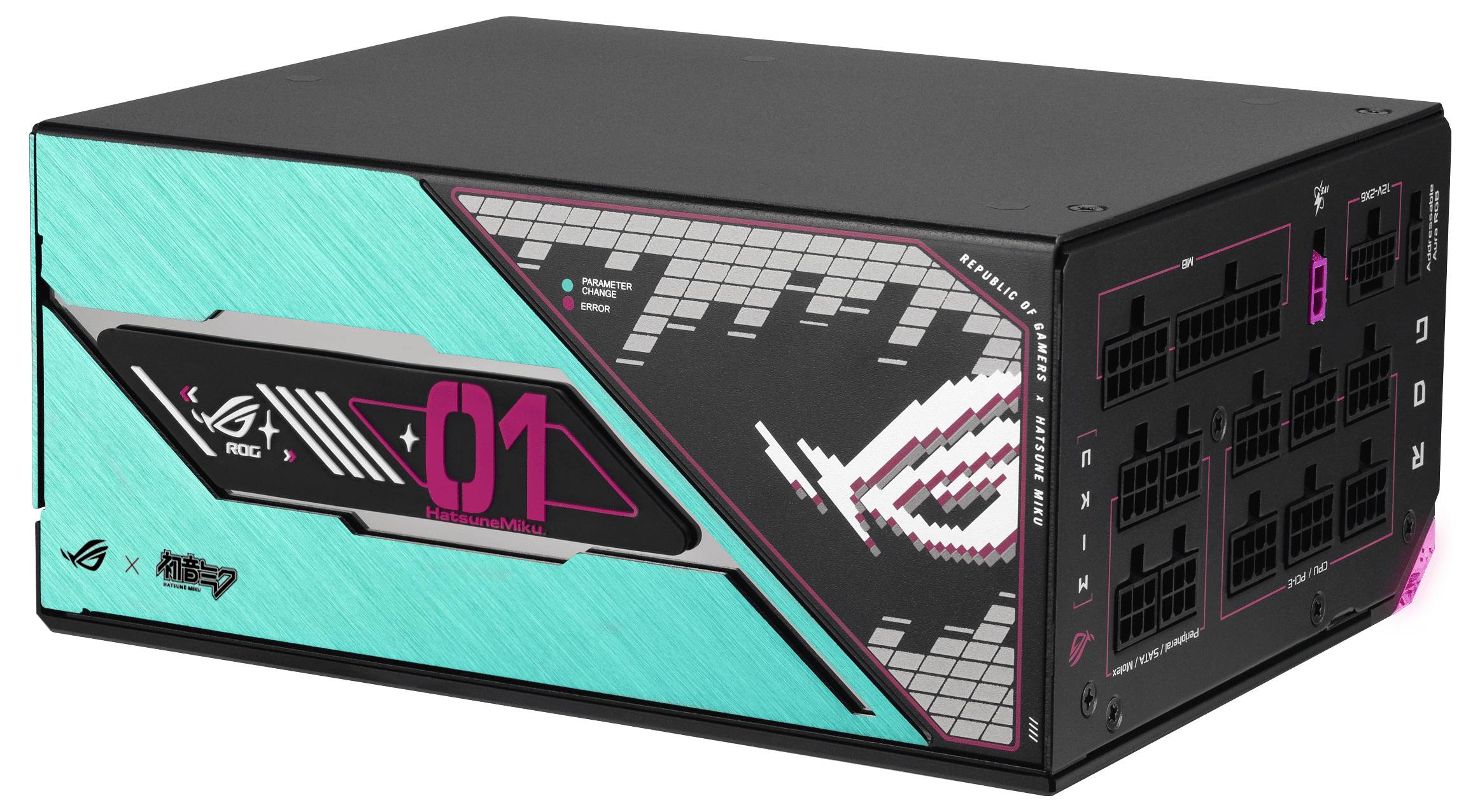

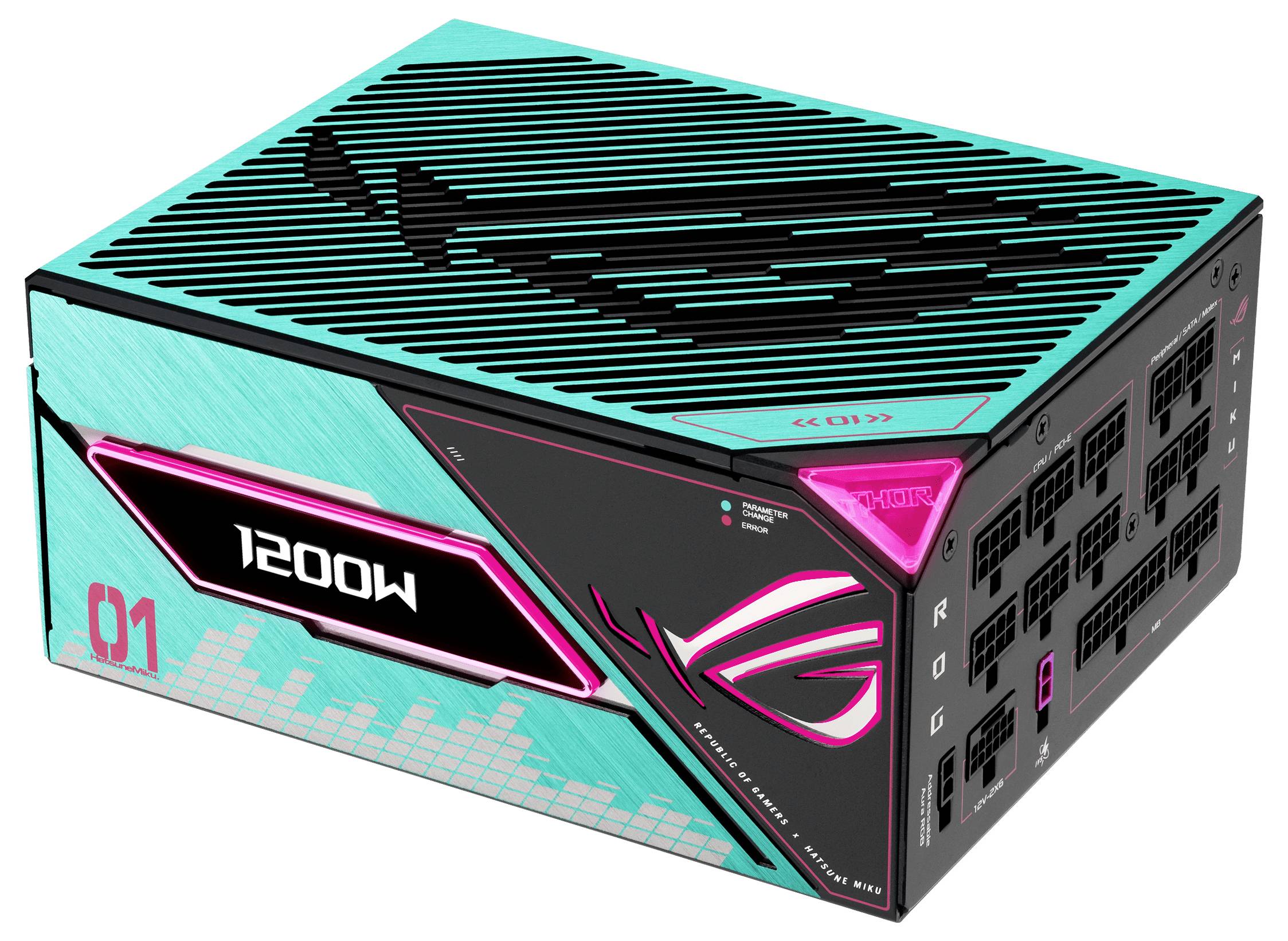

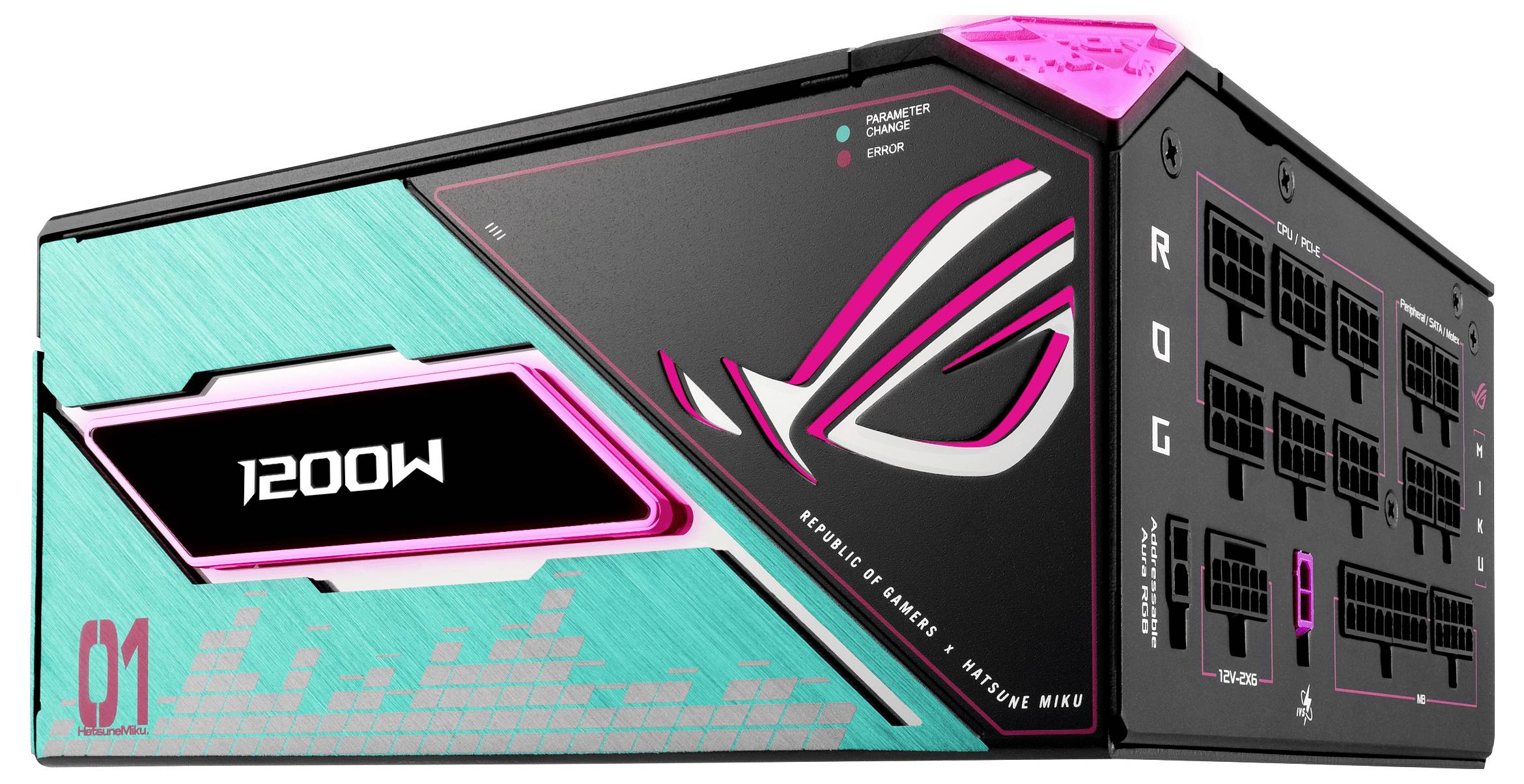

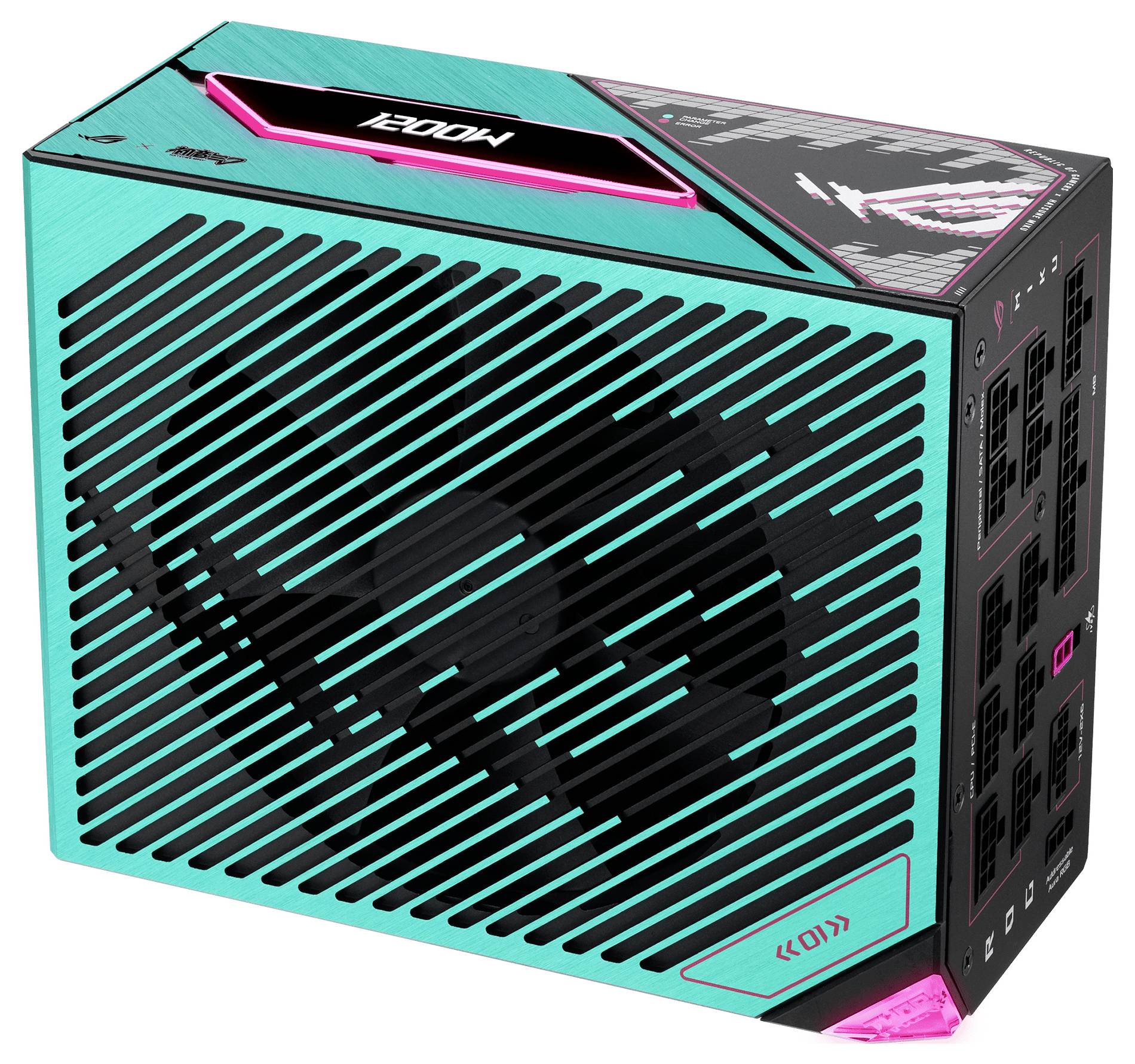

Asus ROG THOR 1200P3 PC power supply unit 1200 W ATX 80 PLUS Platinum
Product type
PC power supply unit
PSU output power
1200 W
Certification
80 PLUS Platinum
Form factor
ATX
Factory colour
Multicolour
EAN:
Part number:
Item no:
Highlights & Details
Asus ROG THOR 1200P3 PC power supply unit
- Power supply unit output 1200 W
- PCI-Express (6+2-Pin) 4x
- Cable management
- 80 PLUS Platinum
Technical specifications
- 80 Plus certification: 80 PLUS Platinum
- Product type
PC power supply unit
- PSU output power
1200 W
- Certification
80 PLUS Platinum
- Form factor
ATX
- Factory colour
Multicolour
- Dim
(W x H x D) 190 x 86 x 150 mm
- Depth
150 mm
- Height
86 mm
- Width
190 mm
- Weight
2.37 kg
- -12V / DC
0.3 A
- +12 V/DC (1)
100 A
- 5 V DC
25 A
- +5V / DC SB
3 A
- 4-pin Molex
6
- 6-pin PCIe
4
- 5-pin SATA
7
- Power rating
751 W -
- Cooling
Active
- 3.3V DC
30 A
- Power supply (details)
100 - 240 V
- Operating voltage
230 V / AC
- UKCA
yes
- Illumination
yes
- Motherboard power cable length
61 cm
- CPU power cable length
100 cm
- PCI Express power cable length
75 cm
- PCI Express power connectors (16-pin)
1
- Mean time between failures (MTBF)
120000 h
- CPU power connector (4+4 pin)
yes
- Package weight
5.21 kg
- Combined power (+3.3V)
125 W
- Combined power (+12V)
1200 W
- Combined power (+5V)
125 W
- Combined power (-12V)
3.6 W
- Combined power (+5Vsb)
15 W
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3474659 Asus ROG THOR 1200P3 PC power supply unit 1200 W ATX 80 PLUS Platinum
Description

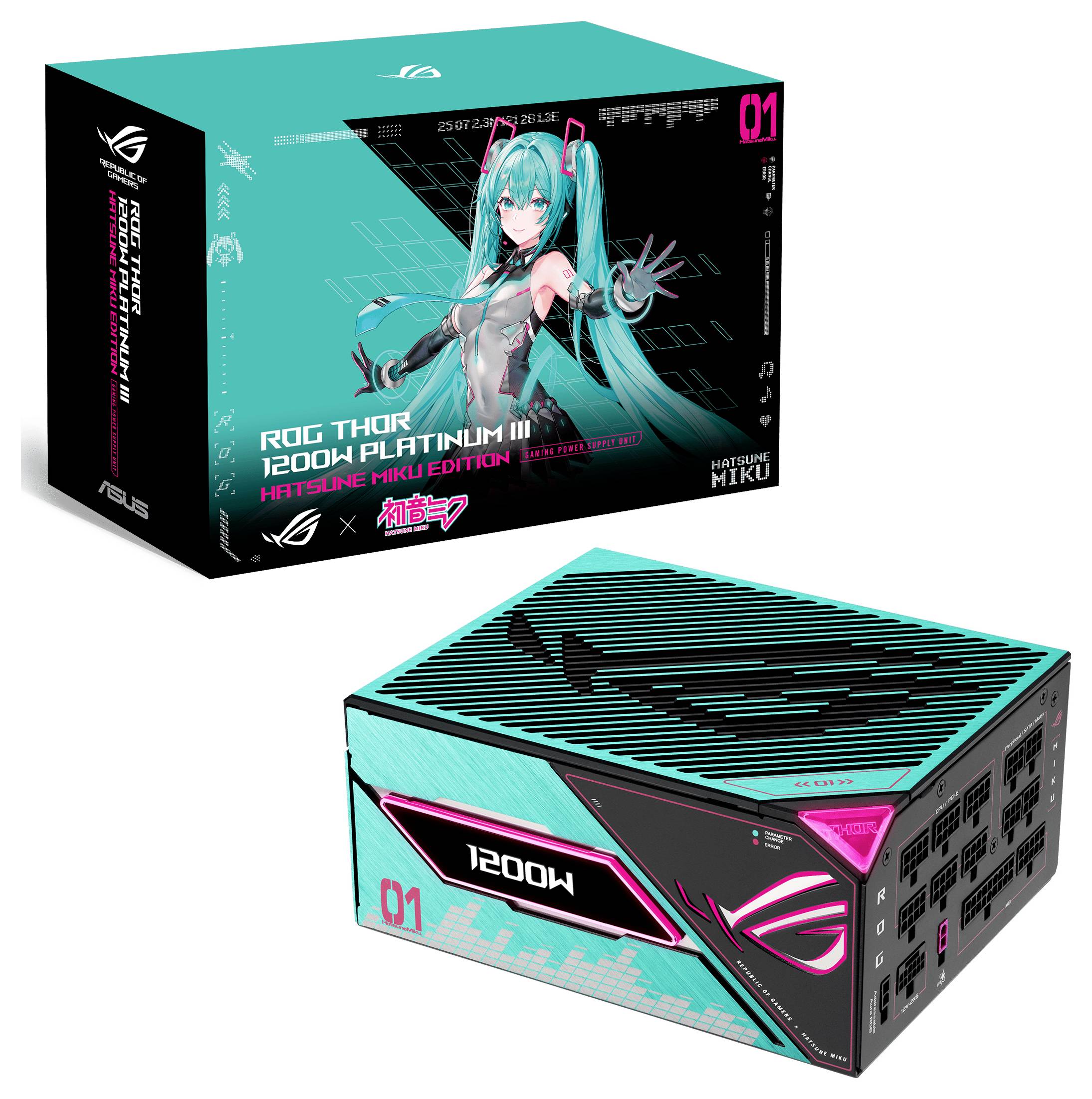

ROG Thor 1200W Platinum III Hatshune Miku Edition
Equipped with a GaN MOSFET, the patented intelligent voltage stabilizer GPU First and a magnetic OLED display, the ROG Thor 1200W Platinum III Hattune Miku edition offers unsurpassed performance and rock-solid stability for your ultimate PC setup
ROG continues its collaboration with the virtual pop star Hatsune Miku with a complete gaming system that focuses on the SCI-Fi aesthetics of ROG and Mikus characteristic blue-green-pink color scheme. The collection combines Hatsune Mikus's signature style with superior ROG performance, premium quality and versatile functionality for competitive gaming or daily tasks. The products include a motherboard, a graphics card, a PC case, an all-in-one cooler, an SSD chassis, a power supply, a monitor and clothing so gamers can create a complete gaming setup that radiates the vibrant Miku aesthetics.
This text is machine translated.
Features

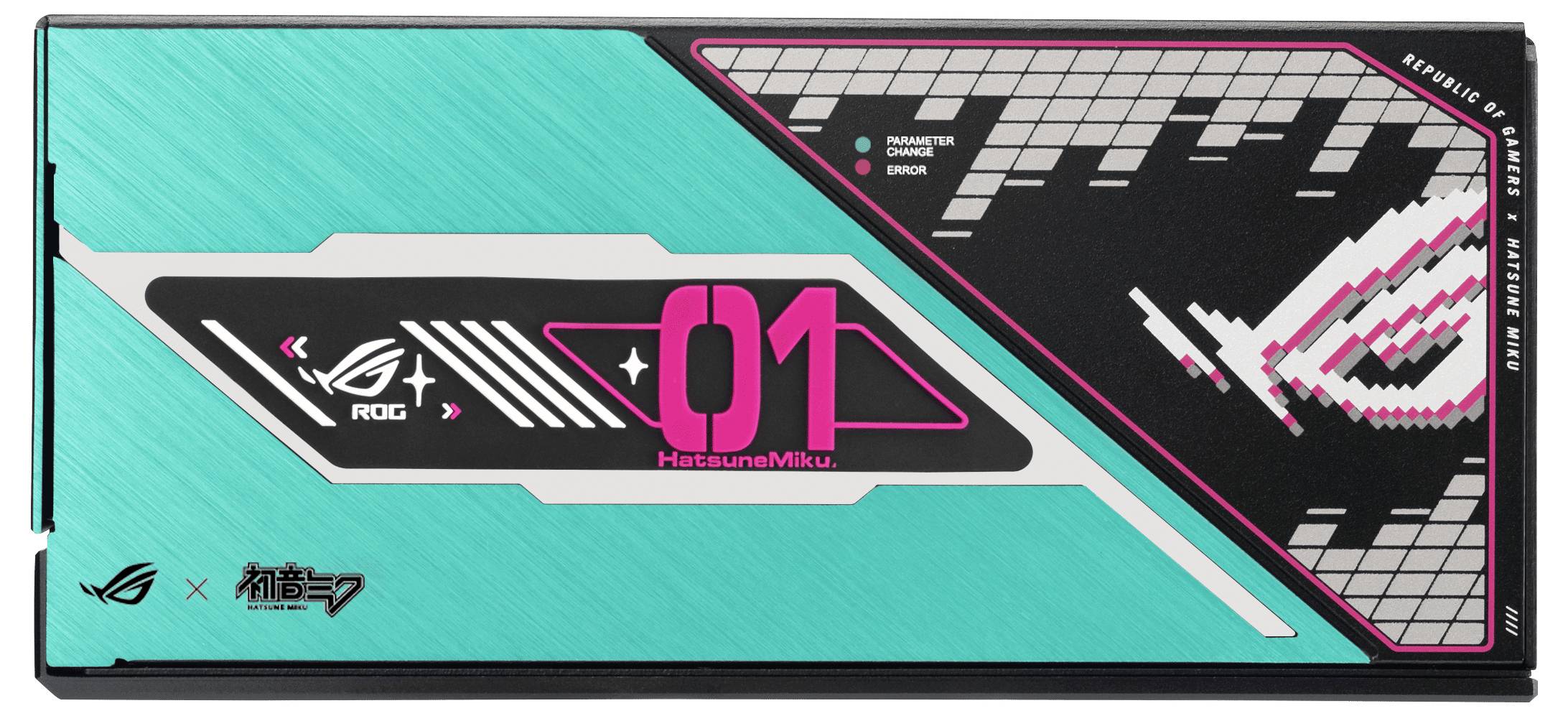

- The co-branded edition combines unbeatable ROG performance and SCI-Fi-inspired aesthetics with the characteristic blue-green and pink Hatsun Miku color scheme
- The GaN-MOSFET offers up to 30% more performance efficiency than standard MOSFETs and a clearer internal layout for cooler operation.
- The GPU First voltage measurement with patented intelligent voltage stabilizer improves graphics card power supply by up to 45% for smoother playing and consistent performance.

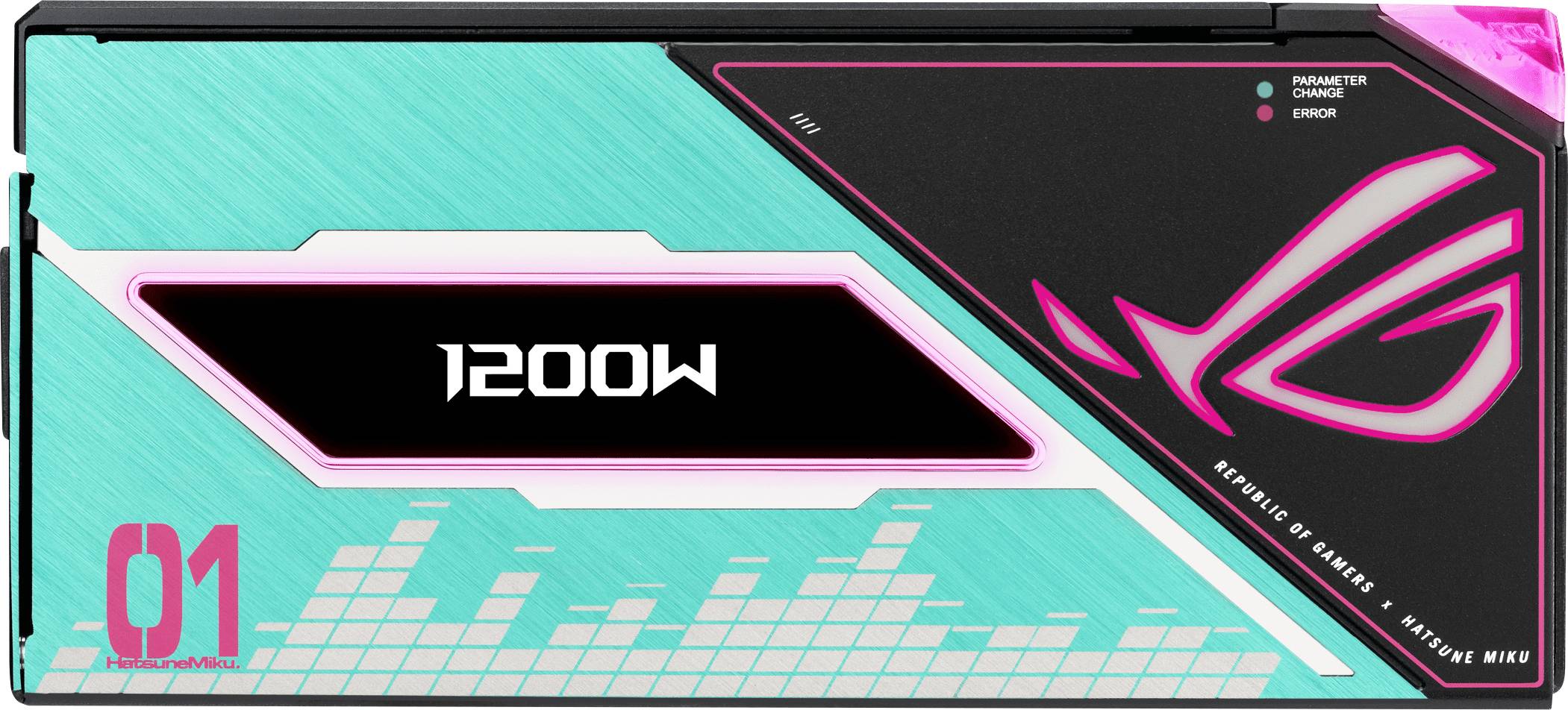

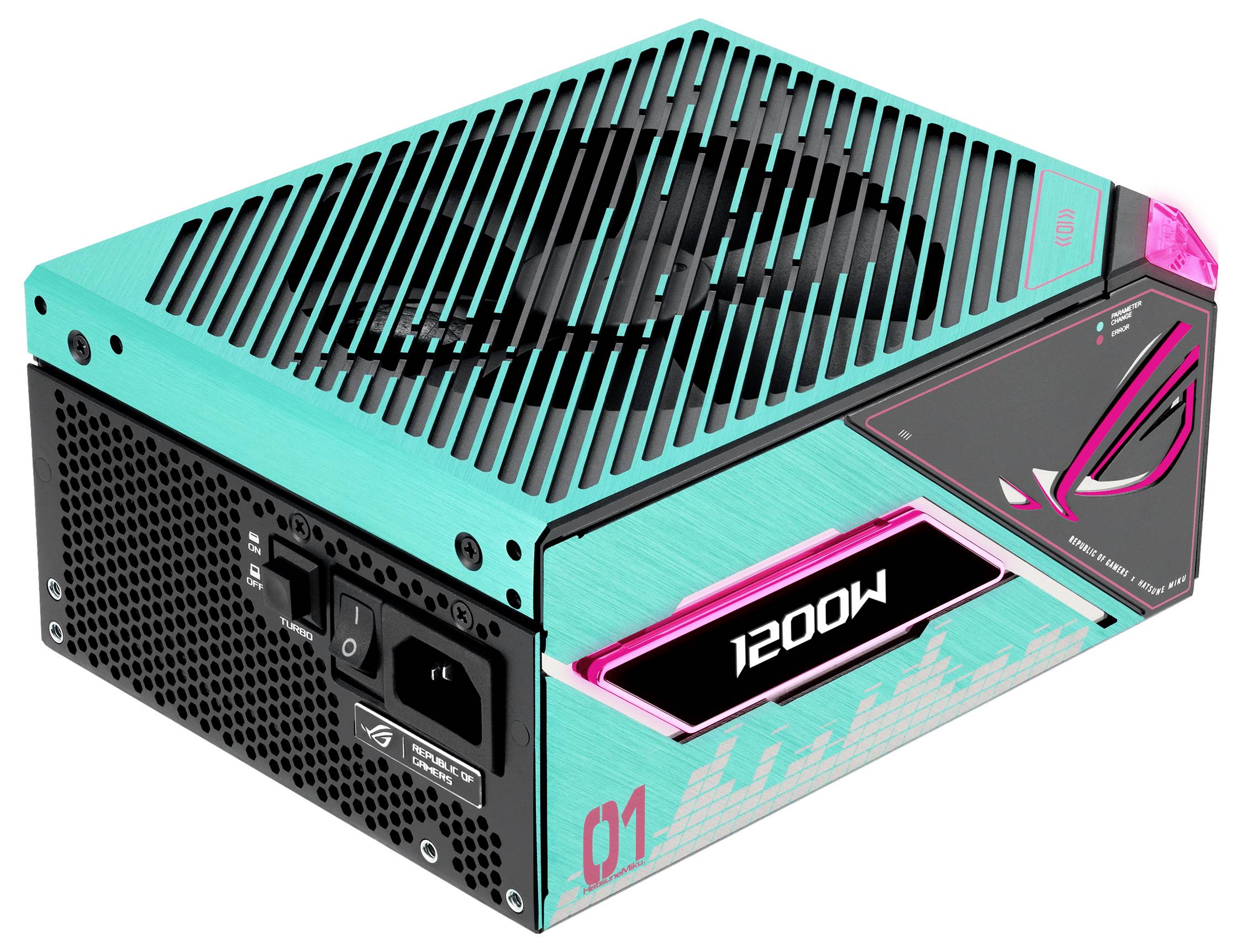

- The magnetic OLED display shows the power consumption in real time and can be pushed on both sides of the device, in order to enable the installation of the power supply with or without fans.

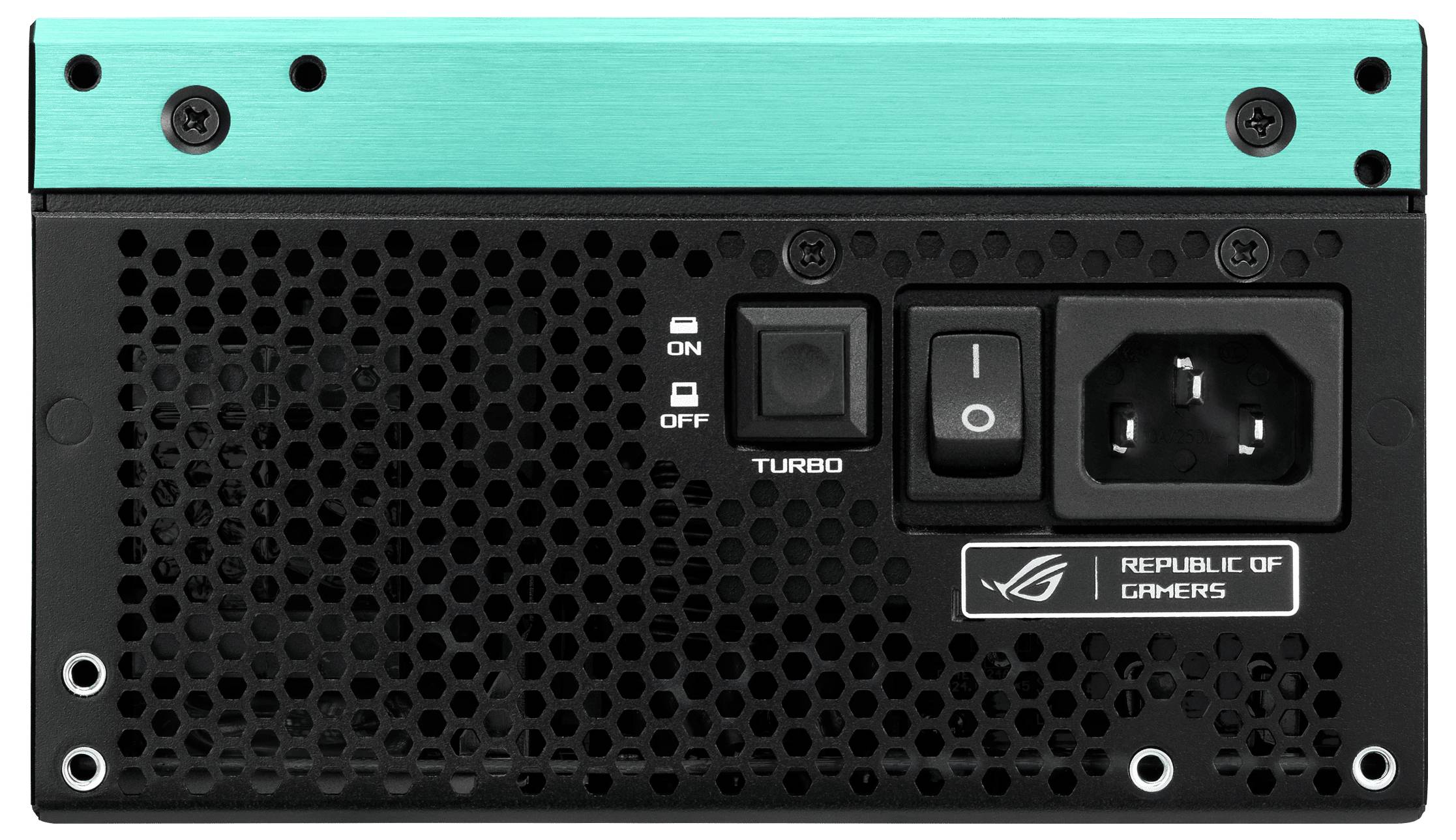

- Turbo mode: High-quality components and a finely tuned fan curve provide for a high performance.

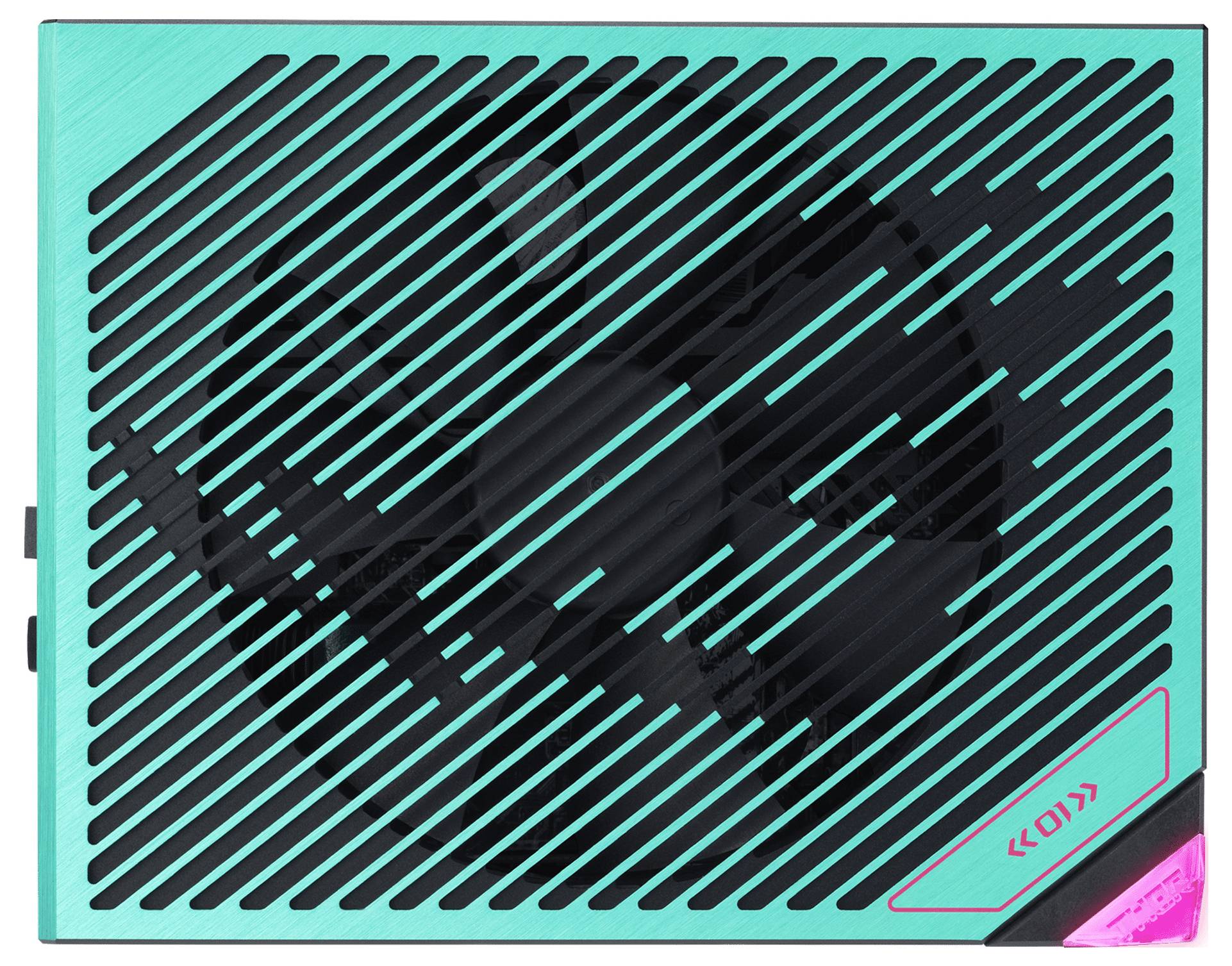

- The ROG heat sink and aluminum housing provide excellent cooling and control the heat development of your system.
- Double ball bearings can hold up to twice as long as plain bearings.
- ATX 3.1 compatible: The ROG Thor Platinum III Hatshune Miku edition conforms to the ATX 3.1 standard and ensures an improved voltage and current regulation for the latest hardware.
- Lambda A++ certification: Certified low noise levels below 15 dB.

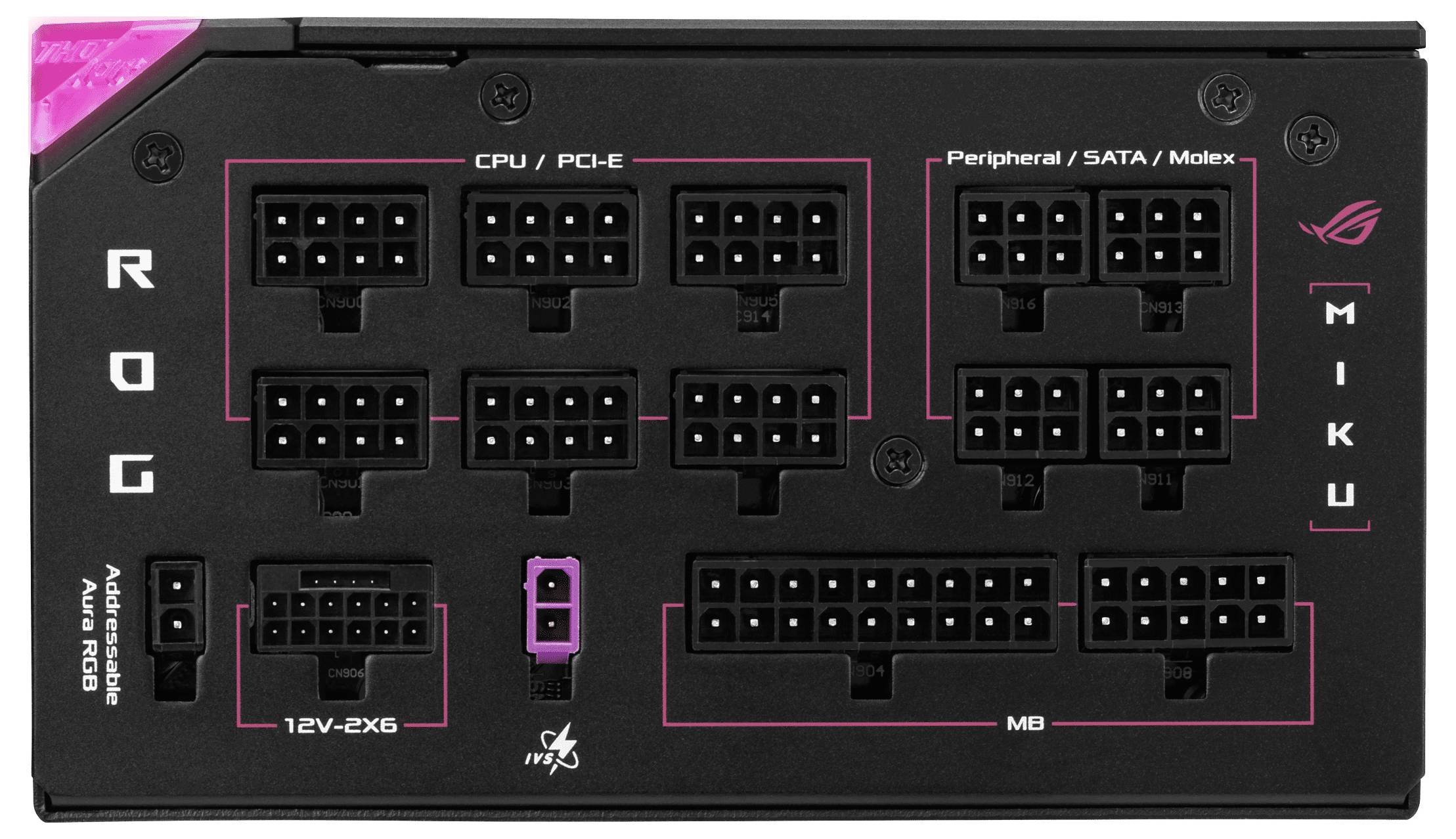

- Etched modular cables with a flexible premium material for effortless cable management and exceptional security.
- 80 PLUS & Cybenetics Platinum certified: ROG Thor III Hatshune Miku Edition uses low ESR capacitors and high-quality components for an industry-leading energy efficiency.
Scope of delivery
- Power cord x 1
- Motherboard Power cable x 1 (610mm)
- CPU cable x 2 (1000mm)
- PCI-E Gen 5 16-pin cable x 1 (750mm)
- PCI-e cable 1-to-1 x 4 (750mm)
- SATA cable 1-to-4 x 1 (400+120+120+120mm)
- SATA cable 1-to-3 x 1 (400+120+120mm)
- Peripheral cable 1-to-3 x 2 (400+150+150mm)
- Adressable RGB cable x 1 (800mm)
- ROG sticker x 1
- ROG cable tie x 6
- Chassi Schrauben Sie pack x 1
- CABLE tie x 12
- Thank you card x 1
- User manual x 1
