Asus TUF GAMING Z890-PRO WIFI Motherboard PC base #####Intel® 1851 Form factor (details) ATX Motherboard chipset Intel®

Silver ASUS motherboard from the TUF Gaming series, Z690 model, with multiple expansion slots and connectors, featuring the 'TUF Gaming' logo.

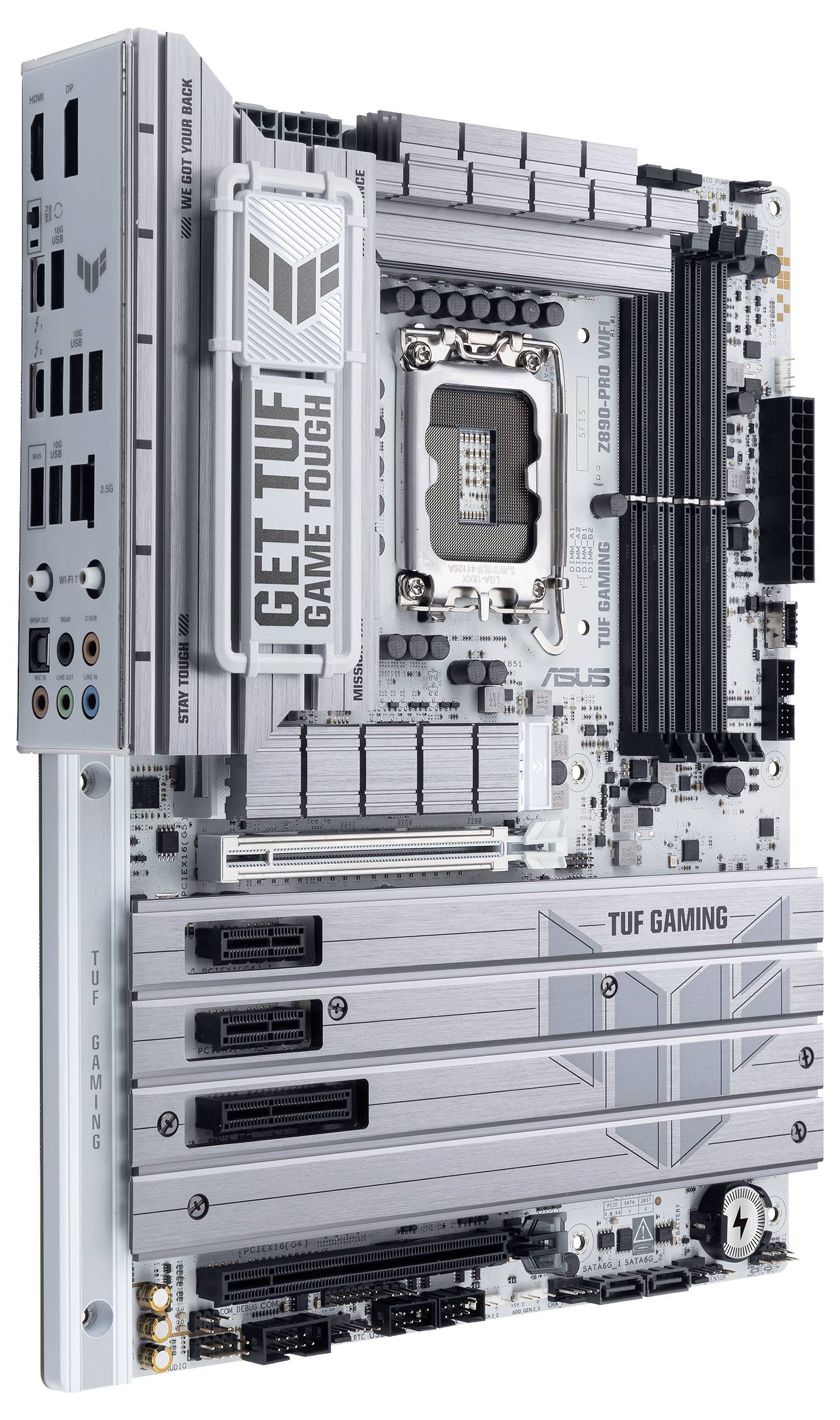

A silver motherboard with the inscription 'TUF Gaming'. Contains numerous ports and slots for processors and expansions.
A grey ASUS TUF Gaming motherboard with various ports and slots, highlighted logo and text reading 'GET TUF GAME TOUGH'.
A silver ASUS TUF Gaming motherboard, model Z790-PLUS D4, with multiple PCIe slots, RAM banks, and cooling fins.

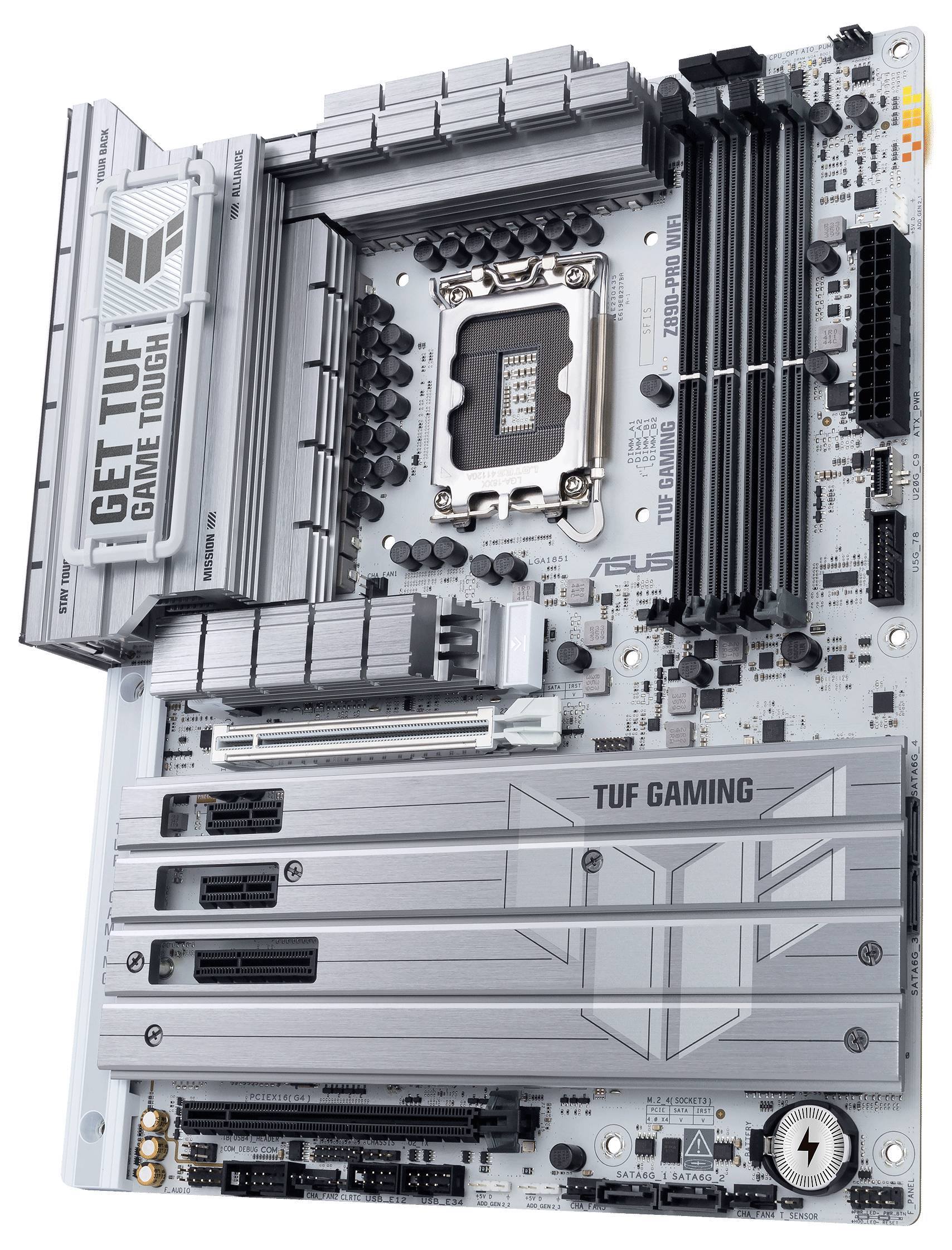

A silver motherboard with 'TUF Gaming' lettering, multiple expansion slots and connectors.

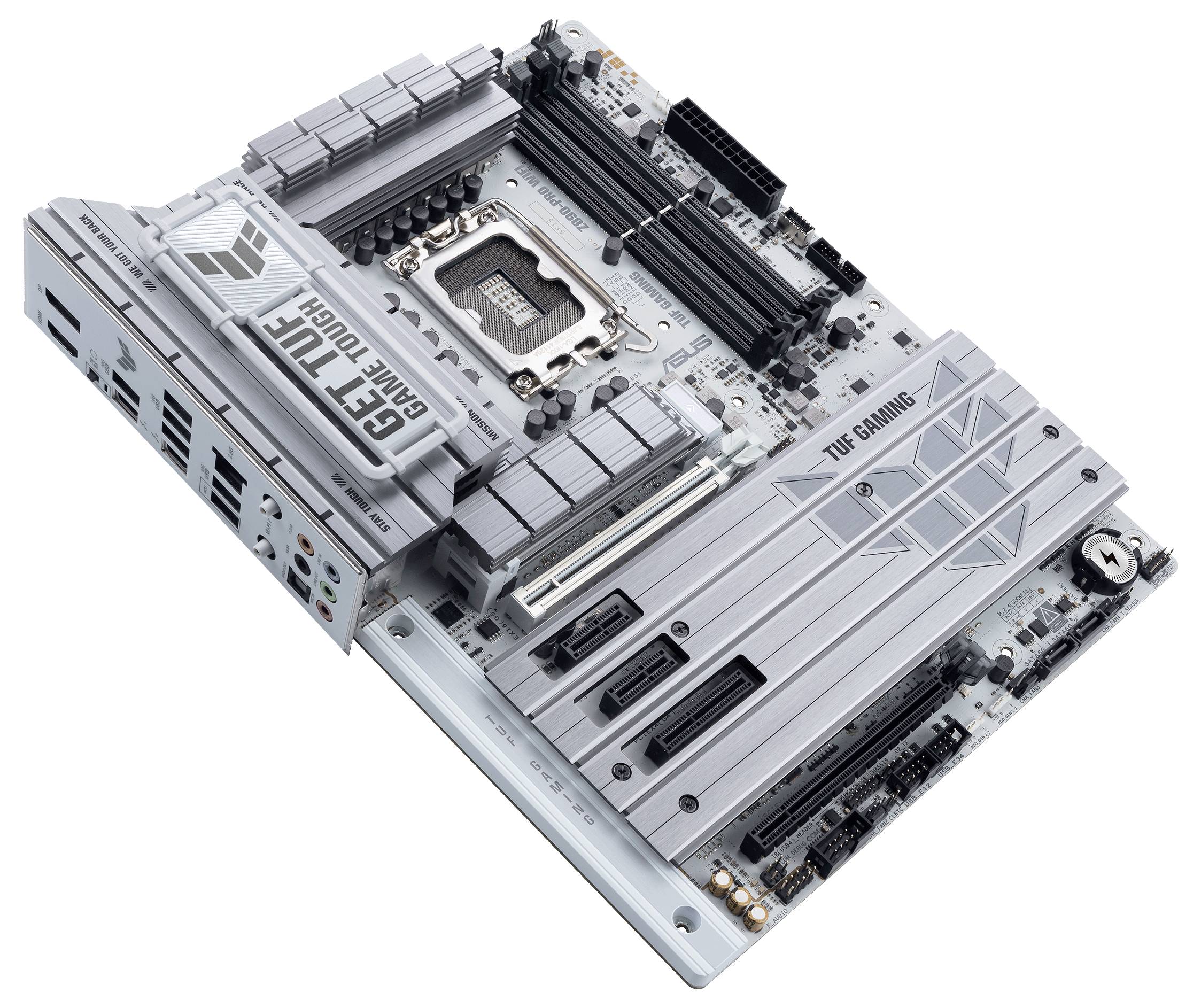

A silver computer motherboard with identifiable expansion slots and USB ports, marked with 'TUF Gaming'.
A silver motherboard with multiple expansion slots and RAM banks. Label reads: 'TUF Gaming'. Ports and connectors visible.

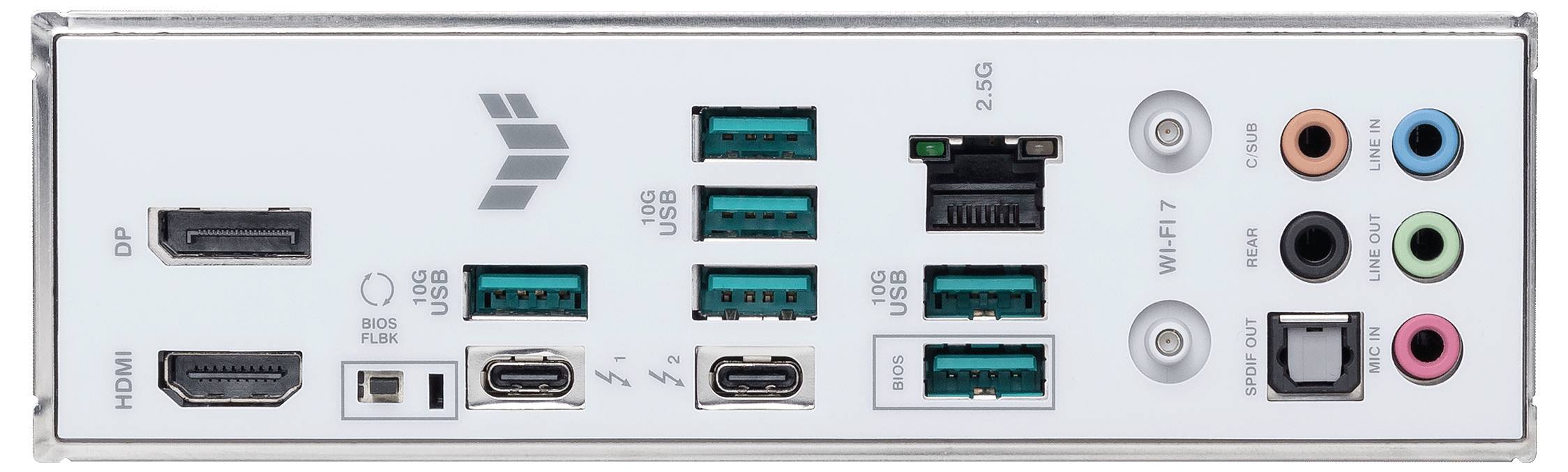

Back of a computer motherboard with various ports: HDMI, DisplayPort, USB, Ethernet, audio ports and Wi-Fi antenna.

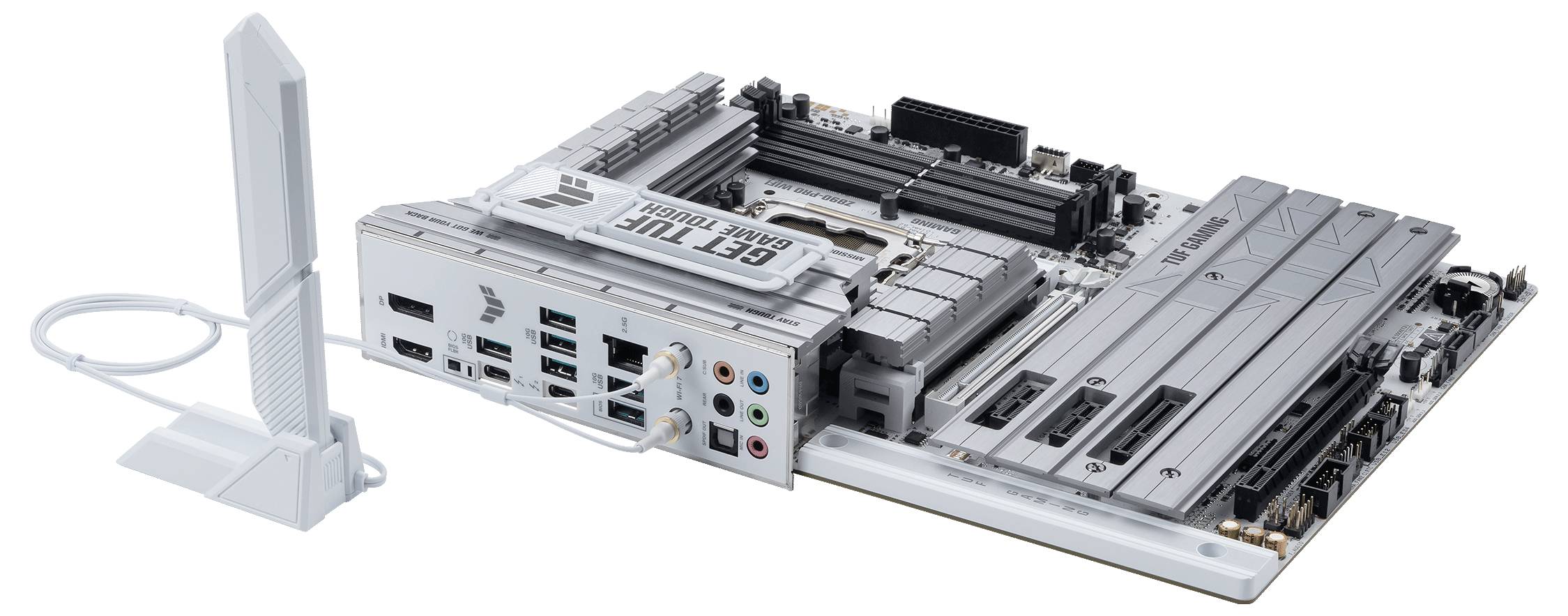

A silver computer motherboard with multiple ports and four RAM slots, alongside an external antenna.

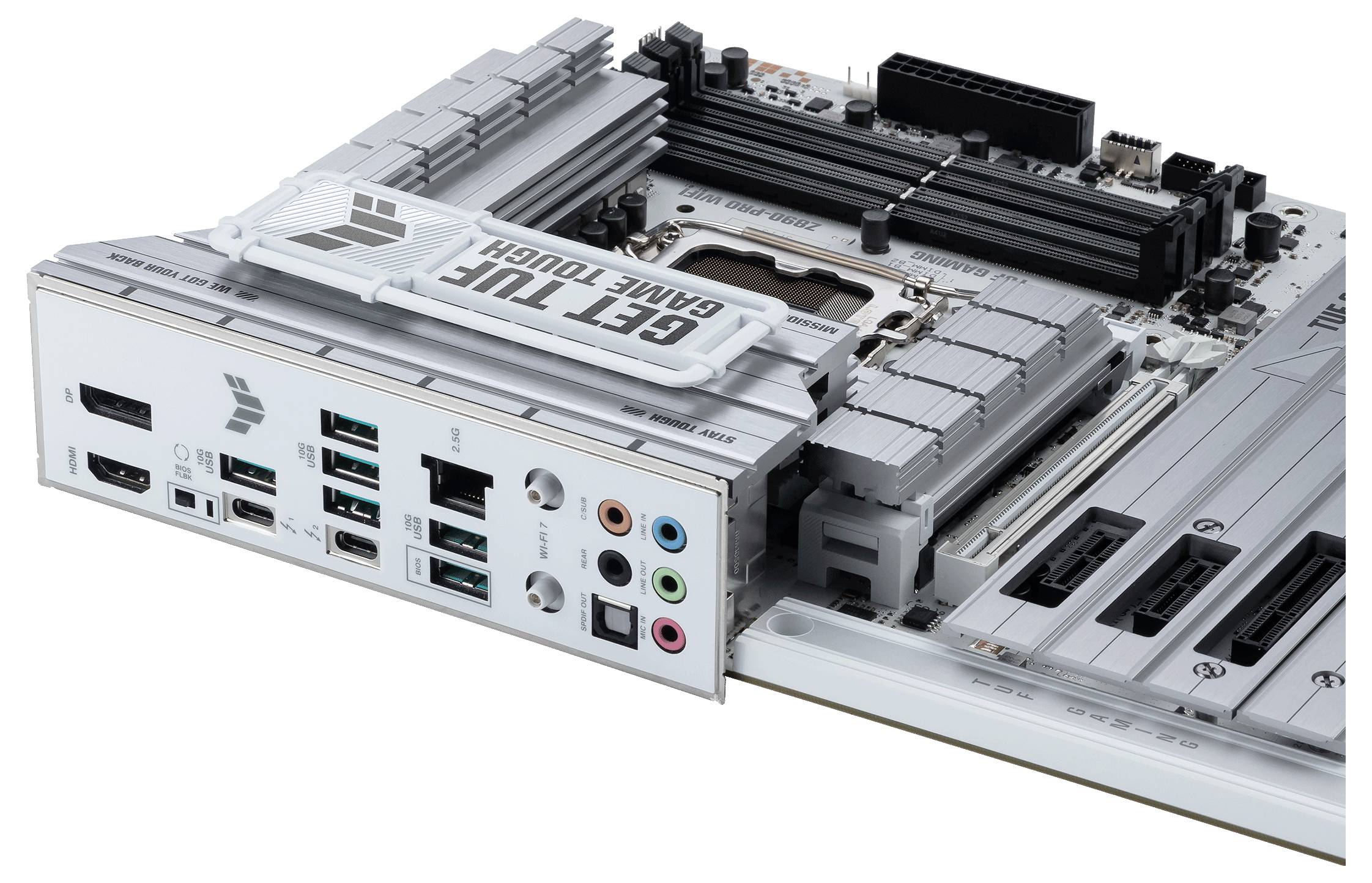

A white computer motherboard with various ports and four RAM slots, marked with 'GET TUF GAME TUF'.

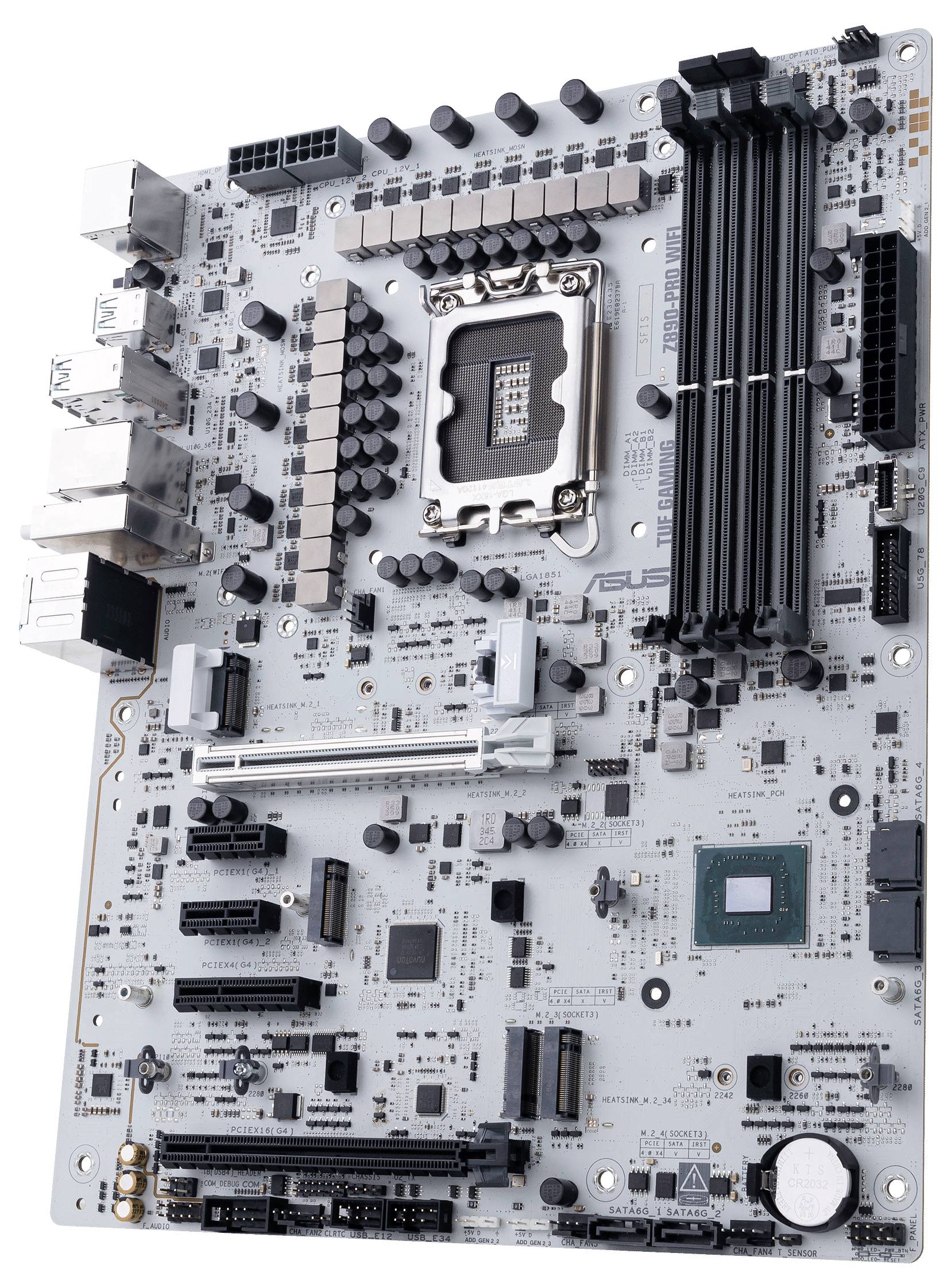

A computer motherboard with various connectors and components, including RAM slots and a CPU socket.
A white ASUS TUF Gaming Z590-Pro WiFi motherboard with four RAM slots, multiple PCIe slots, and a robust heatsink design.
Motherboard 'ASUS TUF Gaming Z790-PRO WIFI' with a grey design and packaging. Includes features such as WiFi and Game Enhancement.
ASUS TUF Gaming Z690-Pro WIFI Motherboard with packaging, accessories including cables, antenna, user manual, and stickers.
1/14
EAN:
Part number:
Item no:
Unavailable
Sales and shipping:
Conrad ElectronicTerms & Conditions
Report legal concerns
Pre-contractual information under the EU Data Act

Highlights & Details

Asus TUF GAMING Z890-PRO WIFI Motherboard

  • Intel LGA 1851 (socket V1)
  • Suitable for Intel Core Ultra (2 series)
  • DDR5 SDRAM
  • Max. 192 GB

Technical specifications

  • 4x M2 interface (1x PCIe 5.0 x4, 4x PCIe 4.0 4x)
Product type

Motherboard

Chipset

Intel® Z890

#####Intel® 1851

Form factor

ATX

RAM type

DDR5 RAM

RAM / Max. upgrade

192 GB

Interfaces

HDMI™

Bluetooth

Thunderbolt 4

No. of DDR5 slots

4 x

No. of Gigabit LANs

1 x

No. of PCIe 3.0 x16

1 x

No. of PCIe x16

2 x

No. of PCIe x4

1 x

No. of PCIe x1

2 x

No. of USB 2.0 ports

4 x

No. of USB 3.2 2nd Gen (USB 3.1)

6 x

No. of USB 3.2

1 x

No. of USB 3.0 ports

1 x

No. of SATA III ports

4 x

Onboard audio

7.1

Optical S/PDIF

Onboard graphics

HDMI 2.1; Thunderbolt

Depth

400 mm

Height

100 mm

Width

300 mm

Weight

5

UKCA

yes

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3342070 Asus TUF GAMING Z890-PRO WIFI Motherboard PC base #####Intel® 1851 Form factor (details) ATX Motherboard chipset Intel®

Description

TUF GAMING Z890-PRO WI-FI
The Asus TUF GAMING Z890-PRO WIFI uses all the essential elements of the latest Intel® Core™ Ultra processors (2 series) and combines them with game-ready features and proven durability. With military-grade components, an improved power supply solution and a comprehensive cooling system, this motherboard exceeds all expectations and offers rock-solid and stable performance for gaming marathons. TUF GAMING boards are also subjected to rigorous endurance tests to ensure that they can withstand conditions where others may fail. This platform provides the performance and connectivity that advanced AI PC applications require.

This text is machine translated.

Features

  • Asus TUF GAMING Z890-PRO WI-FI
  • Processor manufacturer: Intel, processor socket: LGA 1851 (socket V1), compatible processors: Intel core ultra (series 2)
  • Supported memory: DDR5 SDRAM, RAM maximum: 192 GB, memory type: DIMM
  • Supported drive interfaces: M.2, SATA III, supported drives: HDD & SSD, RAID levels: 0, 1, 5, 10
  • Ethernet interface type: 2.5 Gigabit Ethernet, top WLAN standard: Wi-Fi 7 (802.11b), WLAN standards: Wi-Fi 7 (802.11b)
  • Component for: PC, motherboard form factor: ATX, motherboard chipset family: Intel
  • Ready for advanced AI PCs: Designed for the future of AI computing, with the power and connectivity required for demanding AI applications
  • Intel® LGA 1851 Socket: Ready for Intel® Core™ Ultra Processors (2 Series)
  • Complete AI solutions: AI Advisor, AI Overclocking, AI Cooling II and AI Networking II to simplify setup and improve performance
  • Intelligent control: NPU Boost, DIMM Fit and AEMP III to improve CPU and memory performance
  • Robust power supply: 16+1+2+1 80A DrMOS power stages with ProCool power connections, 8-layer PCB, alloy reactors and long-life capacitors for stable power output
  • Optimised cooling design: Large VRM heat sinks, M.2 and PCH heat sinks, hybrid fan header and fan Xpert 4 with AI Cooling II.
  • Latest M.2 support: One onboard PCIe® 5.0 M.2 slot with cooling solution and three PCIe 4.0 M.2 slots
  • Versatile connectivity: PCIe 5.0 x16 slot with full support for Next-Gen GPUs, Thunderbolt™ 4 USB Type-C® ports, front USB 20Gbps Type-C® connector, Thunderbolt™ (USB4®) header support
  • High-performance networks: Built-in Wi-Fi 7 (802.11b) with Asus WiFi Q-antenna and Intel® 2.5 GB Ethernet
  • DIY-friendly design: M.2 Q-Release, PCIe Q-Release Slim, M.2 Q-Latch, Q-Antenna, Q-Dashboard, Q-LED, BIOS Flashback™ key and pre-assembled I/O shield
  • Unmatched personalization: Three addressable Gen 2 headers, all configurable with Asus exclusive Aura Sync RGB lighting
  • Renowned software: Asus DriverHub, Asus MyHotkey, TurboV Core, GlideX and intuitive UEFI BIOS Dashboard
