ATEN CE775-AT-G VGA, USB, Serial (9-pin), Jack connector Extension via RJ45 network cable 300 m
EAN:
Part number:
Item no:
Highlights & Details
ATEN CE 775-KVM switch-serial RS-232/USB 1.x

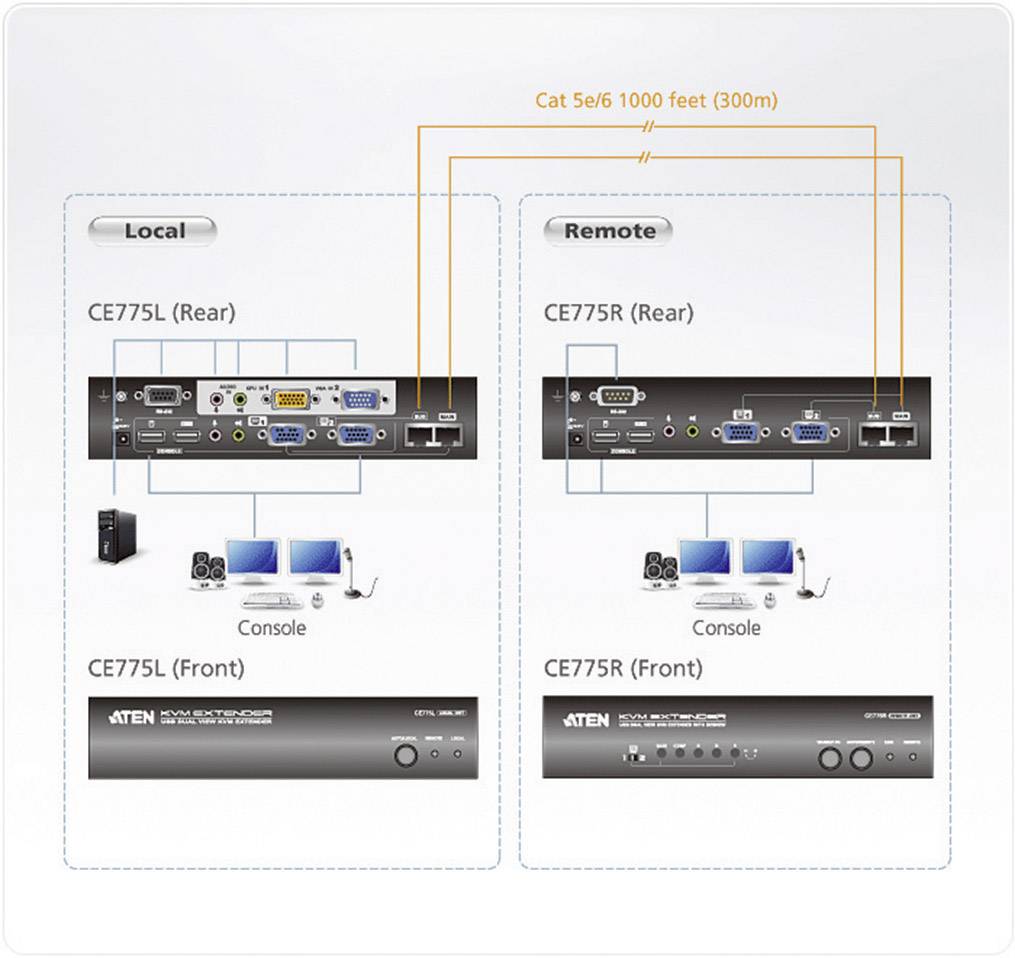

- Two shield support - connect two screens, and transfer the image of two signal sources via affordable Cat.5e/6 cable up to 300 m to a remote location
- Zweikonsolbetrieb - allows the operation of your system via the local and remote console (USB keyboard, mouse and monitor)
Technical specifications
- Product type
Extension
- Transfer type
via RJ45 network cable

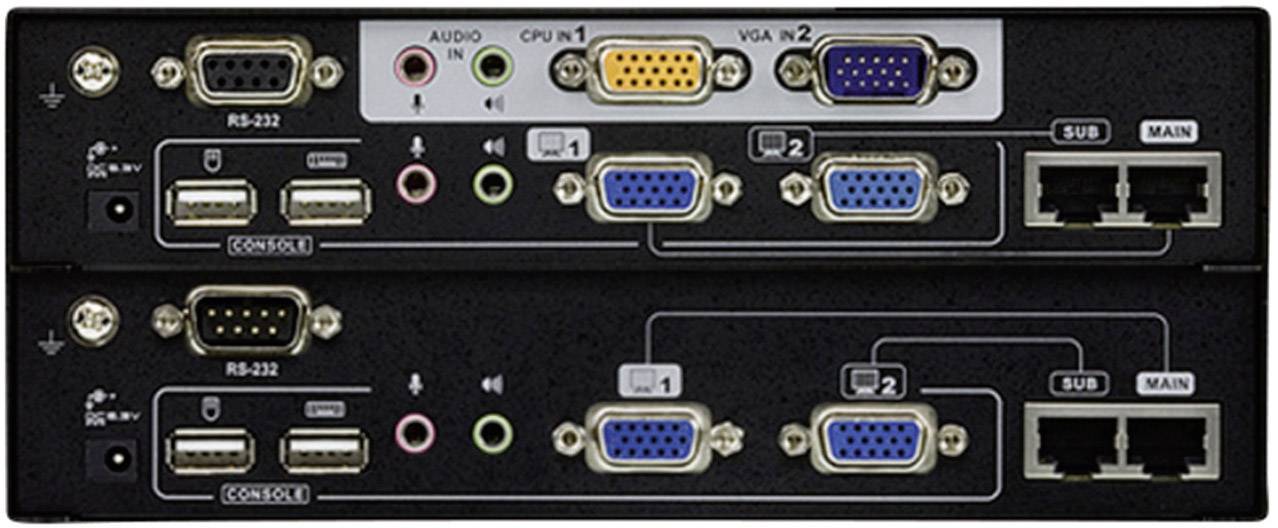

- Interfaces (input)
VGA
USB
Serial (9-pin)
Jack connector
- Interfaces (output)
VGA
USB
Serial (9-pin)
Jack connector
- Resolution (max.)
1920 x 1200 p
- Range (max.)
300 m
- Factory colour
Black
- Weight
0.7 kg
- Length
42 mm
- Width
200 mm
- Height
76 mm
- Dim
(L x W x H) 42 x 200 x 76 mm
- Power supply (LOV)
via PSU
- Audio headphones
Yes
- Audio microphone
Yes
- Stackable
No
- Controller
USB
- Rack mount option
No
- Switch function
Hot key
- Video via
VGA
- Ethernet ports
2
- No. of USB 2.0 ports
2 x
- No. of switchable PCs
2
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1879793 ATEN CE775-AT-G VGA, USB, Serial (9-pin), Jack connector Extension via RJ45 network cable 300 m
Description
Aten CE 775. Type: AV transmitter & receiver, Maximum resolution: 1920 x 1200 pixels, Supported cable types: Cat 5e. Audio connections: 3.5mm, Audio Output: 3.5mm. Working voltage: 5.3 V. Dimensions (wxdxh): 75.8 x 200 x 42 mm, weight: 690 g
This text is machine translated.
This text is machine translated.
Features
- Signal compensation - synchronizes the cable length-related transit time differences of the RGB signals are automatically
- PC Wakeup Support - simply press a button on the remote console to a local computer via RS-232 to reactivate
- Improved image quality - up to 1920 x 1200 at 60 Hz (150m), 1280 x 1024 at 60 Hz (300 m)
- Control for setting the signal strength/compensation - enables the manual adjustment to the distance
- OSD screen menu - convenient setting options of the image quality via the intuitive OSD menu navigation
- RS-232 serial interface-channel connection option for serial terminal or serial devices such as, for example, touch screens or bar code scanner
- Built-in protection against static discharge to 8 or 15 kV (8 kV with contact, 15 kV with flashover)
- Supports and emulates Sun/Mac-Tastaturen*
- * 1. PC keyboard combinations emulate Sun/Mac-Tastaturen
- 2. Sun/Mac-Tastaturen only works with sun or Macintosh computers
Scope of delivery

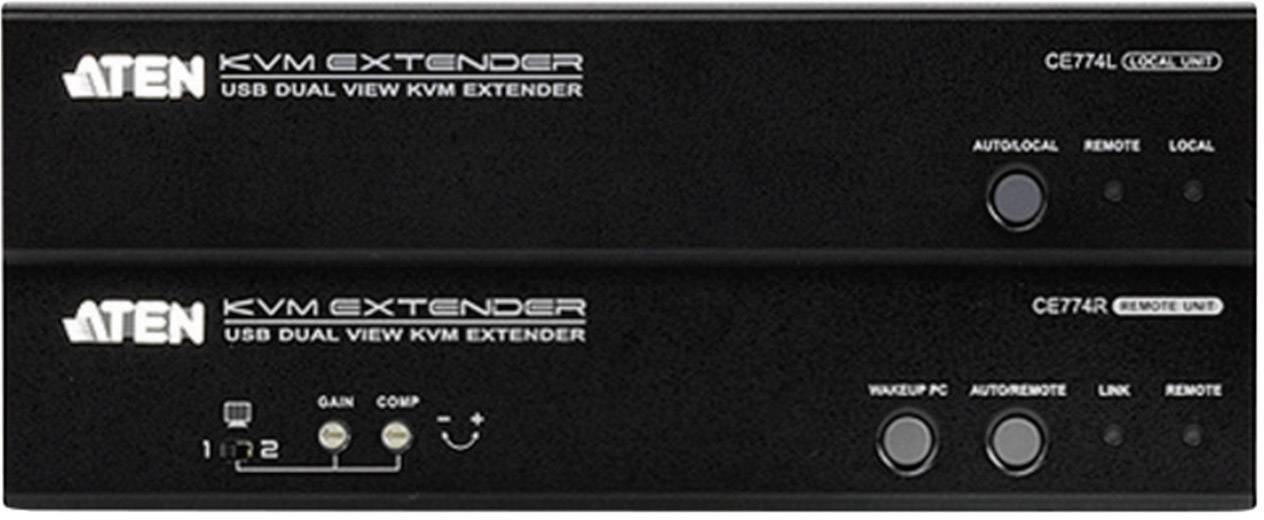

- 1 x CE 775 L USB KVM extension (local device)
- 1 x CE 775 R USB KVM extension (device for remote station)
- 1 x LIN 5-15X1-X2 BG VGA cable
- 1 x 2L -5302 U USB-KVM cable set
- 2 x 0 AD 6-1605-24EC Power Supplies
- 1 x mounting kit
- 1x user manual.
