ATEN CE990 KVM extender DisplayPort 4096 x 2160 Pixel
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details

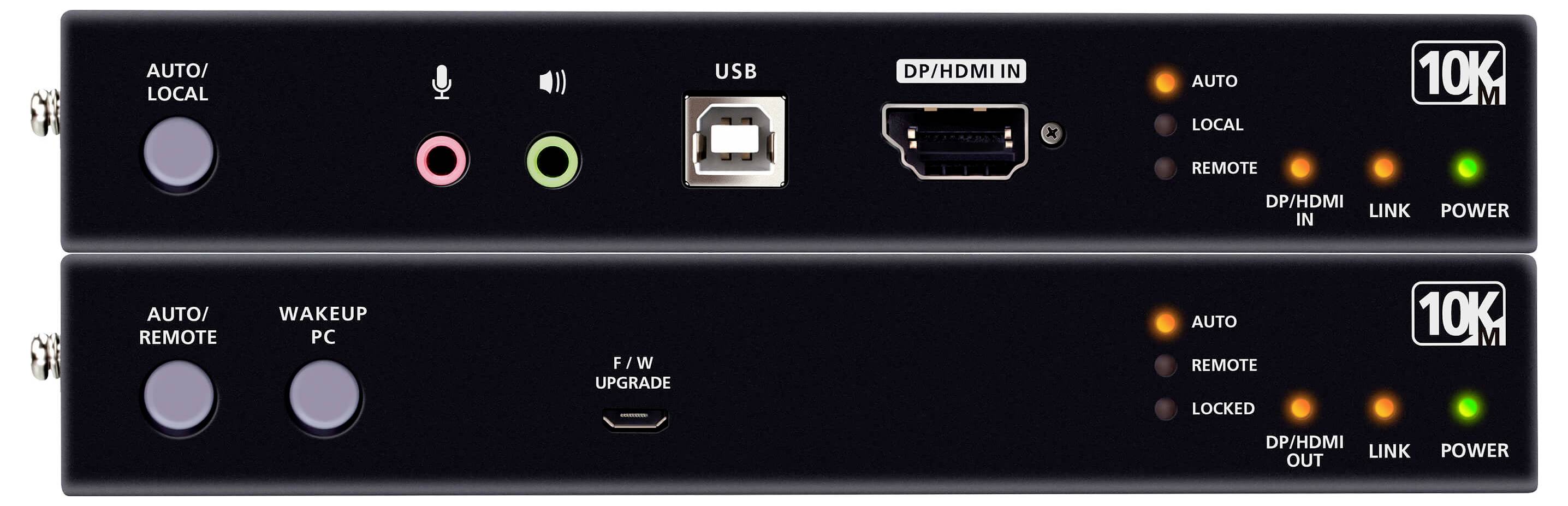

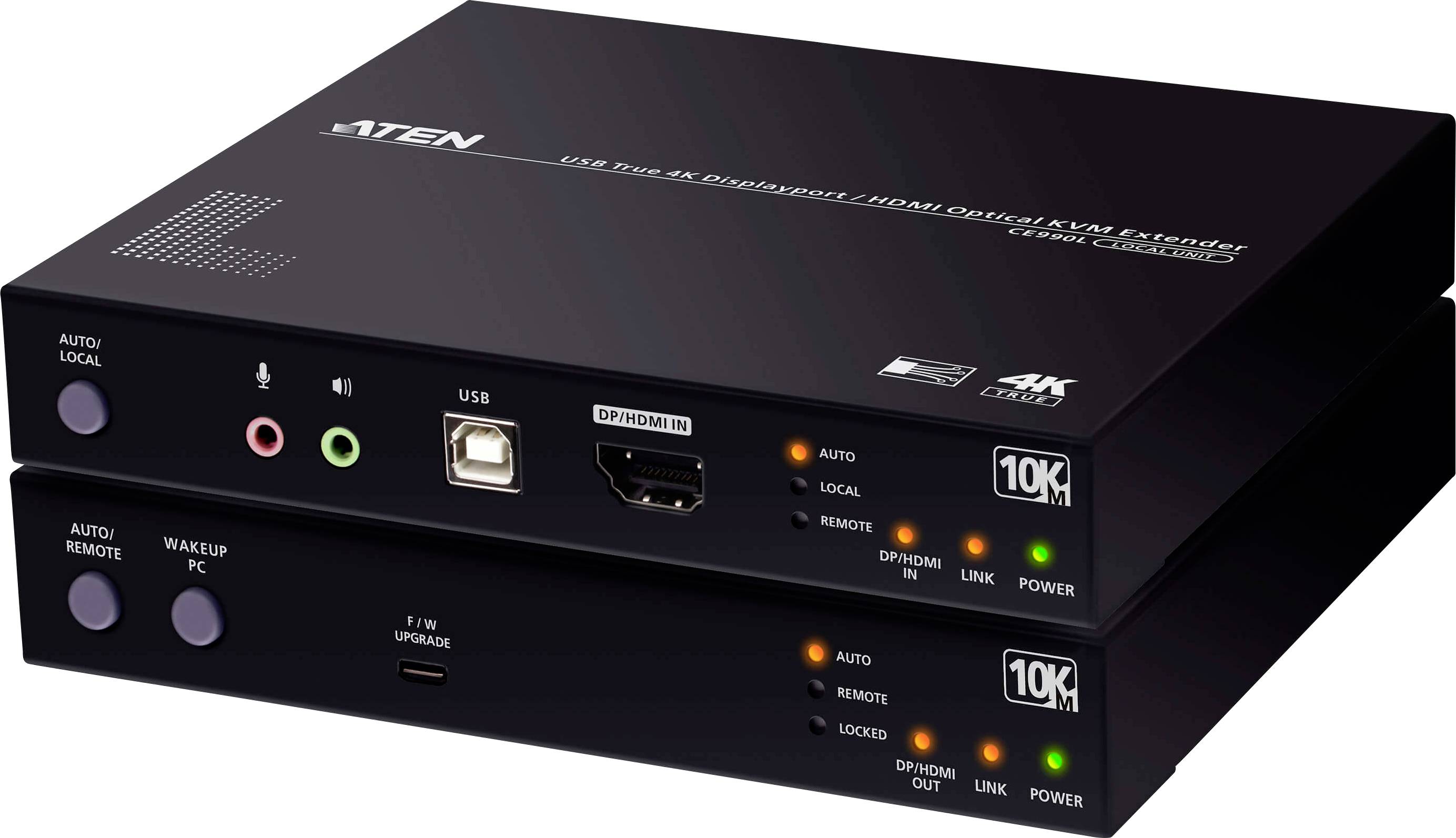

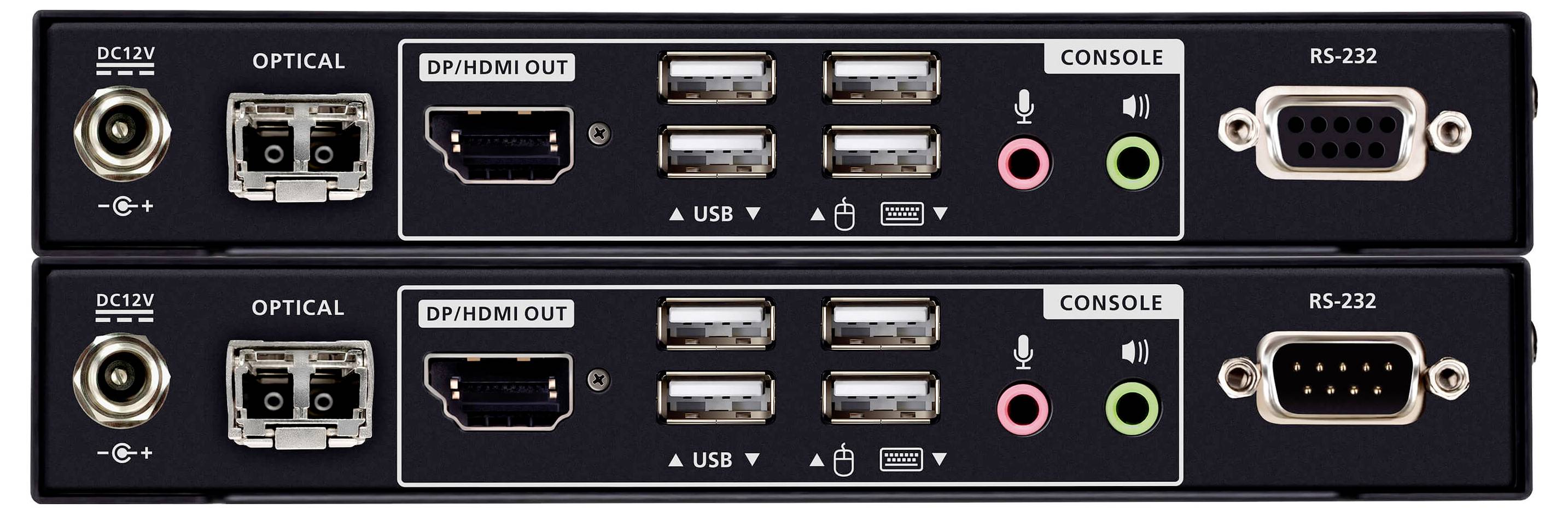

ATEN CE990 KVM extender
- Transmitter and Receiver
- Wired Maximum possible transmission distance: 10000 m.
- Resolution (maximum, digital) 4096 x 2160 pixels
- Material: Metallic
- Transmitter video connector type:DisplayPort Transmitter local keyboard/mouse connector type: USB
- Receiver local video connection type: DisplayPort receiver local keyboard/mouse connection type: USB
- PC audio input PC audio output
- Power consumption (Transmitter): 11.89 W Power consumption (Receiver): Max. 9.49 W.
- Black
Technical specifications
- Product type
KVM extender
- No. of switchable PCs
1 pc(s)
- Video via
DisplayPort
- Video resolution
4096 x 2160 Pixel
- Rack mount option
Yes
- Switch function
Hot key
- Factory colour
Black
- Weight
0.85 kg
- Length
17.82 cm
- Width
15.62 cm
- Height
2.88 cm
- Dim
(L x W x H) 17.82 x 15.62 x 2.88 cm
- Screen size diagonal (inches)
1 inch
- No. of USB A 2.0 ports
4 x
- Keyboard layout
German, QWERTZ
- Material
Metal
- Type
Transmitter and Receiver
- Transfer type
Corded
- UKCA
yes
- Operating temperature (T-T)
0 - 40 °C
- AC adapter included
yes
- Master (outer) case gross weight
4.13 kg
- Power consumption (receiver) (max)
9.49 W
- Power consumption (transmitter) (max)
11.89 W
- RJ-45 ports quantity (receiver)
1
- RJ-45 ports quantity (transmitter)
1
- Transmitter local video port
yes
- Master (outer) case length
556 mm
- Mounting bracket(s) included
yes
- PC Audio in
yes
- Manual
yes
- Master (outer) case height
153 mm
- Master (outer) case width
247 mm
- Receiver depth
17.8 cm
- Receiver height
2.88 cm
- Receiver width
15.6 cm
- Transmitter depth
17.8 cm
- Transmitter height
2.88 cm
- Transmitter width
15.6 cm
- Rack mounting
yes
- Receiver weight
840 g
- Maximum digital resolution
4096 x 2160 p
- PC Audio out
yes
- Operating relative humidity (H-H)
0 - 80 %
- Storage temperature (T-T)
-20 - 60 °C
- Package weight
3.56 kg
- Transmitter weight
850 g
- Maximum transfer distance
10000 m
Documents & Downloads
Datasheet
Datasheet 3628748 ATEN CE990 KVM extender DisplayPort 4096 x 2160 Pixel
User & Safety Instructions
User & Safety Instructions 3628748 ATEN CE990 KVM extender DisplayPort 4096 x 2160 Pixel
Description

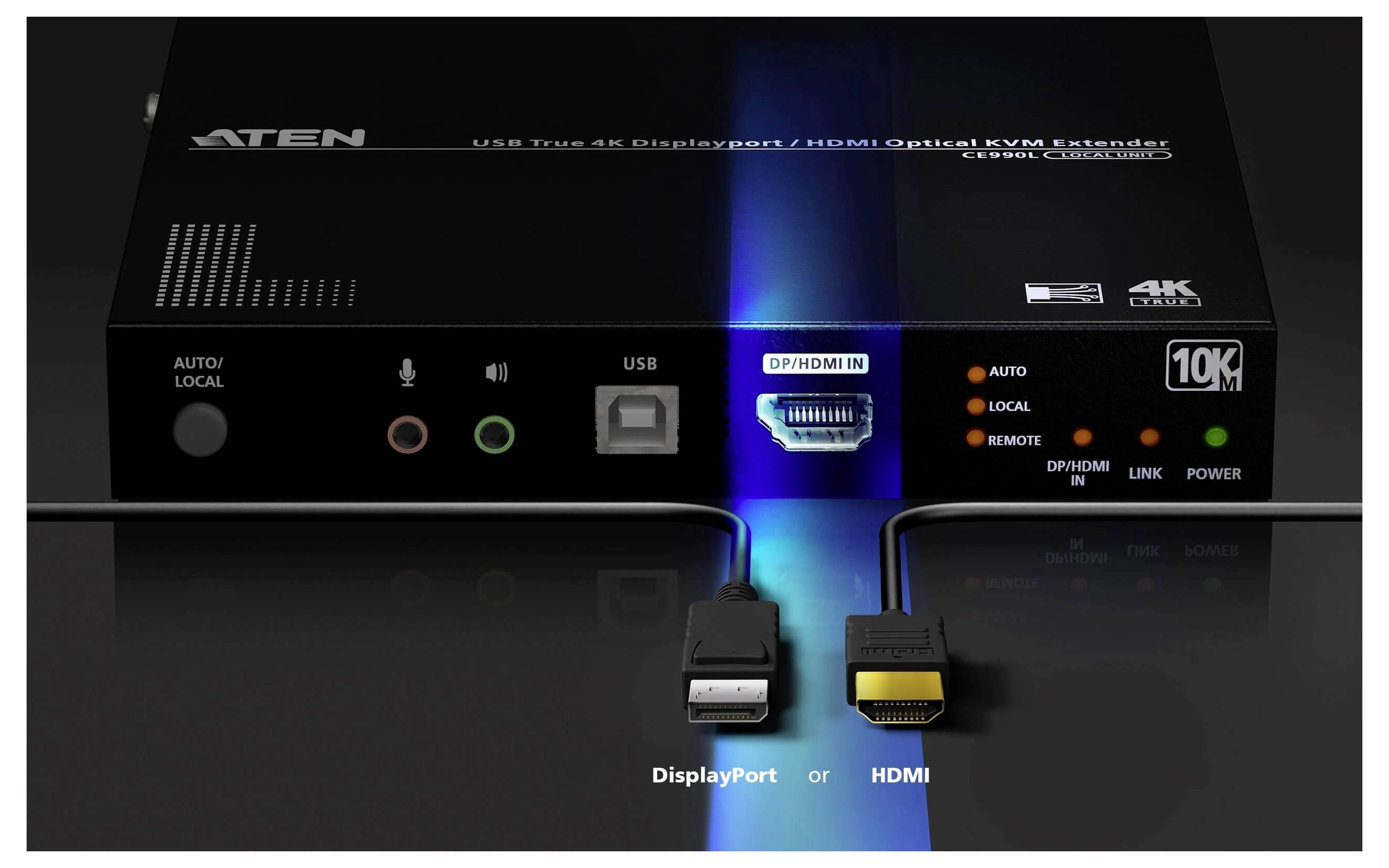

Long-distance precision for critical infrastructures Overcome extreme distances without signal loss with the ATEN CE990. Designed specifically for demanding environments such as air traffic control, energy providers, or large production equipment, this Optical KVM Extender transmits true 4K video, audio and control signals up to 10 kilometers over a single fiber line. The innovative DisplayPort/HDMI combo connector gives you maximum flexibility in selecting your monitors from local and remote locations. Get trouble-free, EMI-resistant transmission and full control over your servers, even if they are miles away in a secure data center.
