ATEN CL5716M-ATA-XG KVM console 1920 x 1200 Pixel
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
ATEN CL5716M-ATA-XG KVM console

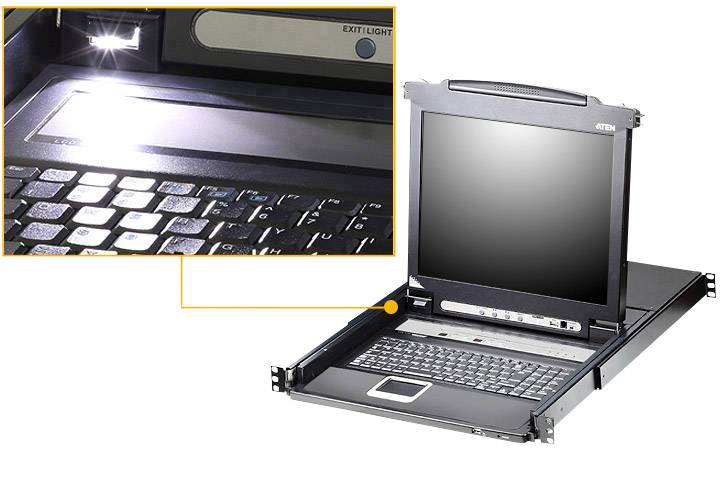

- Exclusive LED lighting - developed by Aten for illumination of the keyboard And touch pad for visibility in low light
- Integrated KVM console with 17-inch LCD screen with LED backlight in Slideaway™ design
- Daisy-chain up to 31 additional devices and control 512 computers from a single console (for compatible KVM switches: ACS1208A, ACS1216A, CS1708A,CS1716A)
- The USB port of the LCD module gives access to the individual computers Connected USB devices
- This text is machine translated.
Technical specifications
- CL5716M 17" LCD
- Product type
KVM console
- No. of switchable PCs
16
- Video resolution
1920 x 1200 Pixel
- No. of USB 2.0 ports
1 x
- Stackable
Yes
- Rack mount option
Yes
- Switch function
Key
- Power supply (LOV)
mains-powered
- Factory colour
Black
- Weight
13.59 kg
- Length
48 cm
- Width
64.27 cm
- Height
4.4 cm
- Dim
(L x W x H) 48 x 64.27 x 4.4 cm
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 1879799 ATEN CL5716M-ATA-XG KVM console 1920 x 1200 Pixel
User & Safety Instructions
User & Safety Instructions 1879799 ATEN CL5716M-ATA-XG KVM console 1920 x 1200 Pixel
Description
Features
- Maximum resolution: 1280 x 1024 pixels
- Keyboard Port type: USB, PS/2
- Mouse Port type: USB, PS/2
- Video Port type: VGA
- Scanning interval: 1.255 s
- Product color: Black
- Rack capacity: 1U
- Material: Metal, plastic
- Display: LCD
- Screen size: 43.2 cm (17 inch).
Scope of delivery
- 1 x CL5716 LCD KVM switch with standard rack mounting kit
- 2 x 2L-5202U KVM cable USB (1.8m)
- 1 x LIN5-27X6-U21G 5-in-1 USB / PS/2 console cable
- 1 x LIN5-04A2-J11G firmware upgrade cable
- 1 x LIN2-418K-E12G power cable (for mains powered models)
- 1 x user manual
