ATEN CS1716A-AT-G KVM changeover switch VGA USB, PS/2 2048 x 1536 Pixel
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details

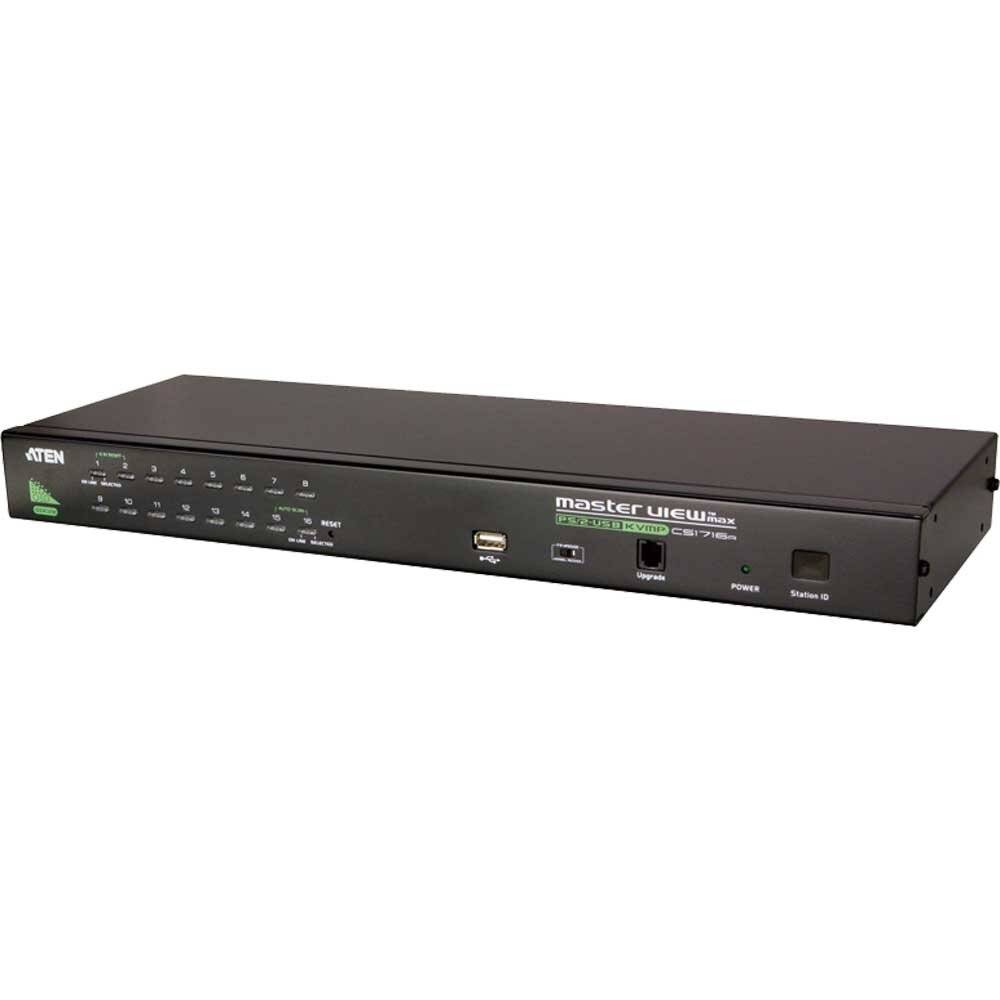

ATEN CS1716A-AT-G KVM changeover switch

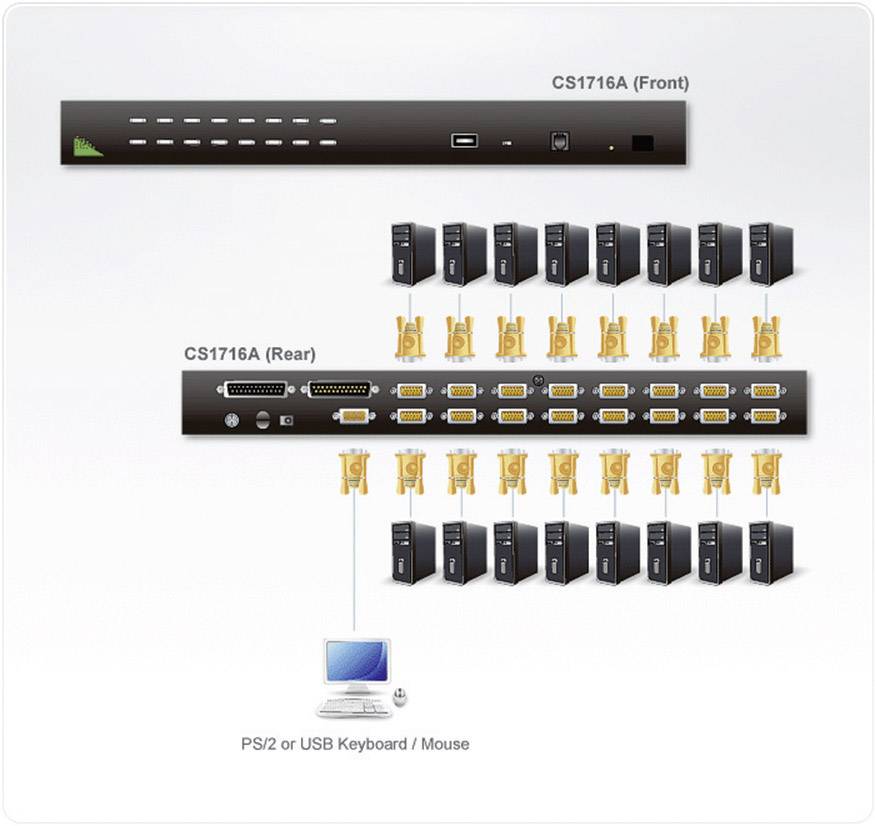

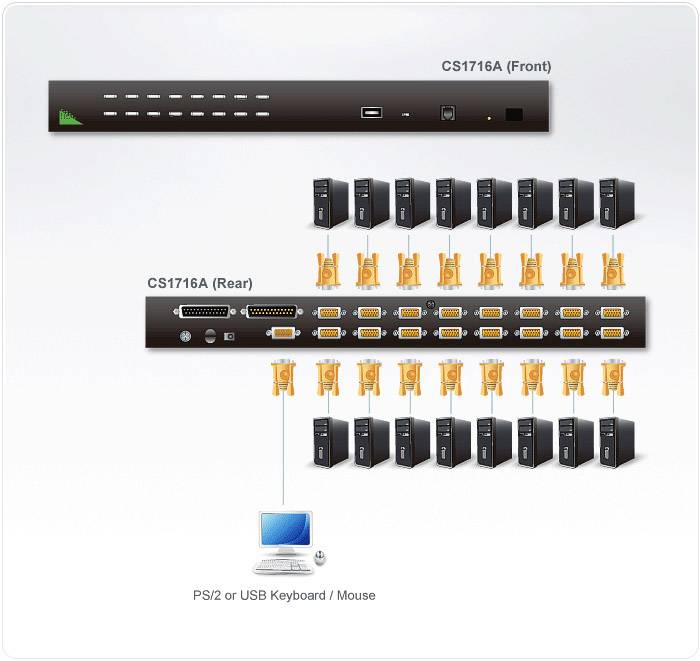

- A USB PS/2 console controls up to 16 computers
- Daisy-chain up to 31 additional devices and control 512 computers from a single console
- Maximum resolution: Up to 2048 x 1536 pixels
- Password protection at two levels - only authorized users can see and control the computers - up to four users plus one administrator, with their own profiles for each
- This text is machine translated.
Technical specifications
- Maximum resolution: 2048 x 1536 pixels
- Video port type: VGA
- Scanning interval 255 s.
- Product color: Black
- Rack capacity: 1U
- Material: Metallic
- Power consumption (typical): 6.6 W.
- Product type
KVM changeover switch
- No. of switchable PCs
16
- Video via
VGA
- Video resolution
2048 x 1536 Pixel
- Controller
USB
PS/2
- Audio headphones
No
- Audio microphone
No
- No. of USB 2.0 ports
1 x
- Stackable
Yes
- Rack mount option
Yes
- Switch function
Hot key
- Power supply (LOV)
via PSU
- Factory colour
Black
- Weight
2.9 kg
- Length
44 mm
- Width
437 mm
- Height
159 mm
- Dim
(L x W x H) 44 x 437 x 159 mm
- Screen size diagonal (inches)
1 inch
- Keyboard layout
German, QWERTZ
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 1879653 ATEN CS1716A-AT-G KVM changeover switch VGA USB, PS/2 2048 x 1536 Pixel
User & Safety Instructions
User & Safety Instructions 1879653 ATEN CS1716A-AT-G KVM changeover switch VGA USB, PS/2 2048 x 1536 Pixel
Description
Features
- The front USB port gives individual computers access to connected USB devices
- Double interface - supports computers and consoles with PS/2 or USB keyboard and mouse
- Multi-platform compatible: Windows, Linux, Mac and Sun
- Video DynaSync™ - stores the EDID (Extended Display Identification Data) of the console monitors to ensure optimum image resolution always
- supports USB multimedia keyboards for PC, Mac and Sun
- Automatic detection of PS/2 or USB input devices
- USB and PS/2 keyboard and mouse emulation - the computers can be started, If the console is currently placed on a different server

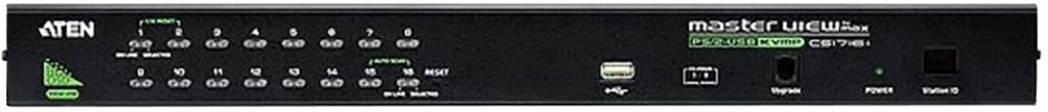

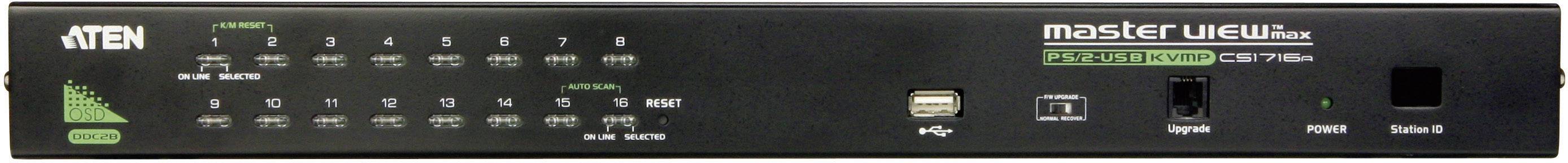

- , no software installation is required - easy switching between the computers using a switch on the front, Hotkeys and multi-lingual user guidance via OSD screen menus
- Automatic detection of the position of a station during series connection - no setting of DIP switches required - the front LED display signals the position of the station
- The port names are automatically reconfigured when you change the order of the stations.
- Automatic port switching to monitor user-defined server
- broadcast operation - simultaneous operation of all selected computers
- Hot-plugging - connect or remove new computers without switching off the switch
- Beep on/off via hotkey and OSD menu, simultaneous firmware update
- of all KVM switches in series rack mounting possible in 19-inch cabinet (1U)
Scope of delivery
- KVM-switch
- PS/2 KVM cable
- USB KVM cable
- Console cable
- Firmware upgrade cable
- Pedestal set (4 pieces)
- Power supply unit
- User manual.
