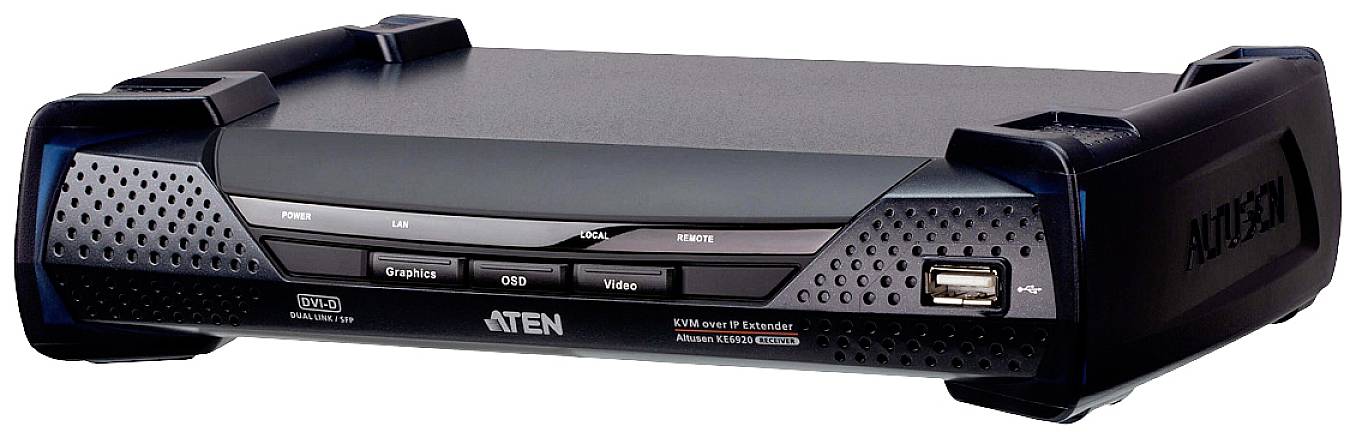

ATEN KE6920R RJ45, SFP KVM extender via RJ45 network cable, via FO cable 10 km

The KE6920 is a powerful IP-based extender that consists of a transmitter (KE6920T) and a receiver (KE6920R). The sender is connected to a computer to deliver the computer's data to the receiver to share console access from a remote or separate location. The KE6920 enables extended remote access to computer systems via USB consoles (USB keyboard, USB mouse, DVI monitor) via the intranet, allowing users to place the computer system in secure and temperature-controlled environments that may be isolated from the user's workplace. The KE6920 supports a DVI monitor at each end and offers video resolutions of up to 2560 x 2048 at 50 Hz as well as a flawless and loss-free video compression quality at extremely low latency. The KE6920 supports network connections via the RJ-45 port or the two SFP slots. The transmitter and receiver can be connected either directly or via a high-speed network via a copper-based or glass-fiber-based LAN. By connecting through the SFP slots with 1Gbps SFP Fiber Module* fiber optic extensions in the fiber network, you can extend the transmission distances up to 10 km. The KE6920 also has two power supplies for redundancy to ensure reliable services. Supports video resolutions up to 2560 x 2048 at 50 Hz, including resolutions of 2560 x 1600 at 60 Hz and 2048 x 2048 at 60 Hz authentication lock – automatically logs on, When the system resumes power after power is turned off, link redundancy – automatically connects to another transmitter (Tx) after disconnection from the original Tx to ensure continuous access to the servers supports power/network failover - two DC sockets for power redundancy and 1 RJ45 & 2 SFP fiber ports for network failover, To ensure consistent availability for mission-critical applications
