Name: ATEN KE8952-AX HDMI™, USB, RS232, Audio line out, Microphone input Extension via RJ45 network cable, via FO cable 10 km
Brand: ATEN
SKU: 1879818

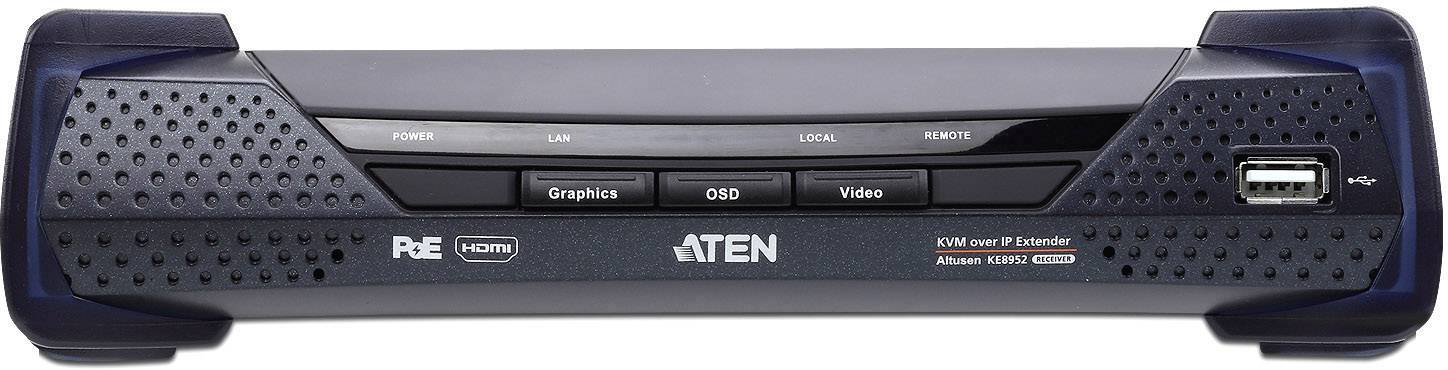

A black HDMI KVM over IP extender with multiple ports and buttons on the front panel, including HDMI, USB, and audio connections.

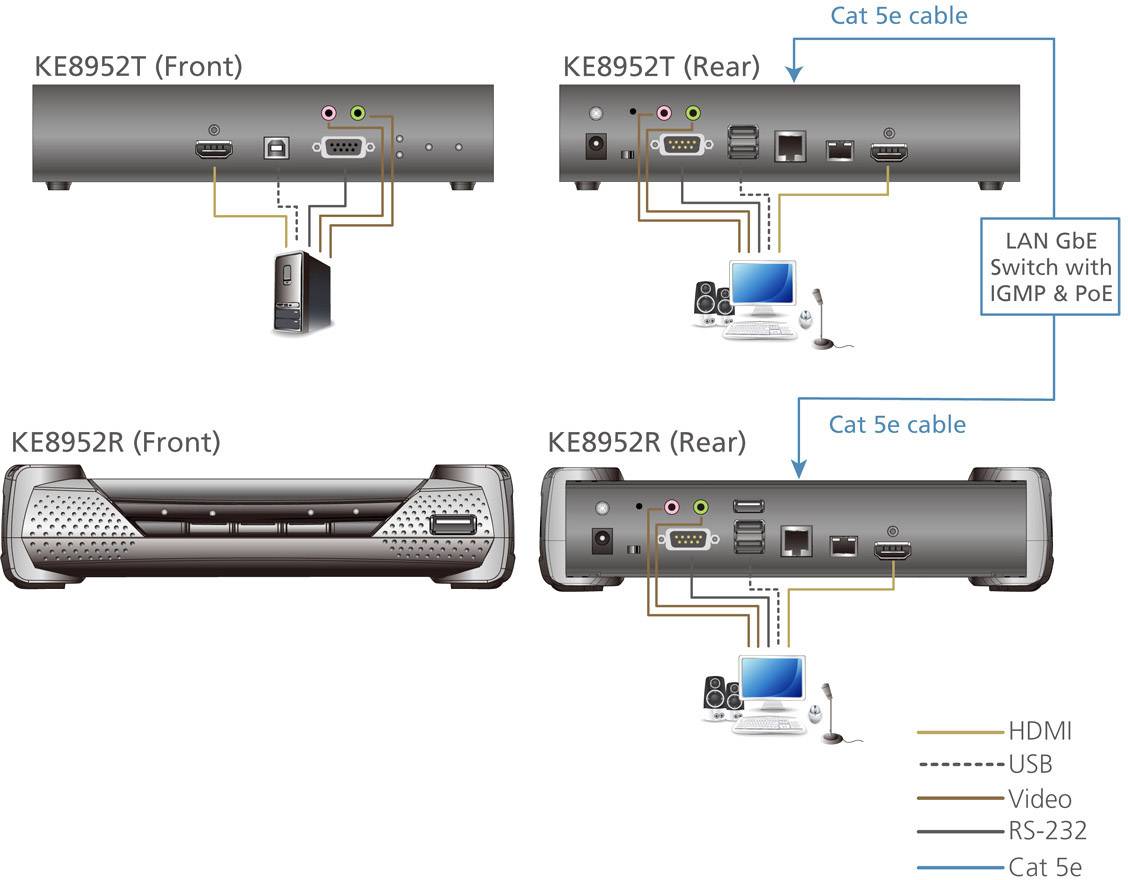

'Wiring Diagram for KE8952T/KE8952R: Shows HDMI, USB, Video, RS-232 and Cat 5e Connections between Devices.'

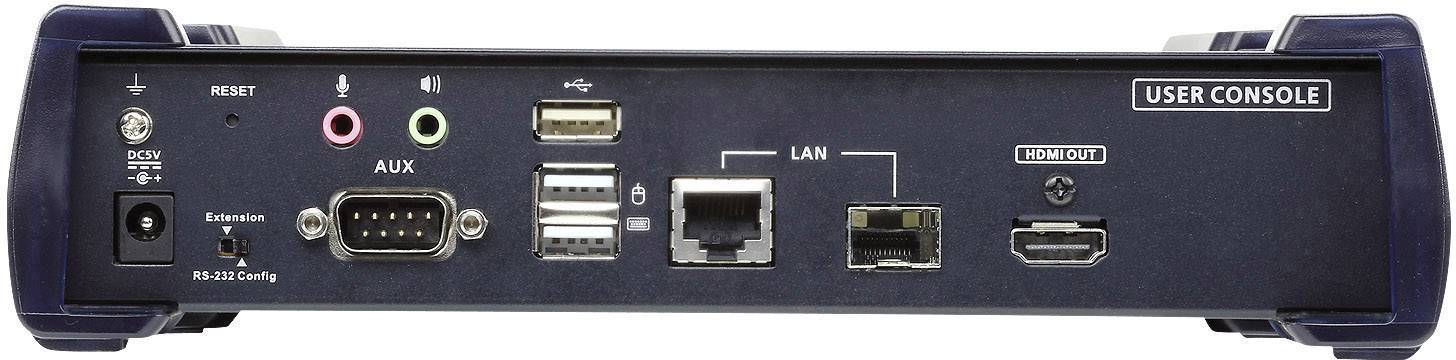

Back of an electronic device with connections: Power, Reset, two USB ports, AUX, LAN Ethernet, HDMI output, and serial interface.

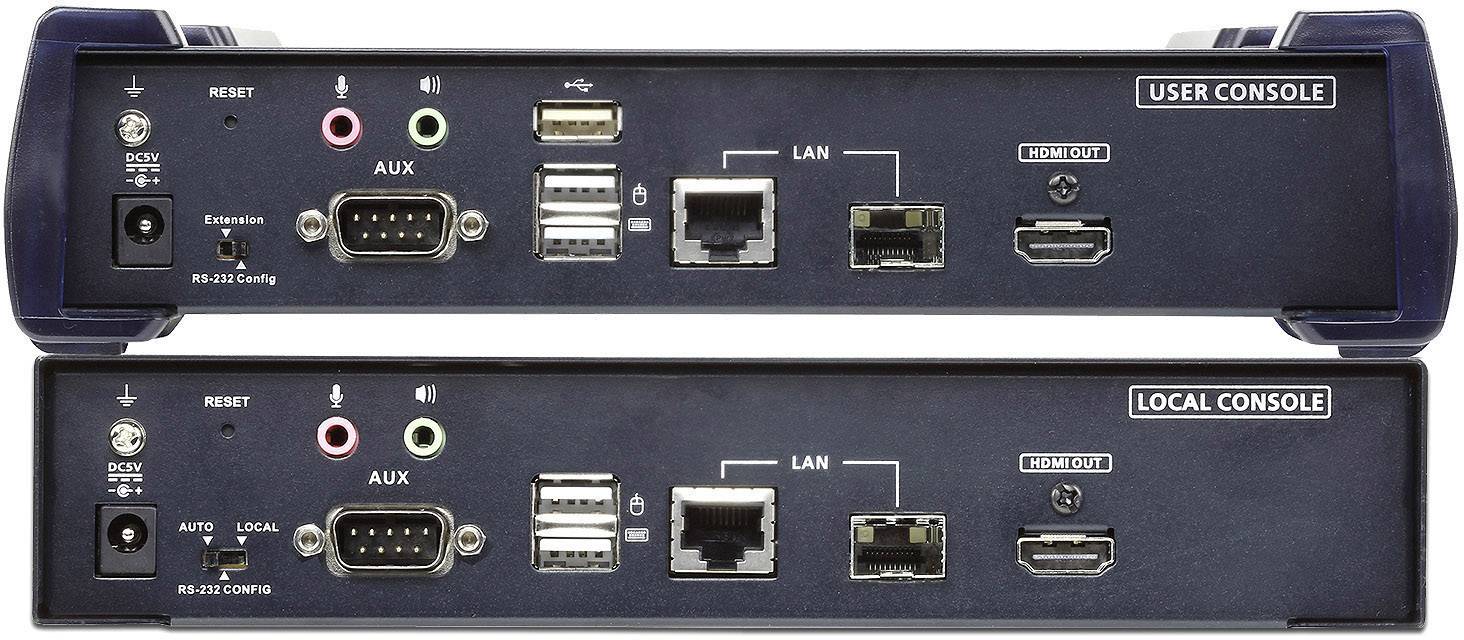

Two electronic devices with multiple ports such as USB, LAN, HDMI and AUX. Top 'USER CONSOLE', bottom 'LOCAL CONSOLE'.

1/5

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

ATEN KE8952 transmitter and receiver KVM extender

Ultra High Definition (UHD) video quality – up to 3840 x 2160 at 30 Hz (4:4:4); 36 bit color depth
Flexible connections - enables multiple extender and matrix connections for multi-display installations And video wall applications
Supports single-mode and multi-mode SFP module up to 10 km.
Supports power over Ethernet (PoE) function – compliant with the IEEE 802.3at and IEEE 802.3af standards
This text is machine translated.

Technical specifications

Type: Transmitter and receiver
Transmission technology: Wired
Resolution (maximum, digital): 3840 x 2160 pixels
Transmitter video connector type HDMI
Local keyboard/mouse port type transmitter: USB
Local video connector type receiver: HDMI
Receiver local keyboard/mouse connector type: USB
Power consumption (transmitter) (max.): 7.22 W
Power consumption (receiver) (max.): 5.65 W.

Product type: Extension

Transfer type: via RJ45 network cable
via FO cable

Interfaces (input): HDMI™
USB
RS232
Audio line out
Microphone input

Interfaces (output): HDMI™
USB
RS232
Audio line out
Microphone input

Resolution (max.): 3840 x 2160 p

Range (max.): 10 km

Factory colour: Black

Weight: 2.39 kg

Length: 21.50 cm

Width: 16.29 cm

Height: 4.18 cm

Dim: (L x W x H) 21.50 x 16.29 x 4.18 cm

UKCA: yes

Variants(All information is without VAT, plus shipping costs)

Resolution (max.)

Interfaces (input)

Range (max.)

Interfaces (output)

ATEN KE8952-AX HDMI™, USB, RS232, Audio line out, Microphone input Extension via RJ45 network cable, via FO cable 10 km

Item no:1879818

Unavailable

Conrad Electronic

This article

3840 x 2160 p

HDMI™

10 km

HDMI™

Piece(s)

Minimum order quantity: 1

Multiple: 1

ATEN CE620-AT-G DVI, USB, RS232, Audio line out, Microphone input via RJ45 network cable 100 m

Item no:1879790

Unavailable

Conrad Electronic

1920 x 1200 p

DVI

100 m

DVI

Piece(s)

Minimum order quantity: 1

Multiple: 1

ATEN CE624-AT-G DVI, USB, RS232, Audio line out, Microphone input Extension via RJ45 network cable 150 m

Item no:1879634

Unavailable

Conrad Electronic

1920 x 1200 p

DVI

150 m

DVI

Piece(s)

Minimum order quantity: 1

Multiple: 1

ATEN CE690-AT-G DVI, USB Extension via FO cable 20 km

Item no:1879791

Unavailable

Conrad Electronic

1920 x 1200 p

DVI

20 km

DVI

Piece(s)

Minimum order quantity: 1

Multiple: 1

ATEN KE6900-AX-G DVI, USB, RS232, Audio line out, Microphone input via RJ45 network cable 100 m

Item no:1879687

Unavailable

Conrad Electronic

1920 x 1200 p

DVI

100 m

DVI

Piece(s)

Minimum order quantity: 1

Multiple: 1

ATEN KE6940-AX-G DVI, USB, RS232, Audio line out, Microphone input via RJ45 network cable 100 m

Item no:1879690

Unavailable

Conrad Electronic

1920 x 1200 p

DVI

100 m

DVI

Piece(s)

Minimum order quantity: 1

Multiple: 1

ATEN KE8950R-AX-G RS232 Extension via RJ45 network cable, via FO cable 10 km

Item no:1879694

Unavailable

Conrad Electronic

3840 x 2160 p

RS232

10 km

HDMI™

Piece(s)

Minimum order quantity: 1

Multiple: 1

ATEN KE8950T-AX-G HDMI™, USB, Audio line out, Microphone input, RS232 Extension via RJ45 network cable, via FO cable 10 km

Item no:1879695

Unavailable

Conrad Electronic

3840 x 2160 p

HDMI™

10 km

Piece(s)

Minimum order quantity: 1

Multiple: 1

ATEN KE8952R-AX RS232 Extension via RJ45 network cable 10 km

Item no:1879819

Unavailable

Conrad Electronic

3840 x 2160 p

RS232

10 km

HDMI™

Piece(s)

Minimum order quantity: 1

Multiple: 1

ATEN KE8952T-AX HDMI™, USB, Audio line out, Microphone input, RS232 Extension via RJ45 network cable 10 km

Item no:1879820

Unavailable

Conrad Electronic

3840 x 2160 p

HDMI™

10 km

Piece(s)

Minimum order quantity: 1

Multiple: 1

Documents & Downloads

Datasheet

Datasheet 1879818 ATEN KE8952-AX HDMI™, USB, RS232, Audio line out, Microphone input Extension via RJ45 network cable, via FO cable 10 km

User & Safety Instructions

User & Safety Instructions 1879818 ATEN KE8952-AX HDMI™, USB, RS232, Audio line out, Microphone input Extension via RJ45 network cable, via FO cable 10 km

Scope of delivery

1x KE8952T 4K HDMI single display KVM over IP transmitter with PoE
1x KE8952R 4K HDMI single display KVM over IP receiver with PoE
1x LIN5-28V2-V11G KVM cable (HDMI, USB, audio
1.8 m/6 ft)
2x 0X12-0017-700G HDMI LockPro
1x base set
1x mounting kit for KE8952T
1x User Guide

Description

Scope of delivery

1x KE8952T 4K HDMI single display KVM over IP transmitter with PoE
1x KE8952R 4K HDMI single display KVM over IP receiver with PoE
1x LIN5-28V2-V11G KVM cable (HDMI, USB, audio
1.8 m/6 ft)
2x 0X12-0017-700G HDMI LockPro
1x base set
1x mounting kit for KE8952T
1x User Guide
