Name: ATEN VE170-AT-G VGA, Jack connector Extension via RJ45 network cable 300 m
Brand: ATEN
SKU: 1879851

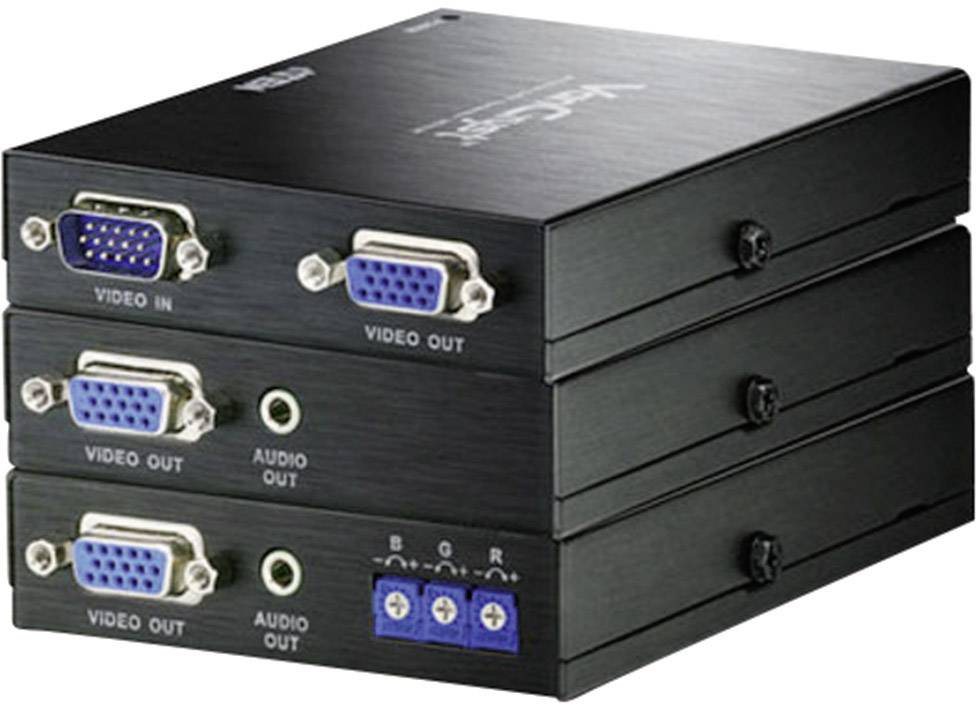

Three stacked video converters with VGA inputs and outputs, along with audio ports.

Diagram of a transmission unit: On the left, 'Transmitter' with inputs for VGA and USB, on the right, 'Receiver' with outputs for VGA and USB. Connected by Cat 5e cable (300m).

1/2

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

ATEN VE170-AT-G VGA, Jack connector Extension via RJ45 network cable 300 m

Used for connection of the transmitter and the receiver ethernet cable CAT 5e
Large transmission paths up to 300 m
Signal compensation (VE170RQ) - enables you by different cable lengths related run-time differences of the RGB signals to compensate for

Technical specifications

Product type: Extension

Transfer type: via RJ45 network cable

Interfaces (input): VGA
Jack connector

Interfaces (output): VGA
Jack connector

Range (max.): 300 m

Factory colour: Black

Weight: 1.125

Cable length: 300 m

Version: Cable extension

Screen size diagonal (inches): 1 inch

Keyboard layout: German, QWERTZ

Cable use: Networks

Connections: RJ45 connector

Connection type: VGA

UKCA: yes

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 1879851 ATEN VE170-AT-G VGA, Jack connector Extension via RJ45 network cable 300 m

Description

The A/V-extension over CAT. 5 VE170 consists of the transmission unit VE 170 T and the receiver VE170R or 70 RQ and is a cost-effective and efficient solution for the transmission of high-quality video and audio signals. Simply connect both devices via standard CAT5 network cable, and set the screens up to 300 m away from the transmission unit or signal source. The Receiver VE170R and VE170RQ are also to the A/V over Cat5 Graphics fragments of conversations compatible.

The model VE170RQ supports the ATEN patented signal compensation that a manual synchronization of the RGB signal enables and Distance related color distortion due to run-time errors compensated.

This text is machine translated.

Features

Outstanding image quality-VE170R: 1920 x 1200 at 60 Hz (30 m); 1600 x 1200 at 60 Hz (150 m); 1024 x 768 at 60 Hz (300 m) VE170RQ: 1920 x 1200 at 60 Hz (150 m); 1280 x 1024 at 60 Hz (300 m)

Scope of delivery

VE 170 T
VE170R
VGA/audio cable (1.8 m)
2 x 0 AD 6-1605-09EC Power Supplies
Mounting kit (2 pcs.)
User manual.

Description

Features

Outstanding image quality-VE170R: 1920 x 1200 at 60 Hz (30 m); 1600 x 1200 at 60 Hz (150 m); 1024 x 768 at 60 Hz (300 m) VE170RQ: 1920 x 1200 at 60 Hz (150 m); 1280 x 1024 at 60 Hz (300 m)
