ATEN VE170Q-AT-G VGA, Jack connector Extension via RJ45 network cable 300 m
EAN:
Part number:
Item no:
Highlights & Details
ATEN VE170Q VGA/Audio Cat 5 extender (1024 x 768 @ 300 m)

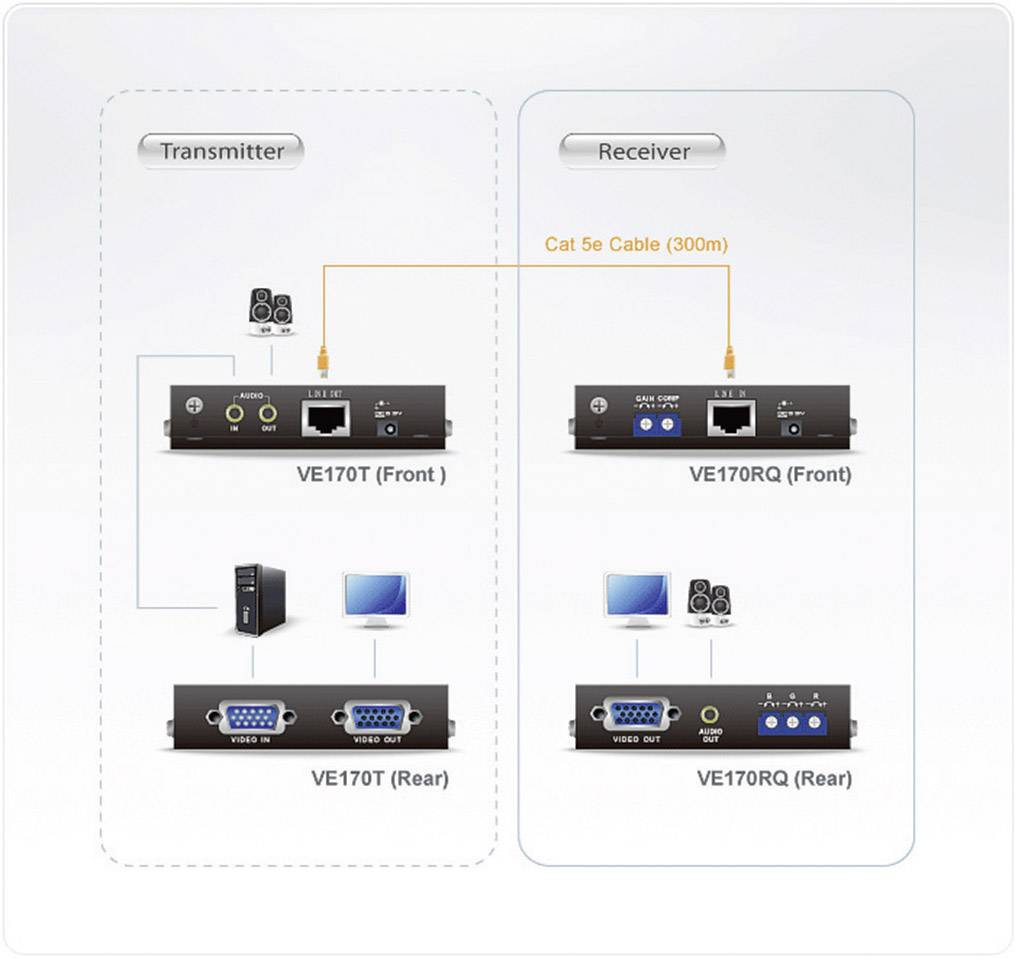

- Used for connection of the transmitter and the receiver ethernet cable CAT 5e
- Large transmission paths up to 300 m
- Signal compensation (VE170RQ) - enables you by different cable lengths related run-time differences of the RGB signals to compensate for
Technical specifications
- Product type
Extension
- Transfer type
via RJ45 network cable
- Interfaces (input)
VGA
Jack connector
- Interfaces (output)
VGA
Jack connector
- Range (max.)
300 m
- Factory colour
Black
- Weight
1.144
- Cable length
300 m
- Version
Cable extension
- Cable use
Networks
- Connections
RJ45 connector
- Connection type
VGA
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1879723 ATEN VE170Q-AT-G VGA, Jack connector Extension via RJ45 network cable 300 m
Description
The A/V-extension over CAT. 5 VE170 consists of the transmission unit VE 170 T and the receiver VE170R or 70 RQ and is a cost-effective and efficient solution for the transmission of high-quality video and audio signals. Simply connect both devices via standard CAT5 network cable, and set the screens up to 300 m away from the transmission unit or signal source. The Receiver VE170R and VE170RQ are also to the A/V over Cat5 Graphics fragments of conversations compatible.
The model VE170RQ supports the ATEN patented signal compensation that a manual synchronization of the RGB signal enables and Distance related color distortion due to run-time errors compensated.
This text is machine translated.
The model VE170RQ supports the ATEN patented signal compensation that a manual synchronization of the RGB signal enables and Distance related color distortion due to run-time errors compensated.
This text is machine translated.
Features
- Outstanding image quality-VE170R: 1920 x 1200 at 60 Hz (30 m); 1600 x 1200 at 60 Hz (150 m); 1024 x 768 at 60 Hz (300 m) VE170RQ: 1920 x 1200 at 60 Hz (150 m); 1280 x 1024 at 60 Hz (300 m)
Scope of delivery
- VE 170 T
- VE170RQ
- VGA/audio cable (1.8 m)
- 2 x 0 AD 6-1605-09EC Power Supplies
- Mounting kit (2 pcs.)
- User manual.
