ATEN VE1843 KVM switch IP module HDMI, VGA 4096 x 2160 Pixel
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details

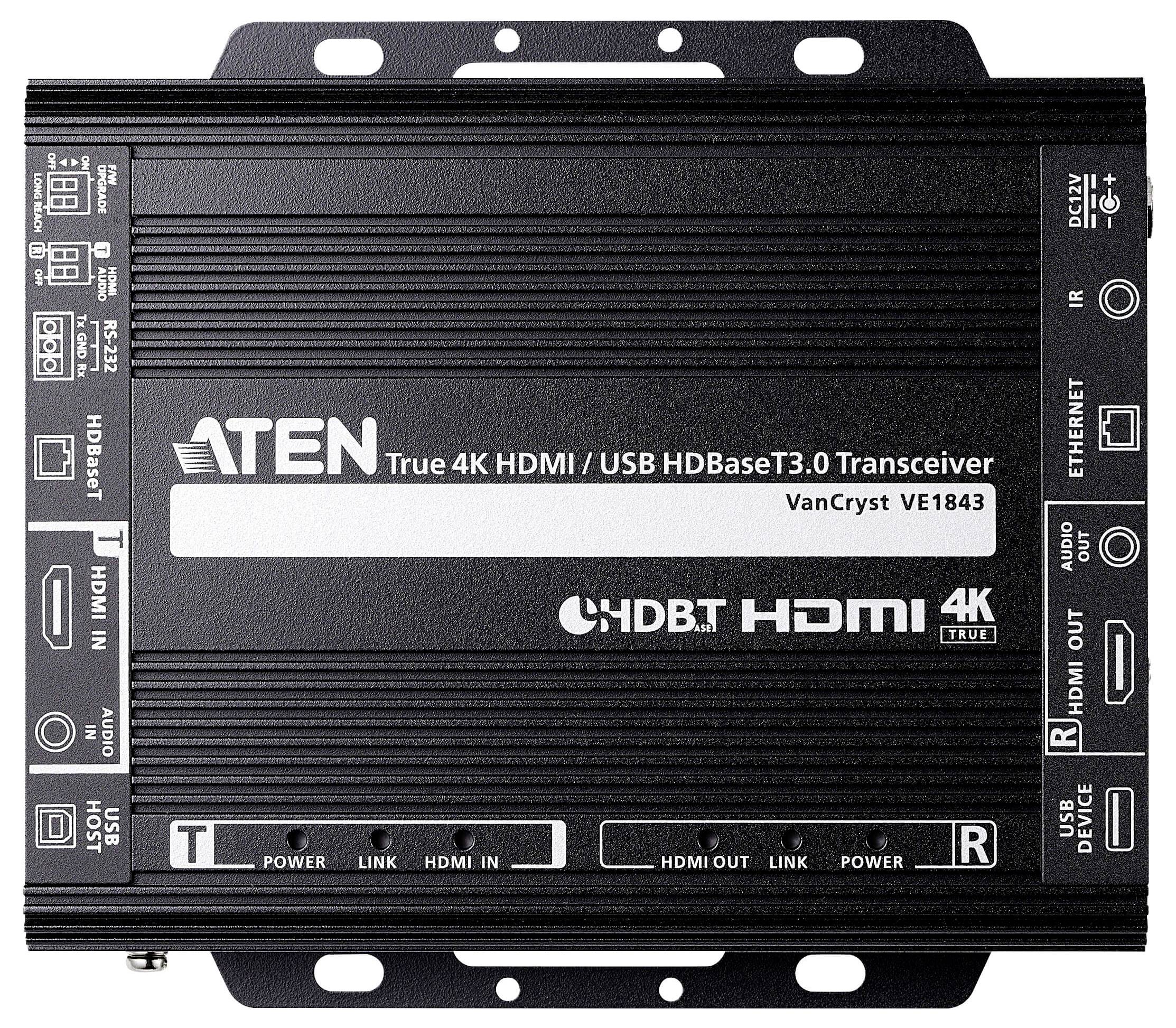

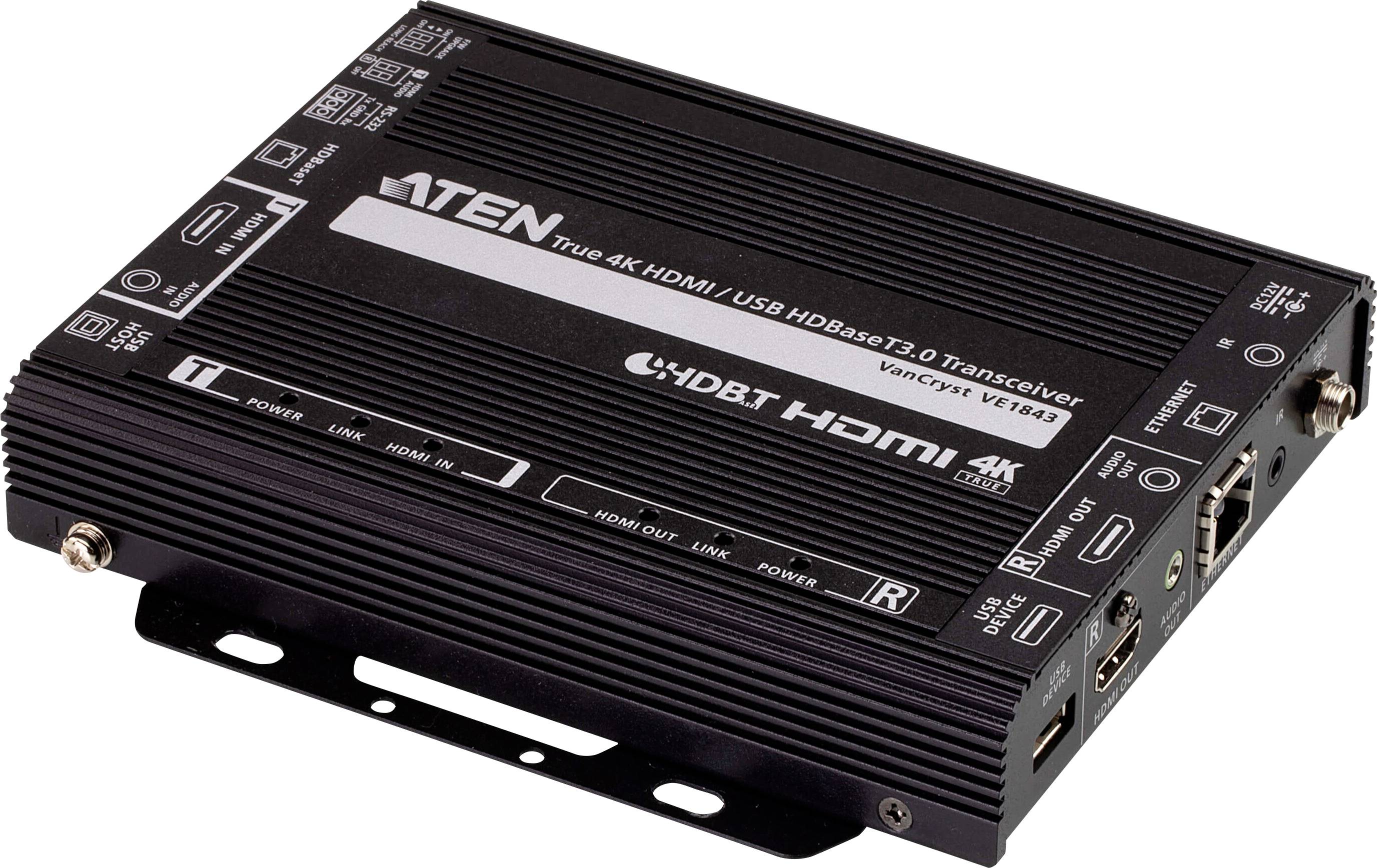

ATEN VE1843 KVM switch IP module

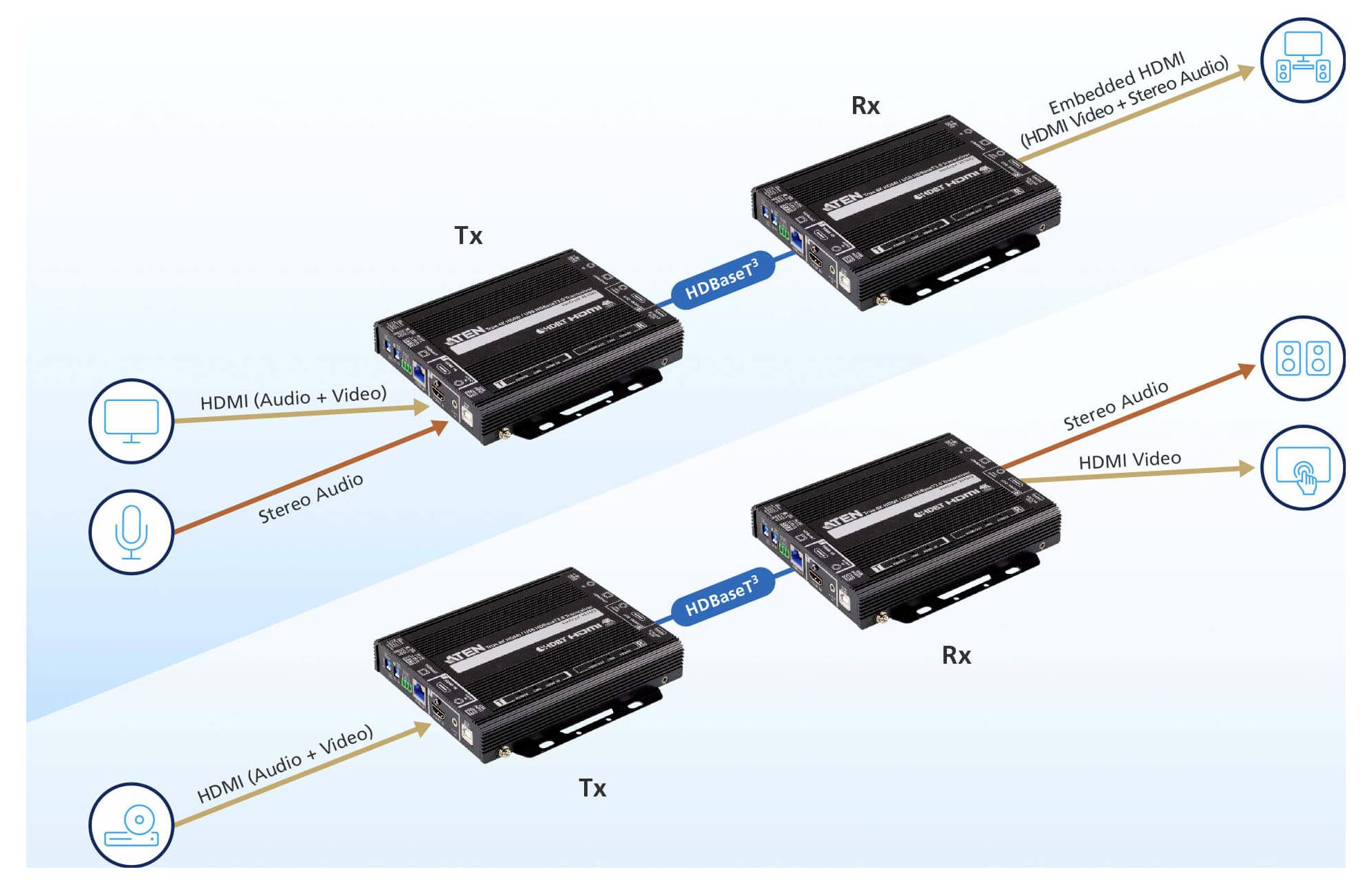

- AV-transmitter & receiver 4096 x 2160 pixels black
- Maximum possible transmission range: 5 m.
- 60 Hz
- HDCP
- In-line direct current connection (DC)
- 6.45 W .
- This text is machine translated.
Technical specifications
- Impedance 100 Ohm
- USB-Plug USB Typ-A, USB Typ-B
- Product type
KVM switch IP module
- Video via
HDMI
VGA
- Video resolution
4096 x 2160 Pixel
- Power supply (LOV)
mains-powered
- Factory colour
Black
- Weight
640 g
- Width
171.5 mm
- Height
30 mm
- Dim
(W x H x D) 171.5 x 30 x 150.9 mm
- Depth
150.9 mm
- Display resolution
4096 x 2160 Pixel
- Frame rate
60 Hz
- No. of USB ports
2 x
- Material
Metal
- Type

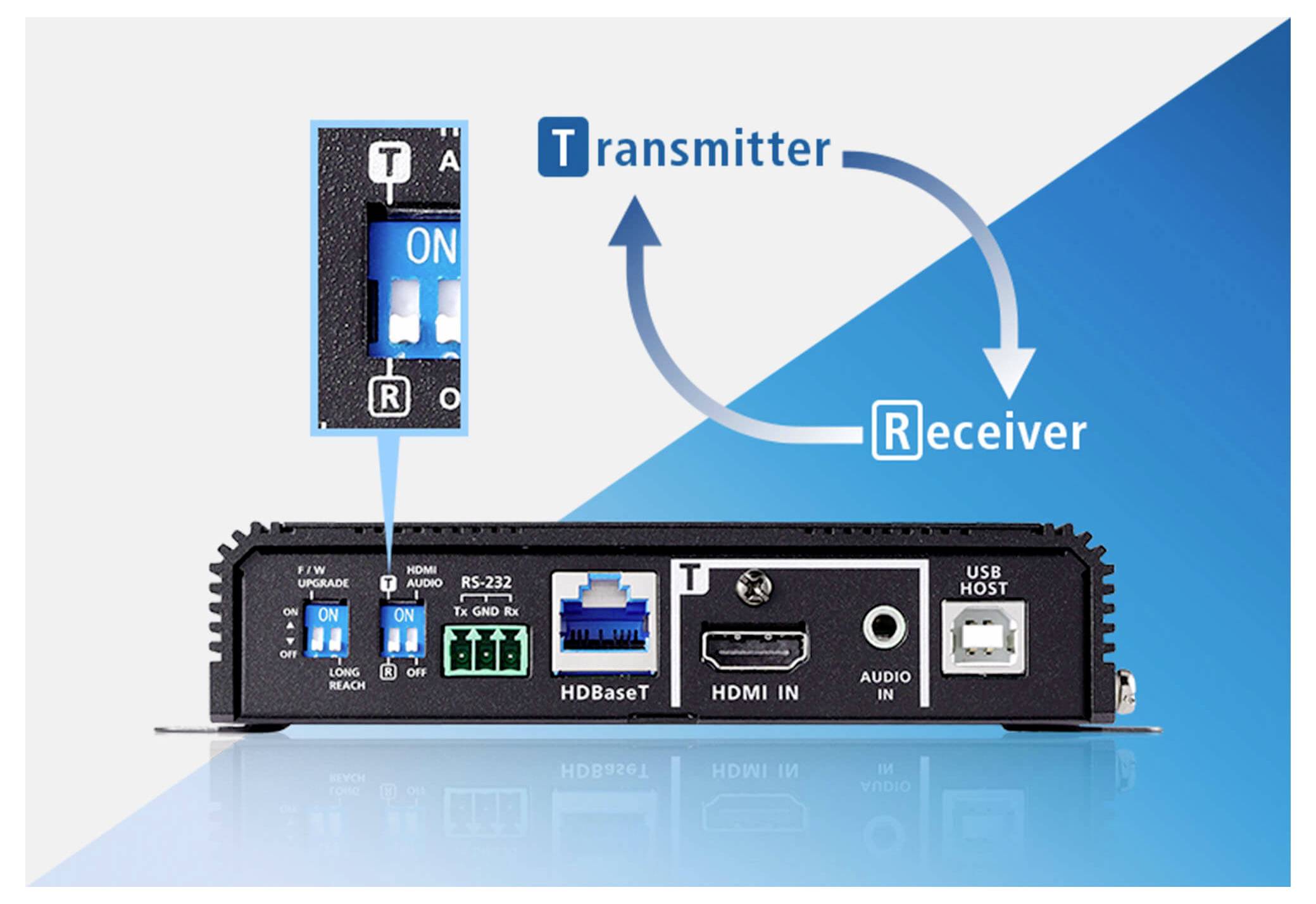

AV-transmitter & -receiver
- Power consumption (ON)
6.45 W
- Transfer type
Corded
- UKCA
yes
- Operating temperature (T-T)
0 - 40 °C
- Storage relative humidity (H-H)
0 - 80 %
- Quantity per pack
1 Stück(e)
- DC-in jack
yes
- Bandwidth
18 Gbit/s
- Firmware upgradeable
yes
- Operating voltage
12 V
- HDCP
yes
- Operating relative humidity (H-H)
0 - 80 %
- Storage temperature (T-T)
-20 - 60 °C
- 3D
yes
- HDMI in
1
- Number of HDMI outputs
1
- Maximum transfer distance
5 m
- RJ-45 input ports
1
