ATEN VE811T-AT-G HDMI™ Extension via RJ45 network cable 100 m
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details

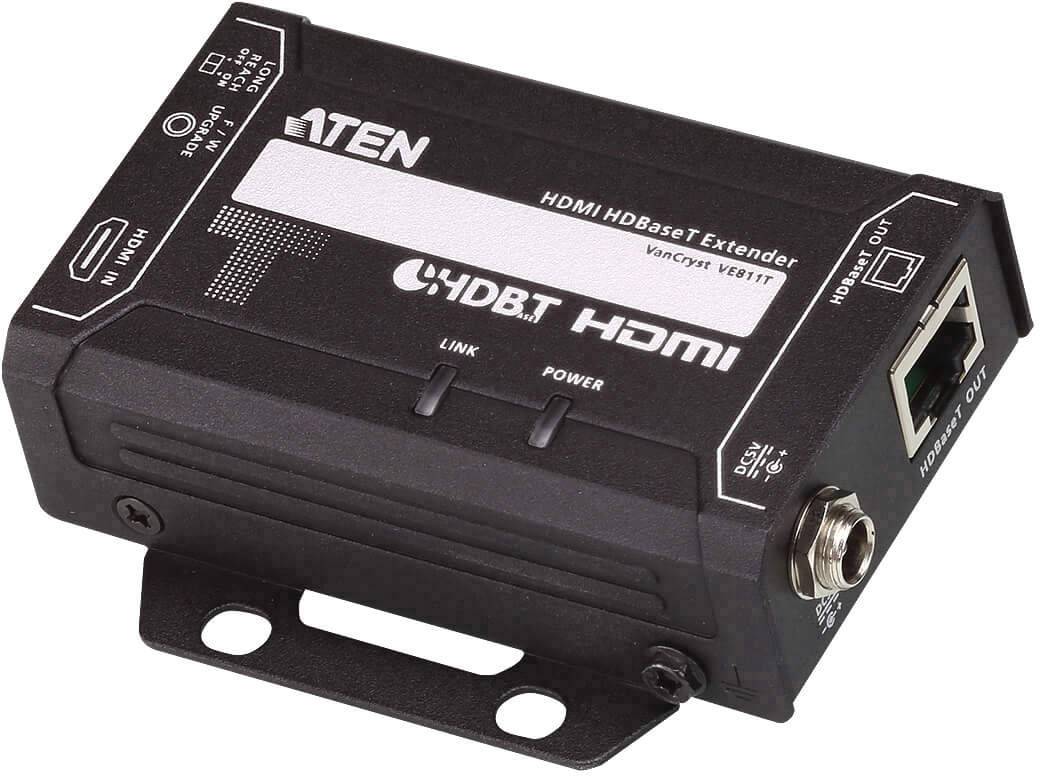

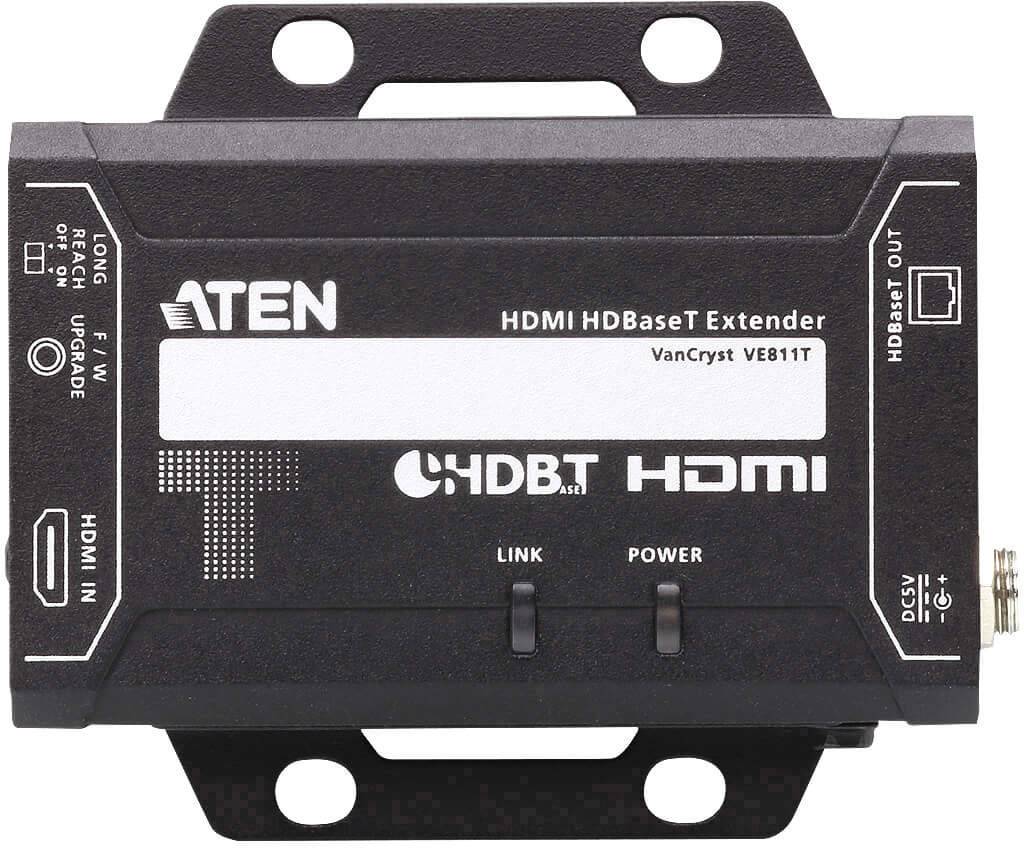

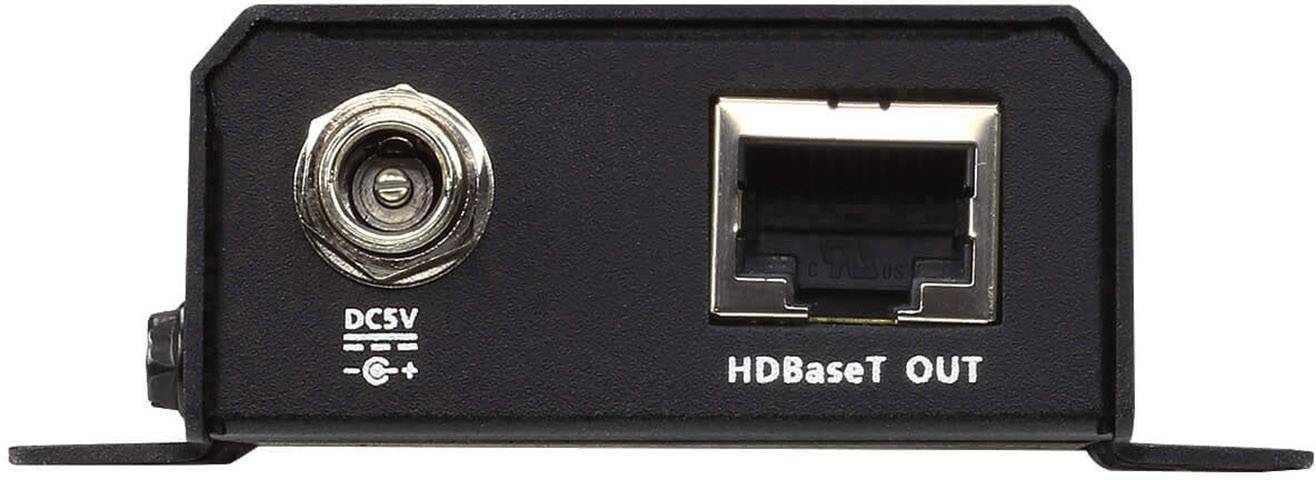

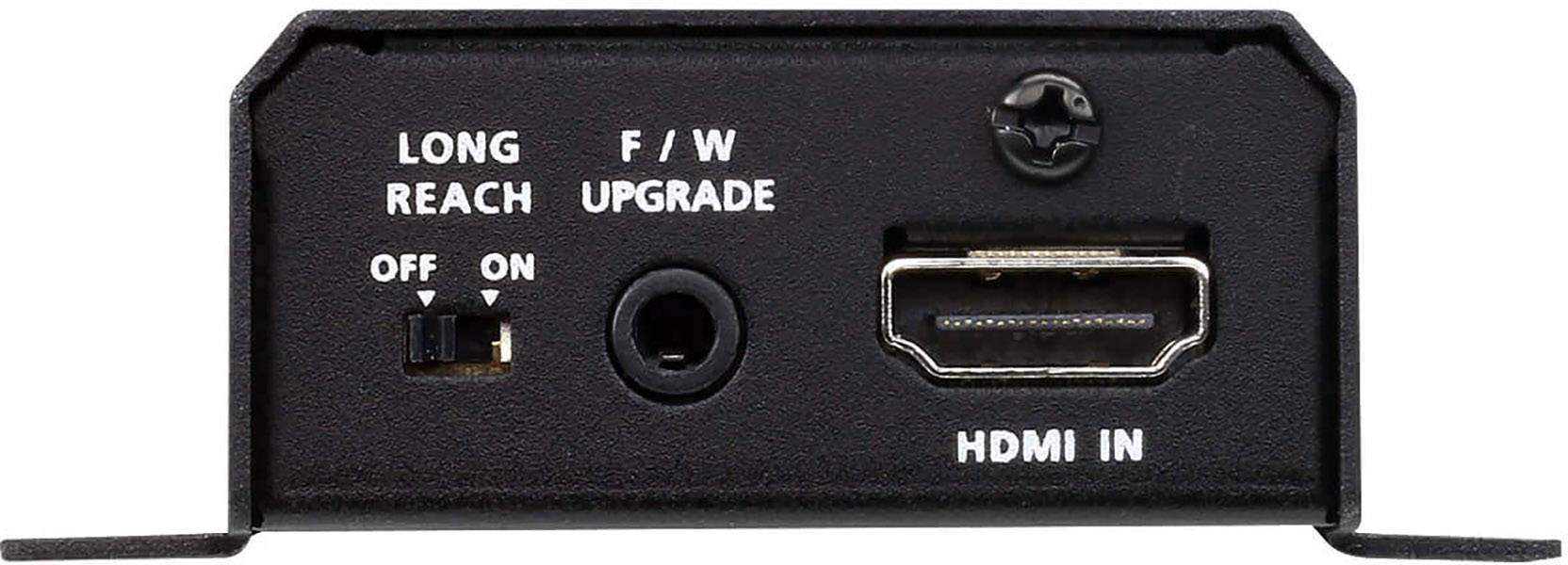

ATEN VE811T-AT-G HDMI™ Extension via RJ45 network cable 100 m
- HDBaseT connectivity – extends an HDMI connection up to 100 m. Via a single cat 5e/6/6a or Aten 2L-2910 cat 6 Cable
- HDCP 2.2 compatible
- Supports resolutions up to Ultra HD 4kx2k and 1080p Full HD
- This text is machine translated.
Technical specifications
- Type: AV transmitter
- Maximum resolution 4096 x 2160 pixels
- Supported cable types: CAT6
- Transmission technology: Wired
- Working voltage 5 V
- Power consumption (typical): 3.77 W.
- Product type
Extension
- Transfer type
via RJ45 network cable
- Interfaces (input)
HDMI™
- Resolution (max.)
4096 x 2160 p
- Range (max.)
100 m
- Factory colour
Black
- Weight
0.16 kg
- Length
8.64 cm
- Width
7.30 cm
- Height
2.47 cm
- Dim
(L x W x H) 8.64 x 7.30 x 2.47 cm
- Type A
HDMI plug
- Type B
HDMI plug
- Connection type
HDMI
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 1879859 ATEN VE811T-AT-G HDMI™ Extension via RJ45 network cable 100 m
User & Safety Instructions
User & Safety Instructions 1879859 ATEN VE811T-AT-G HDMI™ Extension via RJ45 network cable 100 m
Description
Scope of delivery
- 1x VE811T HDMI HDBaseT transmitter
- 1x 0AD6-1F05-26EG power supply
- 1x user manual
