Name: ATEN VM0404HA HDMI matrix switcher 3840 x 2160 p
Brand: ATEN
SKU: 1879866

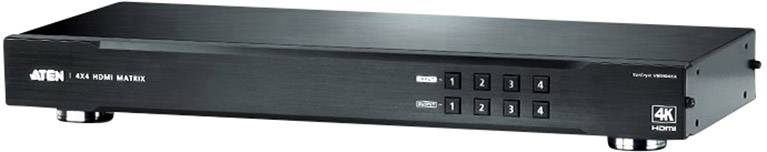

A black 4K HDMI matrix switcher with four input and four output buttons on the front panel, suitable for video distribution.

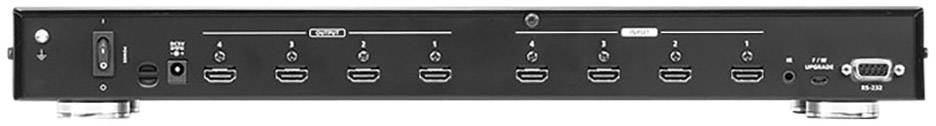

Back of an HDMI switch with multiple HDMI inputs and outputs, along with a power switch, USB and headphone ports.

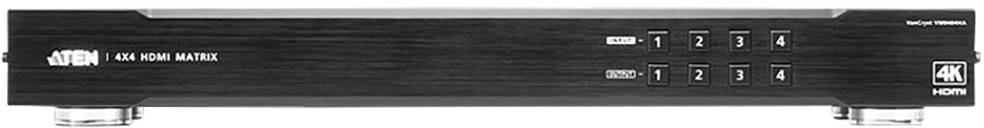

Black HDMI matrix with four input and four output buttons and 4K support. Front panel shows buttons in two rows.

1/3

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

ATEN VM0404HA HDMI video switch

Connects up to 4 HDMI sources with up to 4 HDMI-enabled display devices
Supports 4K resolutions of UHD (3840 x 2160) and DCI (4096 x 2160) With update rates of 30 Hz (4:4:4) and 60 Hz (4:2:0)
Multiple control methods - Front panel buttons, IR remote control and RS-232 control for system management
Signal rates up to 3.4 Gbits for smooth 4K output

Technical specifications

Product type: HDMI matrix switcher

Supported monitors: 4

Interfaces (input): HDMI™

Interfaces (output): HDMI™

No. of inputs: 4 x

No. of outputs: 4 x

Switch function: Key

Resolution (max.): 3840 x 2160 p

Factory colour: Black

Power supply (LOV): via PSU

Width: 43.72 cm

Height: 4.4 cm

Depth: 16.29 cm

Weight: 2.02 kg

Supported audio file formats: DTS

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 1879866 ATEN VM0404HA HDMI matrix switcher 3840 x 2160 p

User & Safety Instructions

User & Safety Instructions 1879866 ATEN VM0404HA HDMI matrix switcher 3840 x 2160 p

Description

The Aten VM0404HA 4x4 4K HDMI Matrix Switch supports 4K resolutions of UHD (3840 x 2160) and DCI (4096 x 2160) with update rates of 30 Hz (4:4:4) and 60 Hz (4:2:0). The VM0404HA is ready for the future of high-resolution video switching and ideal for applications where 4K digital signal routing is required, such as classrooms, lecture theaters, department stores and more.

The VM0404HA Matrix Switch offers a simple and economical possibility for forwarding 4 HDMI video sources to 4 HDMI monitors and can be operated via buttons on the front, IR remote control and RS-232 control, which was an optimal display and control of high-resolution video.

This text is machine translated.
