Name: ATEN VM0404HB-AT-G HDMI matrix switcher + remote control 4096 x 2160 p
Brand: ATEN
SKU: 1879867

A black 4K HDMI switch with multiple control buttons and a display on the front panel.

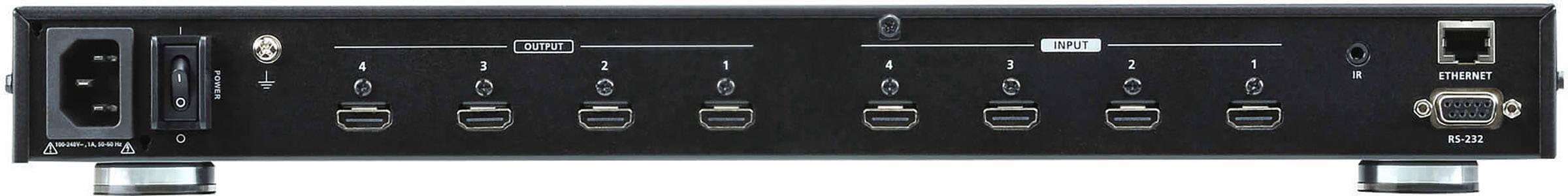

'Back of an electronic device with power connection, six HDMI ports, a network port, and a VGA port.'

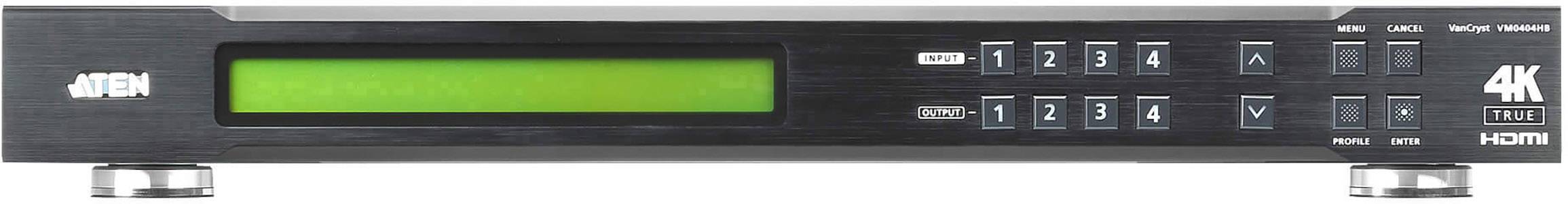

'ATEN 4K HDMI Matrix Switch' with 4 inputs, 4 outputs and a green indicator strip. Control buttons are visible at the front.

1/3

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

ATEN VM0404HB HDMI video switch

Connects up to 4 HDMI sources with up to 4 HDMI-enabled display devices
Supports True 4K video resolutions up to 4096 x 2160 in the case 60 Hz (4:4:4)
Multiple control methods – system management via front panel buttons, IR remote control, RS-232 control and Web GUI/Telnet via Ethernet connections
HDMI (3D, Deep Color, 4K) and HDCP 2.2 compatible

Technical specifications

Product type: HDMI matrix switcher

Supported monitors: 4

Interfaces (input): HDMI™

Interfaces (output): HDMI™

No. of inputs: 4 x

No. of outputs: 4 x

Switch function: Key

Resolution (max.): 4096 x 2160 p

Distributor/switch features: + remote control

Factory colour: Black

Power supply (LOV): mains-powered

Width: 43.72 cm

Height: 4.4 cm

Depth: 15.28 cm

Weight: 2.74 kg

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 1879867 ATEN VM0404HB-AT-G HDMI matrix switcher + remote control 4096 x 2160 p

User & Safety Instructions

User & Safety Instructions 1879867 ATEN VM0404HB-AT-G HDMI matrix switcher + remote control 4096 x 2160 p

Description

The Aten VM0404HB is a True 4K HDMI Matrix Switch series, which offers a simple and affordable possibility to direct one of 4 HDMI video sources to one of 4 HDMI displays. The VM0404HB has excellent video resolution of up to 4096 x 2160 at 60 Hz (4:4:4) and offers robust signal routing and ultra-fast digital video switching, making it ideal for applications requiring True 4K digital signal routing, and was designed to Such as venues, digital classrooms, auditoriums, department stores and more.

The intuitive GUI design of the VM0404HB allows the user to flexibly configure any input or output connection, eliminating the need for frequent physical configuration changes. In addition to the built-in web GUI, the VM0404HB can be operated via front panel buttons, IR remote control, RS-232 control and Telnet via Ethernet connections, providing was user-friendly and kept available at any time with video switching.

This text is machine translated.
