ATEN VM3200-AT-G HDMI matrix switcher
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
ATEN VM3200 32 x32 Modular Matrix Switch - Video/Audio/Serial Switch - Can be mounted on rack
- Connects each of the 32 video sources to one of 32 displays In combination with Aten Modular Matrix solutions
- The integrated scaler at each output converts input resolutions into the Native resolution of the monitor
- Calendar-based scheduling plays synchronized connection profiles using the real-time clock
Technical specifications
- Product type
HDMI matrix switcher
- Switch function
Key
- Factory colour
Black
- Power supply (LOV)
mains-powered
- Width
48.2 cm
- Height
39.9 cm
- Depth
47.19 cm
- Weight
18.2 kg
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 1879868 ATEN VM3200-AT-G HDMI matrix switcher
User & Safety Instructions
User & Safety Instructions 1879868 ATEN VM3200-AT-G HDMI matrix switcher
Description

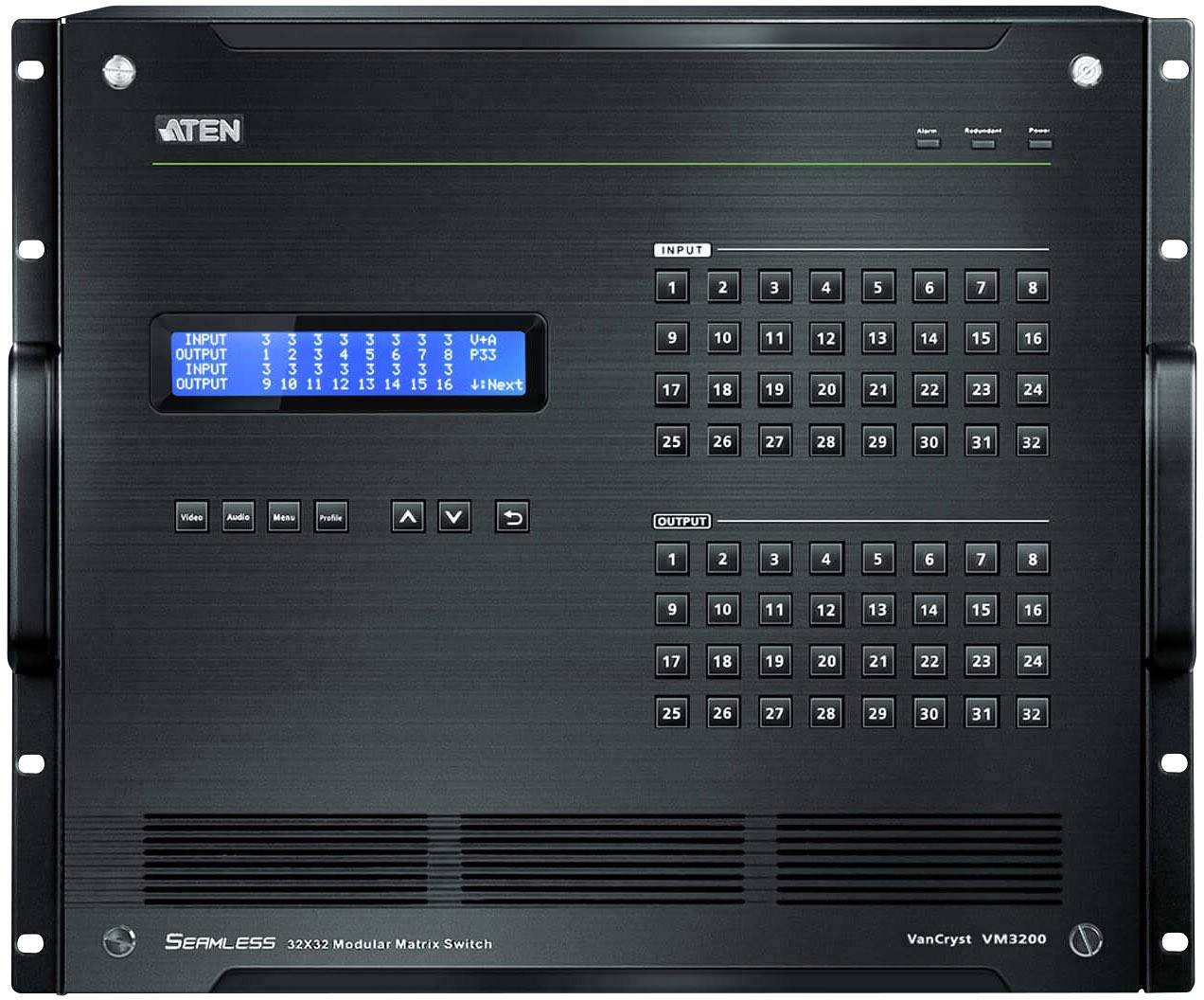

The VM3200 modular matrix switch provides extended access and real-time control of multiple local and remote A/V input devices and displays from a single chassis. The VM3200 allows you to independantly switch and forward video and/or audio content to different monitors, displays, projectors and/or speakers by simply pressing the buttons on the front panel. An integrated scaler encodes the video format for a seamless change in real time. The LCD on the front panel provides a quick overview of the active connection connections. The switch also has an option to select an EDID mode, which offers the best resolution via different monitors.

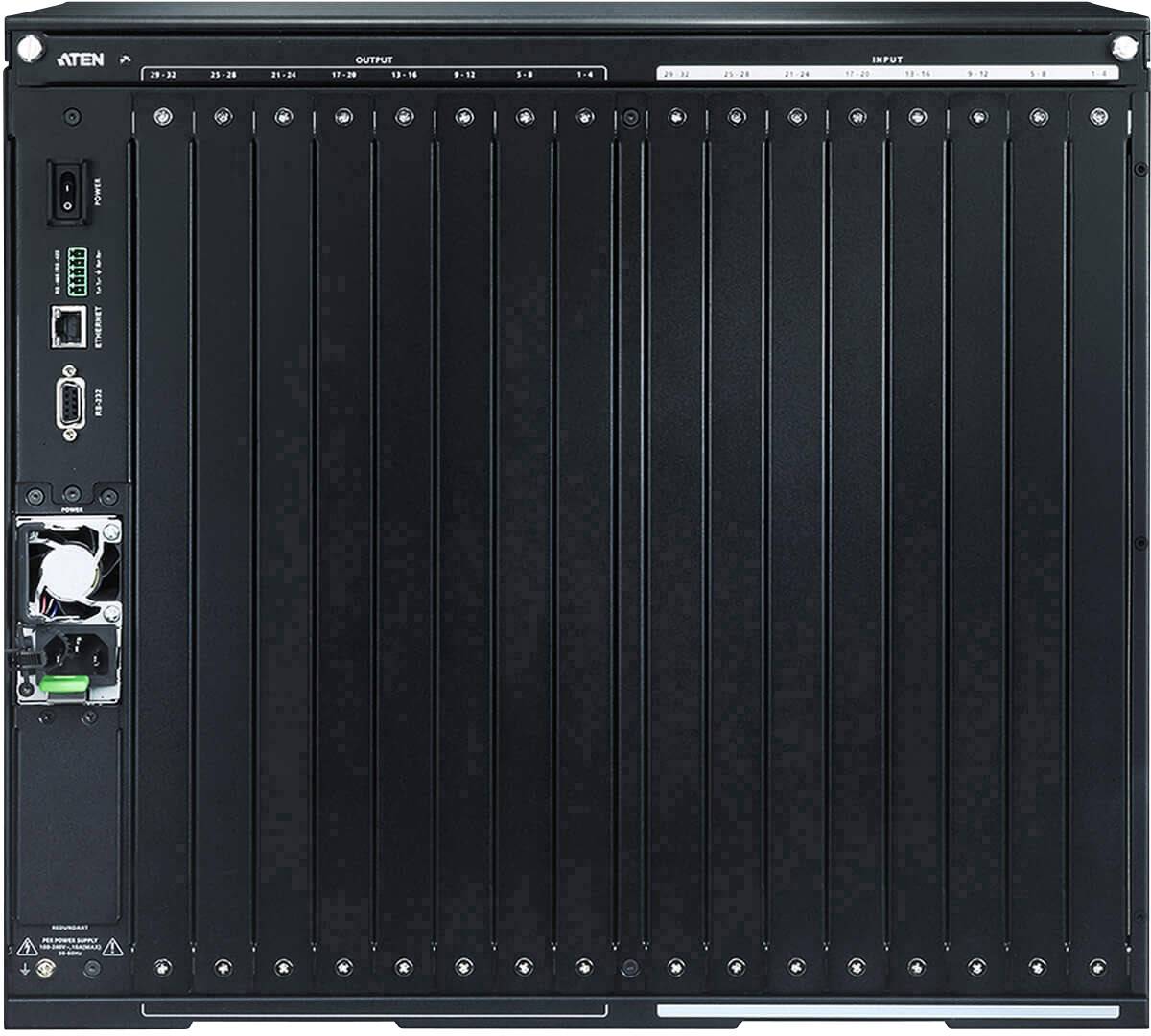

The VM3200 is easily expandable and includes a range of hot-swappable Aten I/O boards. Equipped with automatic signal conversion, it enables any combination of digital video formats, e.g. HDBaseT (VM7514 / VM8514), HDMI (VM7804 / VM8804), DVI (VM7604 / VM8604), 3G-SDI (VM7404) and VGA (VM7104). This makes it ideal for large-scale A/V applications such as transmitting stations, traffic and transport-related control centers, emergency centers and any application that requires adaptable and fast A/V signal routing.
This text is machine translated.
The VM3200 is easily expandable and includes a range of hot-swappable Aten I/O boards. Equipped with automatic signal conversion, it enables any combination of digital video formats, e.g. HDBaseT (VM7514 / VM8514), HDMI (VM7804 / VM8804), DVI (VM7604 / VM8604), 3G-SDI (VM7404) and VGA (VM7104). This makes it ideal for large-scale A/V applications such as transmitting stations, traffic and transport-related control centers, emergency centers and any application that requires adaptable and fast A/V signal routing.
This text is machine translated.
Scope of delivery
- 1x VM3200 32 x 32 Modular Matrix Switch
- 1x LIN2-418K-E12G power cable
- 1x JCNT-3301-105G connection block connection
- 1x VM-FAN556 fan module (pluggable)
- 1x VM-PWR-800 current module (pluggable)
- 1x User Guide
