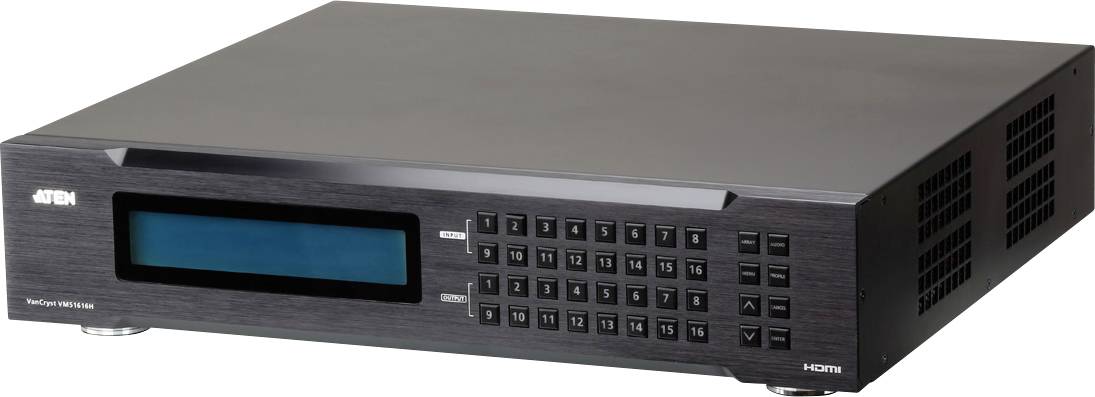

ATEN VM51616H 16 ports HDMI switch meets industrial requirements, Rack-mounting option, PC-controlled 1920 x 1080 p
EAN:
Part number:
Item no:
Technical specifications
- Product type
HDMI switch
- Interfaces (input)
HDMI™
- Interfaces (output)
HDMI™
- No. of inputs
16 x
- No. of outputs
16 x
- Switch function
Automatic
- Resolution (max.)
1920 x 1080 p
- Distributor/switch features
meets industrial requirements
Rack-mounting option
PC-controlled
- Factory colour
Black
- Power supply (LOV)
mains-powered
- Width
0.000 mm
- Height
0.000 mm
- Depth
0.000 mm
- Weight
9.75
- Port
16 ports
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2342325 ATEN VM51616H 16 ports HDMI switch meets industrial requirements, Rack-mounting option, PC-controlled 1920 x 1080 p
Description
16 x 16 HDMI Matrix Switch with Scaler
The VM51616H is a 16 x 16 HDMI matrix switch, which offers a simple and affordable possibility of 16 HDMI video and audio sources on 16 HDMI displays to routes, with a quick view of all port connections via the LCD on the front side or the local HDMI output for the preview of several sources.
The VM51616H provides seamless switching using an FPGA matrix structure to ensure smooth video streaming, real-time control and stable signal transmission. With an integrated high-performance scaler, the VM51616H can easily convert different input resolutions into optimal output display resolutions, allowing viewers to enjoy the best video and image quality on the displays. The switch includes a video wall function with an intuitive user interface that allows you to create 32 connection profiles that can be customized for different video wall layouts.
The VM51616H is an ideal solution for applications where multiple HDMI displays with multiple HDMI sources need to be sent to multiple locations, such as railway stations, competition venues, casinos, control centers, Conference rooms, logistics centers, security management and much more.
This text is machine translated.
The VM51616H is a 16 x 16 HDMI matrix switch, which offers a simple and affordable possibility of 16 HDMI video and audio sources on 16 HDMI displays to routes, with a quick view of all port connections via the LCD on the front side or the local HDMI output for the preview of several sources.
The VM51616H provides seamless switching using an FPGA matrix structure to ensure smooth video streaming, real-time control and stable signal transmission. With an integrated high-performance scaler, the VM51616H can easily convert different input resolutions into optimal output display resolutions, allowing viewers to enjoy the best video and image quality on the displays. The switch includes a video wall function with an intuitive user interface that allows you to create 32 connection profiles that can be customized for different video wall layouts.
The VM51616H is an ideal solution for applications where multiple HDMI displays with multiple HDMI sources need to be sent to multiple locations, such as railway stations, competition venues, casinos, control centers, Conference rooms, logistics centers, security management and much more.
This text is machine translated.
Features
- Connects up to 16 HDMI sources with up to 16 HDMI displays
- Versatile system configuration options with front-panel buttons, RS-232 control and Ethernet connections for web-based GUI or Telnet
- Seamless Switch–provides near-real-time switching, continuous video streaming, real-time switching, and stable signal transmission
- Video wall – allows you to create your own video wall layouts via an intuitive Web GUI
- EDID Expert – configures optimal EDID settings for smooth power-on, high-quality display and use of the optimum resolutions over several screens
- FrameSync – prevents image cracks by synchronizing the scaler output frame rate with the frame rate of the input signal
- Excellent video quality – HDTV resolution of 480p, 720p, 1080i and 1080p (1920 x 1080)
- HDMI (3D, Deep Color, 4K); HDCP 1.2 compatible
- Audio enabled, HDMI audio can be extracted to stereo audio
- ESD protection for HDMI
- Rack mounting possible (1U design)
