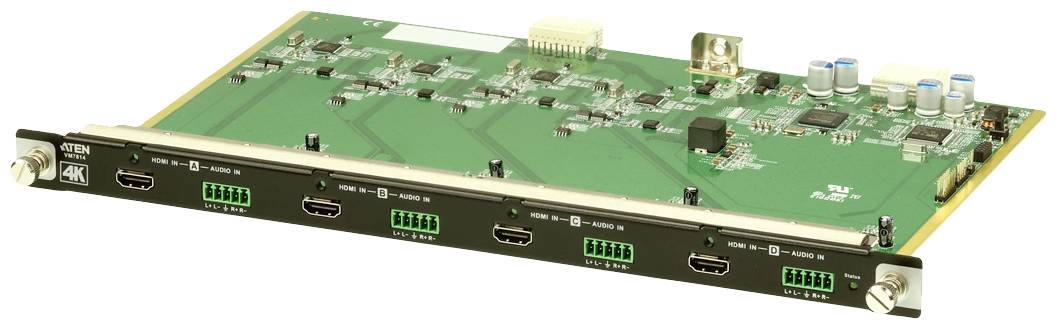

ATEN VM7814 Expansion card Black
EAN:
Part number:
Item no:
Technical specifications
- Product type
Expansion card
- No. of inputs
4 x
- Interfaces (input)
HDMI™
- No. of outputs
1 x
- Interfaces (output)
HDMI™
- Factory colour
Black
- Weight
0.56 kg
- Width
23.8 cm
- Height
35.2 cm
- Depth
2.28 cm
- Dim
(W x H x D) 23.8 x 35.2 x 2.28 cm
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2558235 ATEN VM7814 Expansion card Black
Description
The VM7814 is a 4K HDMI input card that works with an Aten Modular Matrix Switch and offers an easy way to route 4 HDMI sources on 4 displays. In addition to the HDMI interface, which transmits digital A/V signals, the VM7814 has 4 stereo audio inputs that enable stereo audio embedding. Aten VM input/output cards support hot-swap installations that provide system integrators with great flexibility and efficiency in maintenance. Aten VM input/output cards and Aten Modular Matrix switches offer ideal solutions that are perfectly suited to your requirements for video-critical applications. Compatible with the VM1600 / VM3200; can be combined with modular I/O cards of all kinds for optimum flexibility outstanding video quality – HDTV resolutions of 480p, 720p, 1080i and 1080p (1920 x 1080); VGA, SVGA, SXGA, UXGA, WUXGA (1920x1200) and 4K2K at 60 Hz (4:2:0) audio activated, stereo audio can be integrated EDID Expert – selects optimum EDID settings for a smooth start and display with the highest quality HDMI (3D, Deep Color); HDCP 2.2 compatible Cable quality tester – examines the quality of the HDMI cable
