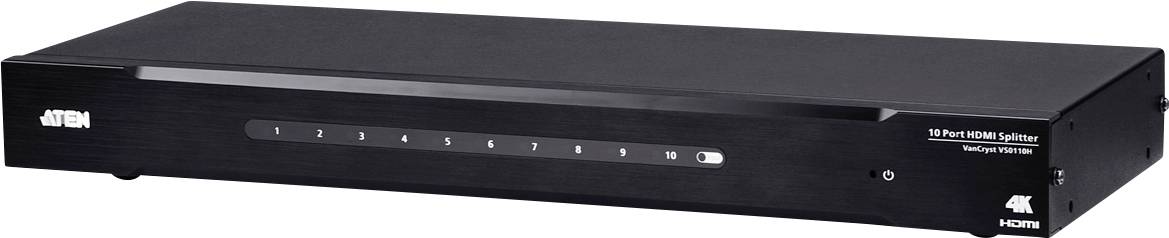

ATEN VS0110HA 10 ports HDMI splitter Ultra HD compatibility 4096 x 2160 p Black
EAN:
Part number:
Item no:
Technical specifications
- Product type
HDMI splitter
- Supported monitors
10
- No. of inputs
1 x
- Interfaces (input)
HDMI™
- No. of outputs
10 x
- Interfaces (output)
HDMI™
- Resolution (max.)
4096 x 2160 p
- Switch function
Automatic
- Power supply (LOV)
via DC in
- Distributor/switch features
Ultra HD compatibility
- Factory colour
Black
- Weight
2100 g
- Width
157.80 mm
- Height
437.20 mm
- Depth
44 mm
- Dim
(W x H x D) 157.80 x 437.20 x 44 mm
- Port
10 ports
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2342329 ATEN VS0110HA 10 ports HDMI splitter Ultra HD compatibility 4096 x 2160 p Black
Description
The VS0110HA 4K HDMI splitter is the perfect solution for applications where a source of high-resolution 4K video needs to be sent to ten screens simultaneously.
This text is machine translated.
This text is machine translated.
Features
- Connects one HDMI source with up to ten HDMI screens at the same time
- HDMI (3D, Deep Color, 4K); HDCP 1.4 compliant
- Superior video quality – up to 4K resolutions (4096 x 2160 at 60 Hz; 4:2:0)
- Remote transmission from source to output - up to 15 m.
- Integrated bidirectional serial RS-232 control port for high-end control panel
- Clear LED display of the device status
- EDID Expert™ – selects optimal EDID settings for a smooth start, high-quality display and use of the optimum resolutions across multiple screens
- Plug-and-Play
- Rack mounting possible (1U design)
Scope of delivery
- 1x VS0110HA 10-port 4K HDMI splitter
- 1x 0AD6-1F05-26EG power supply
- 1x mounting set
- 1x User Guide
