ATEN VS134A-AT-G 4 ports VGA splitter + built-in repeater 2048 x 1536 p Black
EAN:
Part number:
Item no:
Highlights & Details

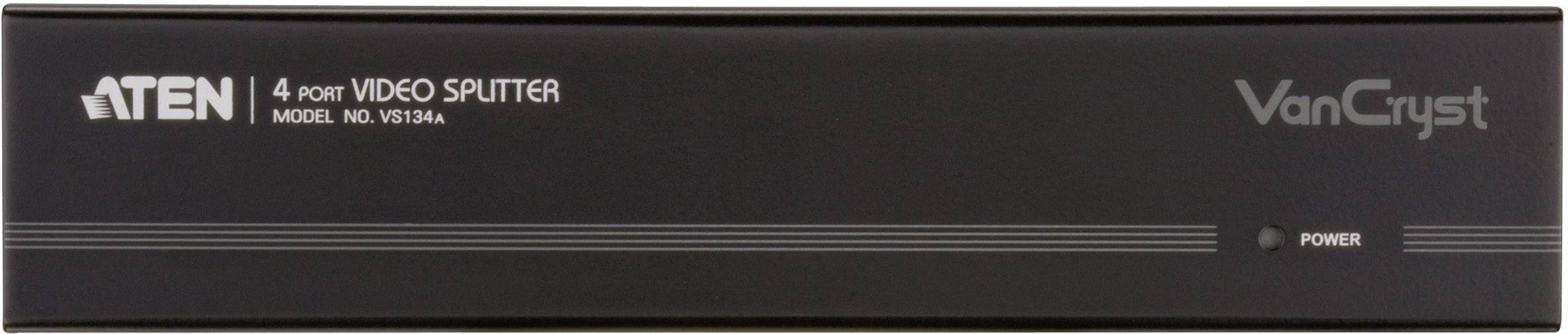

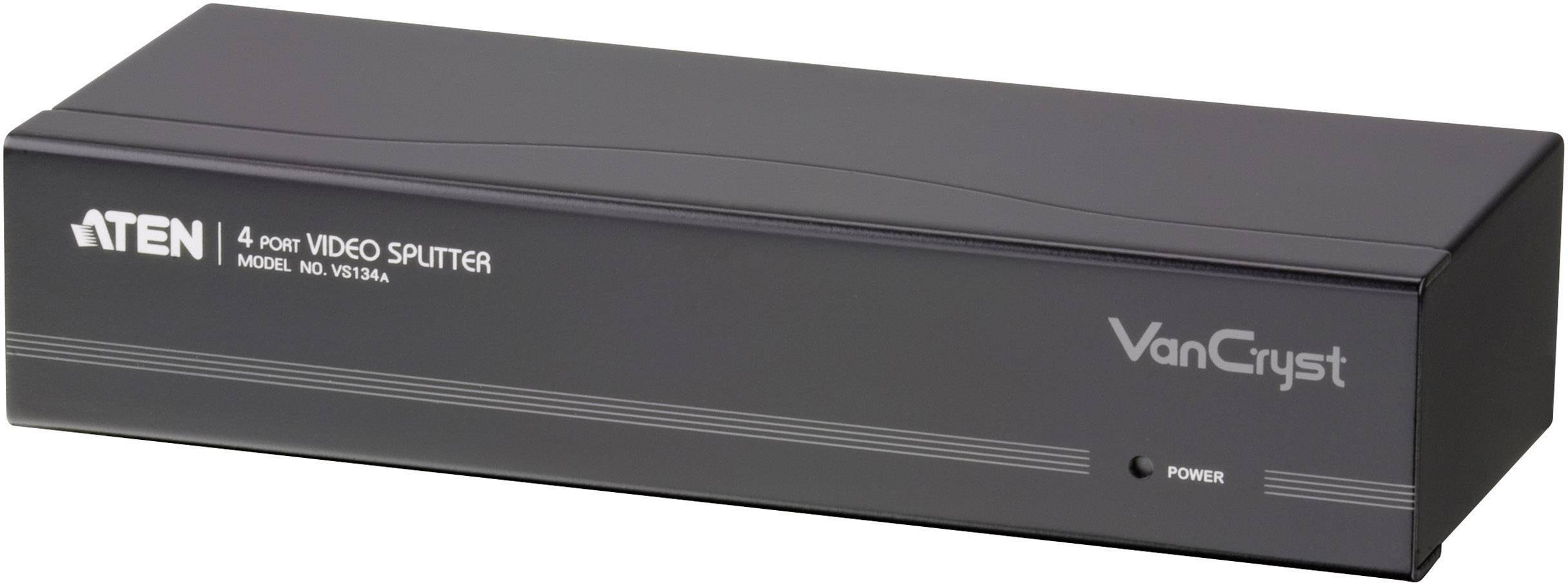

ATEN VS134A VGA video splitter
- A graphic input is distributed on 4 Graphics Outputs
Technical specifications
- Product type
VGA splitter
- Supported monitors
4
- No. of inputs
1 x
- Interfaces (input)
VGA
- No. of outputs
4 x
- Interfaces (output)
VGA
- Resolution (max.)
2048 x 1536 p
- Switch function
Manual
- Power supply (LOV)
via PSU
- Distributor/switch features
+ built-in repeater
- Factory colour
Black
- Weight
610 g
- Width
200 mm
- Height
45 mm
- Depth
75 mm
- Dim
(W x H x D) 200 x 45 x 75 mm
- Port
4 ports
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1879751 ATEN VS134A-AT-G 4 ports VGA splitter + built-in repeater 2048 x 1536 p Black
Description
Aten VS134A. Video port type: VGA. Supported graphic resolutions: 1024x768 (XGA) ,1600 x 1200 (UXGA) ,1920 x 1200 (WUXGA) ,2048 x 1536 (QXGA) ,640 x 480 (VGA) ,800 x..., Maximum resolution: 2048 x 1536 pixels, bandwidth: 450MHz. Product Color: black. Power consumption (typical): 0.95 W. dimensions (wxdxh): 200 x 75 x 45 mm, weight: 610 g
This text is machine translated.
This text is machine translated.
Features
- Supports up to 450 MHz bandwidth
- Cascade circuit to a maximum of 3 levels results in up to 64 graphics signals
- Large transmission paths - up to 65 m*
- Improved Graphics Quality - Resolutions up to 2048 x 1536
- Supports VGA, XGA, SVGA, UXGA, QXGA and multi-sync monitors
- The built-in 1.5-G Hz-Verstarker provides for the conservation of the image signal quality over larger distances
- Metal housing
Scope of delivery
- 1 x VS134A graphics splitter
- 1 x 0 AD 6-1005-10EC power supply
- 1x user manual.
