ATEN VS184A-AT-G 4 ports HDMI splitter 4096 x 2160 p Black
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details

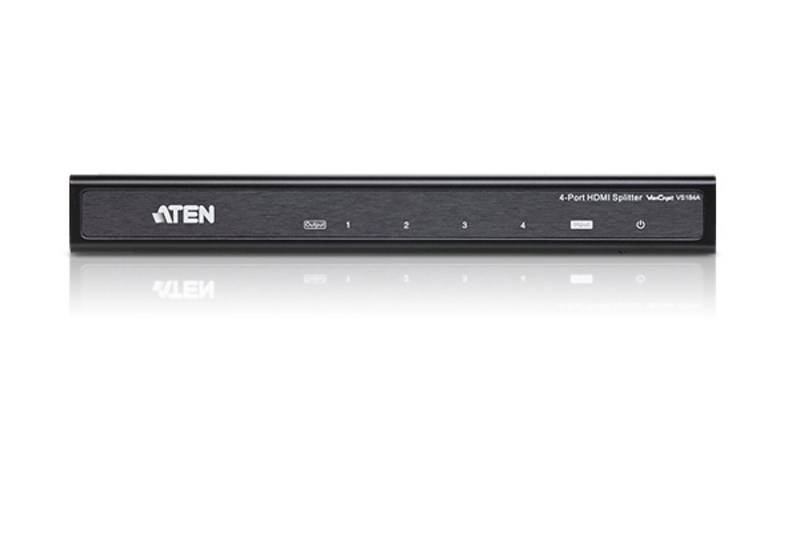

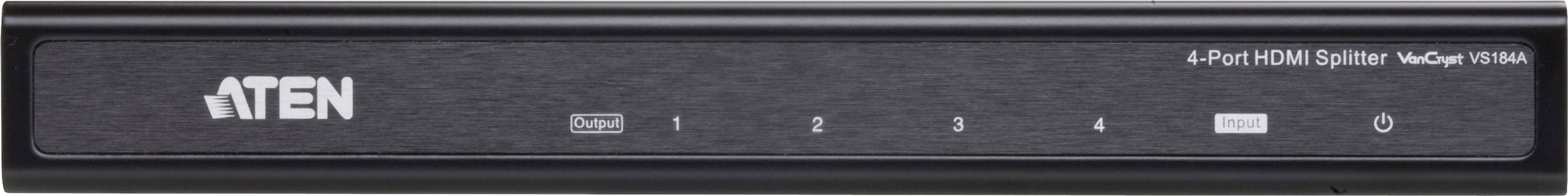

ATEN 4 Port HDMI Splitter HDMI
- Allows the connection of a HDMI signal source to up to four HDMI screens at the same time
- HDMI (3D, Deep Color, 4kx2k) and HDCP 1.4 compatible
- Supports resolutions up to Ultra HD 4Kx2K and 1080p Full HD
Technical specifications
- Product type
HDMI splitter
- Supported monitors
4
- No. of inputs
1 x

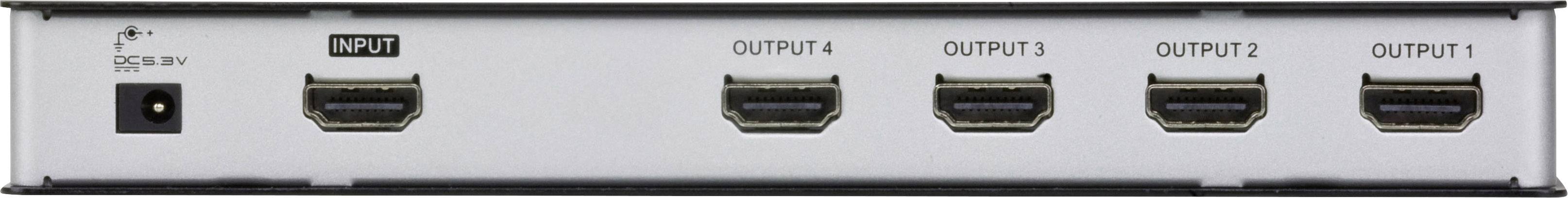

- Interfaces (input)
HDMI™
- No. of outputs
4 x
- Interfaces (output)
HDMI™
- Resolution (max.)
4096 x 2160 p
- Power supply (LOV)
via PSU
- Factory colour
Black
- Weight
470 g
- Width
220 mm
- Height
100 mm
- Depth
2750 mm
- Dim
(W x H x D) 220 x 100 x 2750 mm
- Port
4 ports
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 1879753 ATEN VS184A-AT-G 4 ports HDMI splitter 4096 x 2160 p Black
User & Safety Instructions
User & Safety Instructions 1879753 ATEN VS184A-AT-G 4 ports HDMI splitter 4096 x 2160 p Black
Description
Aten 4 Port HDMI Splitter. Video port type: HDMI. Supported Graphic Resolution: 1920 x 1080 (HD1080), supported video modes: 1080p. Product Color: black. Power consumption (typical): 4.6 W. dimensions (wxdxh): 80 x 200 x 25 mm, weight: 470 g
This text is machine translated.
This text is machine translated.
Features
- Supports Dolby True HD and DTS HD Master Audio
- Large transmission paths - up to 15 m (24 AWG)
- Supports up to 340 MHz bandwidth for optimum picture quality
- Plug and play - no software installation required
Scope of delivery
- 1 x 0 AD 6-1605-09EC power supply
- 1 x 2L-7D02 H HDMI cable
- User manual.
