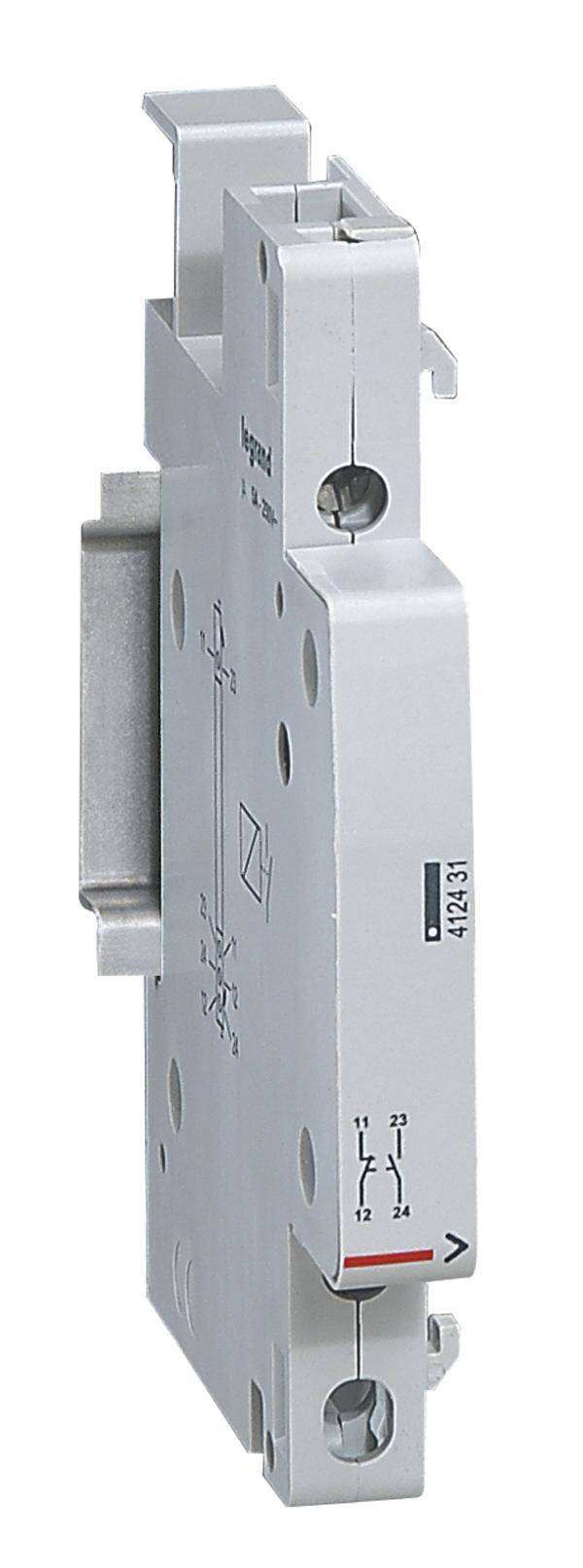

Auxiliary switch 5 A 250 V Legrand 412431
EAN:
Part number:
Item no:
Product type
Auxiliary switch
Nominal voltage
250 V
Number of pins
4
Nominal current - rounded value
5 A
Dim
(W x H x D) 88 x 100 x 24 mm
Datasheet (PDF)
Technical specifications
- Suitable for max. number of poles of the main contact unit (total): 4
- Suitable for max. current of the main contact unit: 63 A.
- Product type
Auxiliary switch
- Nominal voltage
250 V
- Number of pins
4
- Dim
(W x H x D) 88 x 100 x 24 mm
- Nominal current
5 A
- Nominal current - rounded value
5 A
- No. of partitions
0.5
- Type
1 NO + 1 NC
- Width
88 mm
- Height
100 mm
- Depth
24 mm
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 2155427 Auxiliary switch 5 A 250 V Legrand 412431
User & Safety Instructions
User & Safety Instructions 2155427 Auxiliary switch 5 A 250 V Legrand 412431
Description
Auxiliary switch for signaling the switching position, for installation contactors 40 A and 63 A of the Legrand CX3 series. Tool-free assembly by simply linking to the left side of the main unit, per installation contactor maximum 1 auxiliary switch. Contact type: 1S + 1NC, Imax 5 A 250 V AC, device width 0.5 division units
