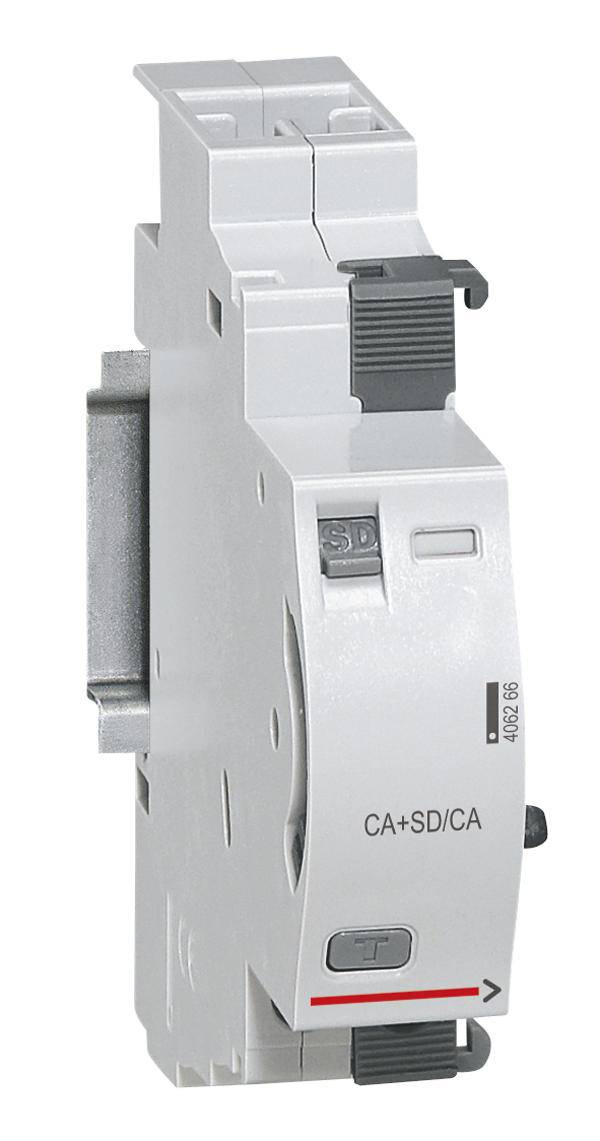

Auxiliary switch 6 A 2 change-overs 240 V Legrand 406266
Product type
Auxiliary switch
Nominal voltage
240 V
Number of pins
4
Nominal current - rounded value
6 A
Contact type
2 change-overs
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Suitable for max. number of poles of the main contact unit (total): 4
- Suitable for max. current of the main contact unit: 125 A.
- Product type
Auxiliary switch
- Contact type
2 change-overs
- Nominal voltage
240 V
- Number of pins
4
- Nominal current
6 A
- Nominal current - rounded value
6 A
- No. of partitions
1
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2153829 Auxiliary switch 6 A 2 change-overs 240 V Legrand 406266
User & Safety Instructions
User & Safety Instructions 2153829 Auxiliary switch 6 A 2 change-overs 240 V Legrand 406266
Description
Auxiliary switch and fault signal switch, can be changed from the front to 2x auxiliary switch. Auxiliary switch: Reports the switching state for manual and error triggering. Fault signal switch: Reports the switching status when an error is triggered, no message when manually triggered. Test button for testing the signaling devices connected to the signal switch, for LS-switches, FI-/ FILS-protection switch of the Legrand TX3 and DX3 series. Tool-free assembly by simply linking to the left side of the main unit, maximum of 3 auxiliary devices or 2 auxiliary devices + 1 control device per main unit. 2 changeover contacts, 6 A 240 V AC, unit width 1 division unit
