AXAGON RVD-HI20N HDMI / DisplayPort Adapter [1x HDMI socket - 1x DisplayPort plug] Black 0.15 m
EAN:
Part number:
Item no:
Highlights & Details
AXAGON RVD-HI20N HDMI / DisplayPort Adapter [1x HDMI socket - 1x DisplayPort plug] Black 0.15 m
- Display port to HDMI adapter
- 4K/60 Hz
- HDR10 support
- HDCP 2.2
- 15 cm cable length, robust construction
Technical specifications
- Input (connection to computer):
- • DisplayPort v 1.2a
- • DP (M) Male plug (male)
- Output (connection to monitor / TV / projector):
- • HDMI V2.0B
- • HDMI plug (F) female (female)
- The most supported resolutions:
- • 4K/60, 30 Hz ultra HD
- • 2K/144, 120, 100, 60 Hz Quad HD
- • 1080p/240, 144, 120, 100, 75, 60 Hz Full HD
- Other supported resolutions:
- The resolution and frequency are determined by the monitor and graphics card used, as well as the cable.
- • Max. 4096 x 2160 (17:9) @60Hz DCI 4K
- • 3840 x 2160 (16:9) @60Hz UHD-1 4K (UHD)
- • 3840 x 1600 (21:9) UW 4K (Ultrawide 1600p)
- • 3840 x 1200 (32:10) 4K (Super Ultra wide 1200p)
- • 3840 x 1080 (32:9) 4K (Super Ultra-wide 1080p)
- • 3440 x 1440 (21:9) UWQHD (Ultrawide 1440p)
- • 2560 x 2048 (5:4) QSXGA
- • 2560 x 1920 (4:3)
- • 2560 x 1600 (16:10) WQXGA
- • 2560 x 1440 (16:9) @144Hz QHD
- • 2560 x 1080 (21:9) UWFHD (Ultrawide 1080p)
- • 2048 x 1536 (4:3) QXGA
- • 2048 x 1152 (16:9) QWXGA
- • 1920 x 1440 (4:3)
- • 1920 x 1200 (16:10) WUXGA
- • 1920 x 1080 (16:9) @240Hz Full HD/1080p
- • 1856 x 1392 (4:3)
- • 1792 x 1344 (4:3)
- • 1680 x 1050 (16:10) WSXGA+
- • 1600 x 1200 (4:3) UXGA
- • 1600 x 900 (16:9) HD+
- • 1536 x 864 (16:9)
- • 1440 x 900 (16:10) WXGA+
- • 1400 x 1050 (4:3) SXGA+
- • 1366 x 768 (16:9) HD
- • 1360 x 768 (16:9) HD
- • 1280 x 1024 (5:4) SXGA
- • 1280 x 960 (4:3) SXGA-
- • 1280 x 800 (16:10) WXGA
- • 1280 x 768 (5:3) WXGA
- • 1280 x 720 (16:9) HD/WXGA/720p
- • 1280 x 600
- • 1152 x 864 (4:3) XGA+
- • 1024 x 768 (4:3) XGA
- • 800 x 600 (4:3) SVGA
- Other properties:
- • Supports loss-free audio transmission up to 8 channels – 192 kHz at 24 bit.
- • Support of DDC (Display Data Channel) – intelligent adaptation of resolution, frequency and other parameters according to the source graphics chip.
- • Supported modes: Mirror the primary monitor's surface (default setting), extend the primary monitor's interface.
- • High Dynamic Range (HDR 10) support – realistic reproduction of light and dark details.
- • HPD (Hot-Plug-Detect) support - communication sequence that controls the connection/disconnection of the device during operation.
- • HDCP 2.2 (4K, QHD, FullHD) support – backward compatible with HDCP 1.4.
- • Support for Power Saving modes with sleep mode offset controlled by the source device (PC) or display (monitor/TV).
- • Bus power supply - no external power supply required
- • Dimensions 12 x 42 x 22 mm (H x W x D)
- • Weight 24 g (including cable).
- • Cable 15 cm long.
- Supported OS:
- • All versions of Windows, MacOS, Linux, Chrome OS and other operating systems.
- • This is a pure hardware converter, the conversion is done only via the cable chip without a computer, no drivers are installed, the compatibility is therefore not dependent on the operating system used.
- Product type
TV/monitor Adapter
- Connection type
HDMI
DisplayPort
- No. of A connectors
1 x
- Type A
HDMI socket
- No. of B connections
1 x
- Type B
DisplayPort plug
- Cable length
0.15 m
- Factory colour
Black
- Video resolution
4096 x 2160 Pixel
- Connector version
straight
- Cable use
TV/monitor
- Version
Adapter
- Range of use
Monitors/TV adapters
Cable
- UKCA
not relevant
- Quantity per pack
1 Stück(e)
- Package weight
65 g
- Plug and Play
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3746226 AXAGON RVD-HI20N HDMI / DisplayPort Adapter [1x HDMI socket - 1x DisplayPort plug] Black 0.15 m
Description

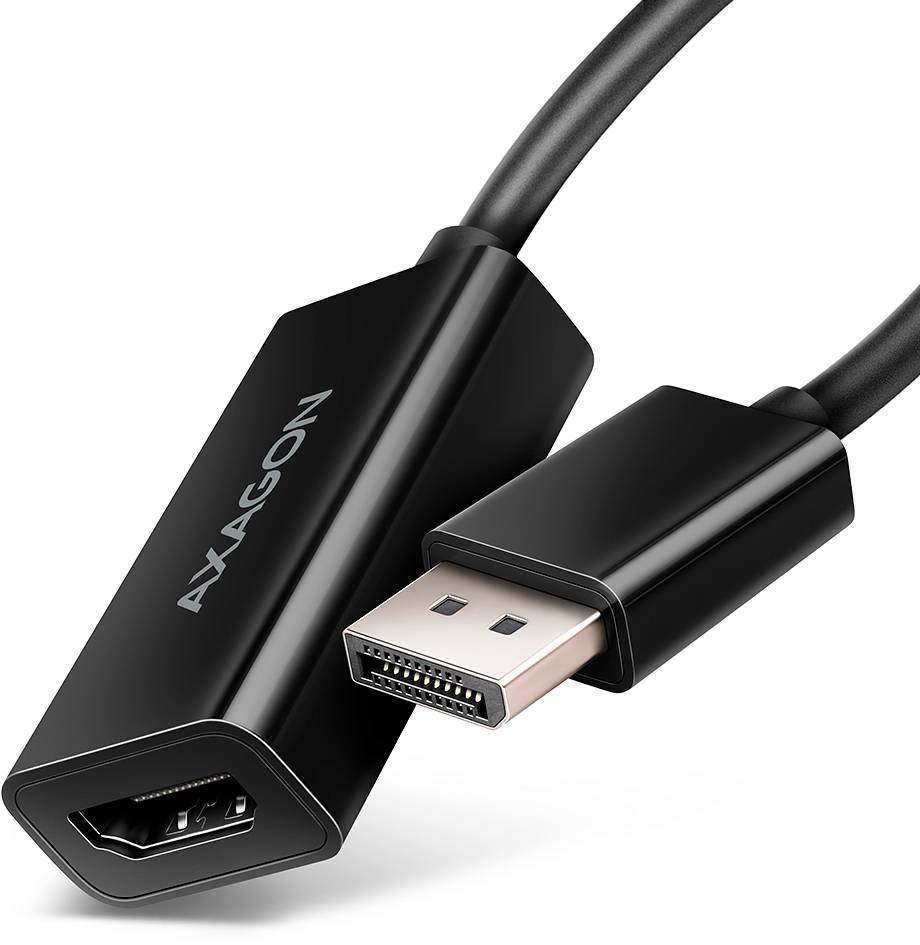

DisplayPort -> HDMI active adapter - AXAGON RVD-HI20N converter for connecting a monitor/TV/projector with HDMI to a computer with a DisplayPort output. With this adapter you can easily use your existing HDMI cable, without having to make a further investment.
This compact hardware converter operates without any installation and produces a high-quality image quality with a resolution of up to 4K/60 Hz Ultra HD. It also supports popular resolutions such as 2K/144 Hz Quad HD or 1080p/240 Hz Full HD. Thanks to HDR (High Dynamic Range) support, you can enjoy a much wider range of colors and contrasts without any restrictions.
The Plug-and-Play technology is Ideal for professionals and home users who want to extend their multimedia setup simply and efficiently.
Enjoy 4K home cinema quality or use the adapter for conferences and presentations. Ideal also for schools and interactive rooms, in which computers are frequently connected to HDMI-devices. Graphic designers and video producers will appreciate the detailed presentation. The adapter is compatible with monitors of brands like Dell, HP, Lenovo, Asus, Samsung, LG, Sony, MSI and more – this guarantees versatility and reliability.
Thanks to the support of HDCP 2.2 you can enjoy your favorite streaming services in full 4K resolution – including Netflix, Disney+, HBO Max, Amazon Prime and Apple TV+. Of course, lossless audio transmission is supported, Ideal for modern television. HDCP support must be guaranteed on all connected devices as well as by the respective streaming service.

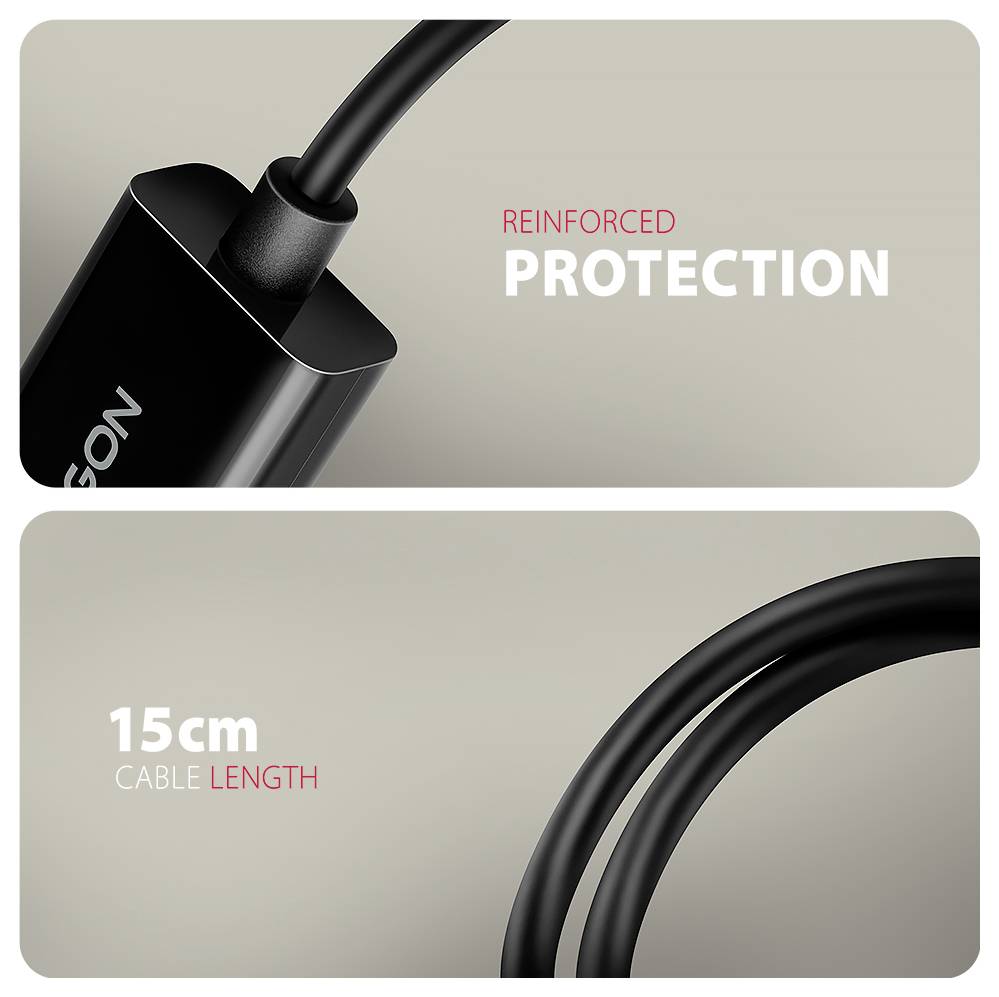

The adapter is made from high-quality materials that ensure a high level of reliability. Cable and connections are kink proof, WAS their service life extended. In addition, the adapter features a 15 cm long, flexible cable for easier handling.
The adapter can only be used in unidirectional ways, i.e. it converts from DisplayPort to HDMI, not vice versa.
This text is machine translated.
This compact hardware converter operates without any installation and produces a high-quality image quality with a resolution of up to 4K/60 Hz Ultra HD. It also supports popular resolutions such as 2K/144 Hz Quad HD or 1080p/240 Hz Full HD. Thanks to HDR (High Dynamic Range) support, you can enjoy a much wider range of colors and contrasts without any restrictions.
The Plug-and-Play technology is Ideal for professionals and home users who want to extend their multimedia setup simply and efficiently.
Enjoy 4K home cinema quality or use the adapter for conferences and presentations. Ideal also for schools and interactive rooms, in which computers are frequently connected to HDMI-devices. Graphic designers and video producers will appreciate the detailed presentation. The adapter is compatible with monitors of brands like Dell, HP, Lenovo, Asus, Samsung, LG, Sony, MSI and more – this guarantees versatility and reliability.
Thanks to the support of HDCP 2.2 you can enjoy your favorite streaming services in full 4K resolution – including Netflix, Disney+, HBO Max, Amazon Prime and Apple TV+. Of course, lossless audio transmission is supported, Ideal for modern television. HDCP support must be guaranteed on all connected devices as well as by the respective streaming service.
The adapter is made from high-quality materials that ensure a high level of reliability. Cable and connections are kink proof, WAS their service life extended. In addition, the adapter features a 15 cm long, flexible cable for easier handling.
The adapter can only be used in unidirectional ways, i.e. it converts from DisplayPort to HDMI, not vice versa.
This text is machine translated.

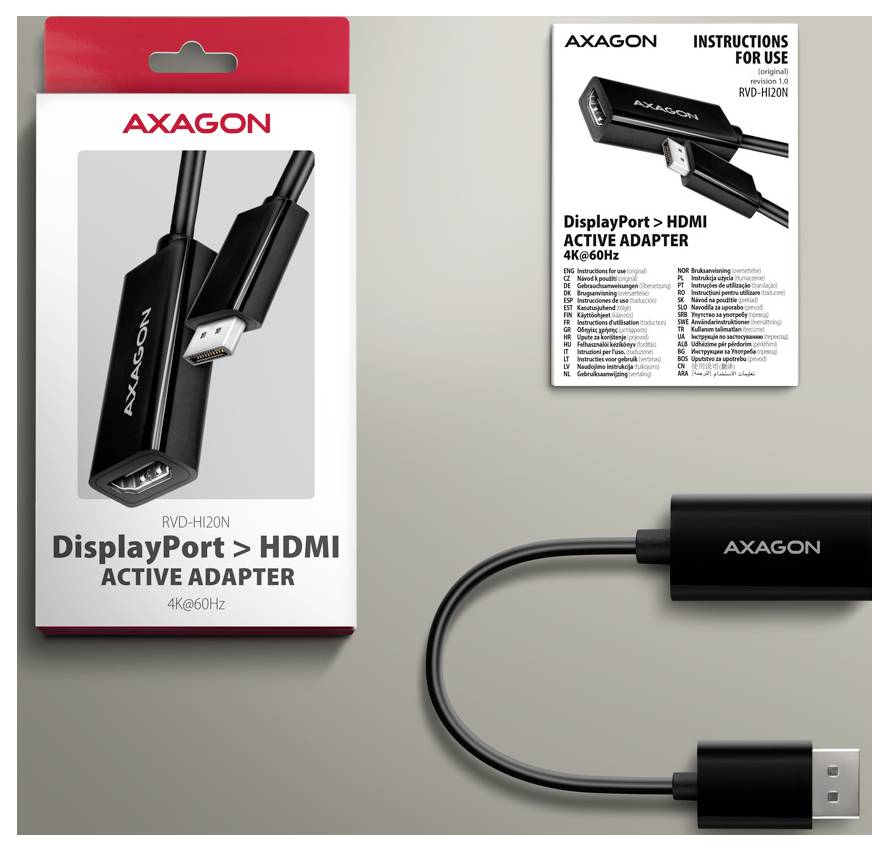

Scope of delivery
- DisplayPort HDMI video adapter
- User manual
