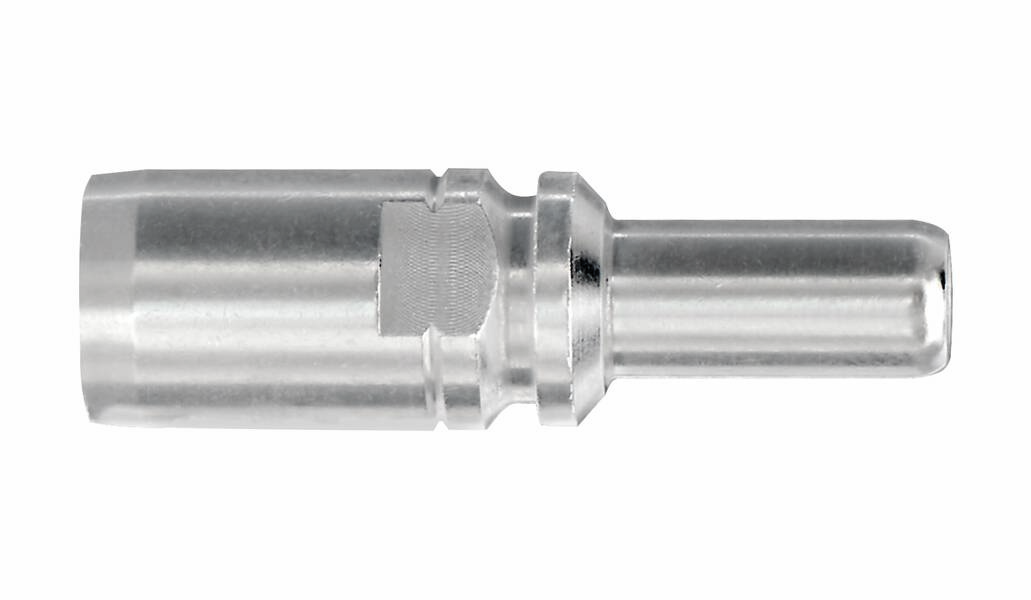

Axial screw contact 09110006194 HARTING Content: 1 pc(s) Axial screw contact
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Axial screw contact
Type
09 11 000 6194
Manufacturer part #
09110006194
Connection
Axial screw terminal
Datasheet (PDF)
Technical specifications
- Series TC 100
- Rated current ≤ 100 A
- Continuous resistance ≤ 0.3 mΩ
- Temperature limit: -40 ... +125 °C
- Mating cycles ≥ 500
- Material contacts: Copper alloy
- Silver-plated contact surface
- Standards IEC 60664-1; IEC 61984
- Net weight: 19.65 g
- Contact type: Axial screw contact
- Gender: Pen
- Production process: Turned contacts
- Conductor cross-section: 38 mm²
- Stripped length: 13 mm
- Tightening torque 8 Nm
- Packaging type
Piece
- Type
09 11 000 6194
- Product type
Axial screw contact
- Manufacturer part #
09110006194
- Connection
Axial screw terminal
- Content
1 pc(s)
- Material
Copper alloy
- Max. temperature
125 °C
Pin
-40-125 °C
Other
Silver
13 mm
38-38 mm²
38-38 mm²
100 A
Other copper alloys
500
Turned (lathe)
Documents & Downloads
Datasheet
Datasheet 3005635 Axial screw contact 09110006194 HARTING Content: 1 pc(s) Axial screw contact
Datasheet 3005635 Axial screw contact 09110006194 HARTING Content: 1 pc(s) Axial screw contact
User & Safety Instructions
User & Safety Instructions 3005635 Axial screw contact 09110006194 HARTING Content: 1 pc(s) Axial screw contact
Description
Axial screw contact, operating current: 100 A, pin, copper alloy, silver-plated, Conductor cross-section: 38 mm²
