Name: B + B Thermo-Technik Pressure transducer 1 pc(s) 0550 1292-007 0 bar up to 10 bar Cable
Brand: B + B Thermo-Technik
SKU: 3089528
Availability: InStock

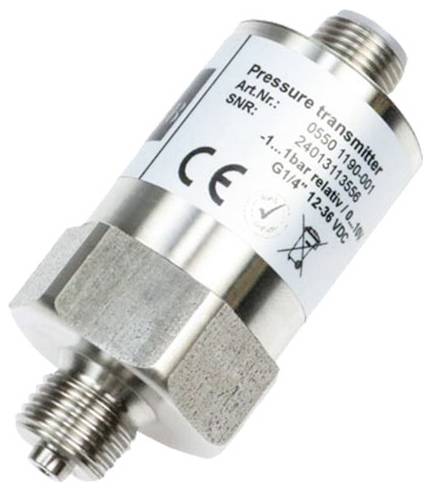

Pressure transmitter sensor with threaded metal fitting and attached cable, shown on a white background.

Dimensioned technical drawing of a cylindrical sensor or probe: 60 mm tall body, 27 mm max width, G1/4 thread, 5 mm tip, 2000 mm cable, 30 mm lead length.

1/2

Image similar

Product type

Pressure transducer

Connector

Cable

Model

Relative pressure

Pressure reading range (max.)

10 bar

Max. operating voltage

24 V DC

Datasheet (PDF)

Fast track dispatch on Tue 27 Oct

2 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 139.99 / piece)

€ 139.99

incl. VAT

Only 2 Piece(s) available

14-day return policy included

Report legal concerns

Highlights & Details

Pressure transmitter with 2m-cable

High-quality stainless steel housing; very sturdy construction

Technical specifications

Output signal, 4...20 mA, burst pressure, 30 bar, designation, Pressure transmitter stainless steel, pressure measuring type, relative pressure, operating temperature, -20...+80 °C, Electrical connection, cable 2 m, EMC emission, EN 61000-6-3: 2011, EMC immunity, EN 61000-6-1: 2007, measuring range pressure, 0...10 bar, process connection, G1/4", Residual error linearity/hysteresis, <±0.4% FS, protection class, IP65, Power supply, 14...24 V DC, temperature coefficient, TCO < ±0.015 % < FS/K; TCG ±0.010 % FS/K, material housing, stainless steel 1.4305, material, sensor: ceramic measuring cell, Allowable Burden, Ra[?]<(UV[volts]-10V) / 0.02 A (with output 4…20 mA)

Product type: Pressure transducer

Type: 0550 1292-007

Connector: Cable

Cable length: 2 m

Model: Relative pressure

Outputs: Current (analogue)

Output signal (min.): 4 mA

Output signal (max.): 20 mA

Accuracy: 0.4 %

Pressure reading range (min.): 0 bar

Pressure reading range (max.): 10 bar

Pressure reading range: 0 bar up to 10 bar

Min. operating voltage: 14 V DC

Max. operating voltage: 24 V DC

Operating voltage: 14 - 24 V DC

Burst load: 30 bar

: IP65

Min. temperature: -20 °C

Max. temperature: 80 °C

RoHS-compliant: Yes

Content: 1 pc(s)

Variants(All information include VAT, plus shipping costs)

Pressure reading range (max.)

B + B Thermo-Technik Pressure transducer 1 pc(s) 0550 1292-007 0 bar up to 10 bar Cable

Item no:3089528

Fast track dispatch on Tue 27 Oct

2 Piece(s)Conrad Electronic

This article

10 bar

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 139.99^*

B + B Thermo-Technik Pressure transducer 1 pc(s) 0550 1292-001 -1 bar up to 1 bar Cable Single

Item no:3089419

Unavailable

Conrad Electronic

1 bar

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 124.99^*

B + B Thermo-Technik Pressure transducer 1 pc(s) 0550 1292-002 0 bar up to 1 bar Cable

Item no:3089270

Unavailable

Conrad Electronic

1 bar

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 124.99^*

B + B Thermo-Technik Pressure transducer 1 pc(s) 0550 1292-003 0 bar up to 1.6 bar Cable Piece

Item no:3089495

Unavailable

Conrad Electronic

1.6 bar

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 124.99^*

B + B Thermo-Technik Pressure transducer 1 pc(s) 0550 1292-004 0 bar up to 2.5 bar Cable

Item no:3089259

Unavailable

Conrad Electronic

2.5 bar

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 124.99^*

B + B Thermo-Technik Pressure transducer 1 pc(s) 0550 1292-005 4 bar (max) Cable Single

Item no:3089443

Unavailable

Conrad Electronic

4 bar

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 124.99^*

B + B Thermo-Technik Pressure transducer 1 pc(s) 0550 1292-006 0 bar up to 6 bar Cable

Item no:3089264

Unavailable

Conrad Electronic

6 bar

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 124.99^*

B + B Thermo-Technik Pressure transducer 1 pc(s) 0550 1292-009 0 bar up to 25 bar Cable Piece

Item no:3089422

Unavailable

Conrad Electronic

25 bar

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 124.99^*

B + B Thermo-Technik Pressure transducer 1 pc(s) 0550 1292-010 0 bar up to 40 bar Cable

Item no:3089330

Unavailable

Conrad Electronic

40 bar

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 124.99^*

B + B Thermo-Technik Pressure transducer 1 pc(s) 0550 1292-011 0 bar up to 60 bar Cable Piece

Item no:3089390

Unavailable

Conrad Electronic

60 bar

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 124.99^*

Documents & Downloads

Datasheet

Datasheet 3089528 B + B Thermo-Technik Pressure transducer 1 pc(s) 0550 1292-007 0 bar up to 10 bar Cable

User & Safety Instructions

User & Safety Instructions 3089528 B + B Thermo-Technik Pressure transducer 1 pc(s) 0550 1292-007 0 bar up to 10 bar Cable

Description

The pressure sensors with 2m connection cable are Ideal suitable for measuring static and dynamic relative pressures in liquids or gases.

This text is machine translated.

Description

The pressure sensors with 2m connection cable are Ideal suitable for measuring static and dynamic relative pressures in liquids or gases.
