Bachmann 119283 Current Cable White 5 m
EAN:
Part number:
Item no:
Technical specifications
- Connection 1: Wire-end sleeve
- Wire number: 5
- Conductor cross-section: 2.5 mm²
- Length: 5 m
- Jacket material: Polyvinyl chloride (PVC)
- Temperature resistance 0 to .70 °C
- Sheath color: White
- Spiral cable: No.
- With ground wire: Yes
- Oil resistant according to EN 60811-404: No.
- Outer diameter approx. 11.3 mm
- Product type
Current Cable
- Cable use
Current
- Version
Cable
- Type A
Ferrules
- Cable features
incl. PG
- Cable length
5 m
- Factory colour
White
- Length
5.00 m
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3158702 Bachmann 119283 Current Cable White 5 m
Description

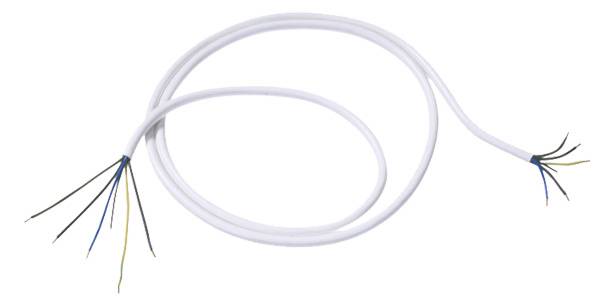

Cooker line H05VV-F 5G2,50mm² white Length: 5,00m, S1: 50mm stripped with wire end sleeves , S2: Green/yellow protective conductor 140mm stripped with wire end sleeves , all further wires 110mm stripped with wire end sleeves .
This text is machine translated.
