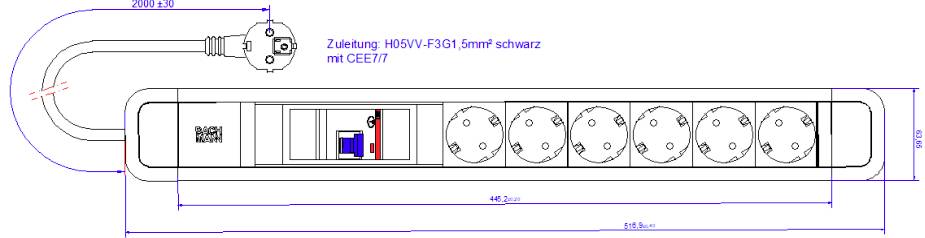

Stroke drawing/circuit diagram
Bachmann 350.005 Power strip Black PG connector 1 pc(s)
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Housing shape: Rectangular
- Number of Schuko sockets: 6
- With On / Off switch: No.
- FI switch: Yes
- Line suppression filter: No.
- Surge protection: No.
- Nominal current: 16 A
- Wire cross-section: 1.5 mm²
- With cover: No.
- Material: Metal
- Material quality: Aluminium
- Halogen-free: No.
- Antibacterial treatment: No.
- Surface protection: Other
- Design of surface: Matt
- Colour, black
- RAL number (similar): 9005
- Transparent: No.
- Protection class (IP) IP20
- Impact strength: Other
- Cable length 2 m.
- Turned central insert: Yes
- Angle of twisted central insert: 35°
- NEMA code: None
- Operating temperature 0 °C .35 °C.
- Compatible with Apple HomeKit: No.
- Compatible with Google Assistant: No.
- Compatible with Amazon Alexa: No.
- IFTTT support available: No.
- Product type
Power strip
- Light bulb features
incl. RCBO
- Outlets
6
- Cable length
2.00 m
- Used at
External
- Mounting type
Recess-mount
- Material
Aluminium
- Plug type
PG connector
- Operating voltage
250 V AC
- Factory colour
Black
- Length
1100 mm
- Width
120 mm
- Height
100 mm
IP20
- Cable design
Round
- Version
Cable
- Halogen-free
No
- Cable use
C13/C14 appliances
- Material (details)
Metal
- Weight
1.83
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3138327 Bachmann 350.005 Power strip Black PG connector 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3138327 Bachmann 350.005 Power strip Black PG connector 1 pc(s)
Description
PRIMO 2 Socket strip Aluminium black anodized Black design end caps 1xError current protection switch 6 earthing contact sockets 35° black Cable: 2.0m H05VV-F 3G1,5mm² black with contact angle plug with Bachmann logo packed in the carton
This text is machine translated.
This text is machine translated.
