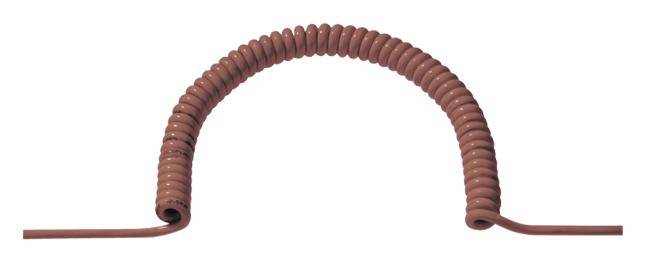

Bachmann 683.880 Current Cable Orange 2.50 m
EAN:
Part number:
Item no:
Technical specifications
- Temperature range laid fixed: -45°C to +90°C
- Temperature range: -35°C to +70°C
- Outer diameter: 13.7 mm
- Spiral length min.: 0.5m
- Spiral length max.: 2.5 m
- Product type
Current Cable
- Cable use
Current
- Version
Cable
- Cable features
Spiral cable
- Cable length
2.50 m
- Cable standard
H07BQ-F 3G 2,5 mm²
- Factory colour
Orange
- Nominal voltage (details)
750 V
- Cable type
H07BQ-F
- Cross section (each core)
2.5 mm²
- Insulation material
PUR
- Connection type
DC (current)
- Nominal voltage
750 V
- Outside Ø
13.7 mm
- Nominal voltage U0
450 V
- Spiral lenght (max.)
2500 mm
- Spiral length (min.)
500 mm
- Max. temperature range (fixed installation)
+90 °C
- Min. temperature range (fixed installation)
-45 °C
- Max. temperature range (flexible installation)
+70 °C
- Min. temperature range (flexible installation)
-35 °C
- No. of leads
3 x
- Core layout
Class 5, stranded
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1838507 Bachmann 683.880 Current Cable Orange 2.50 m
Description
Bachmann 683.880. Cable length: 2.5 m, cable color: orange.
