Highlights & Details

19" socket strip for installation in 19" cabinets, power lead with GST18 plug...

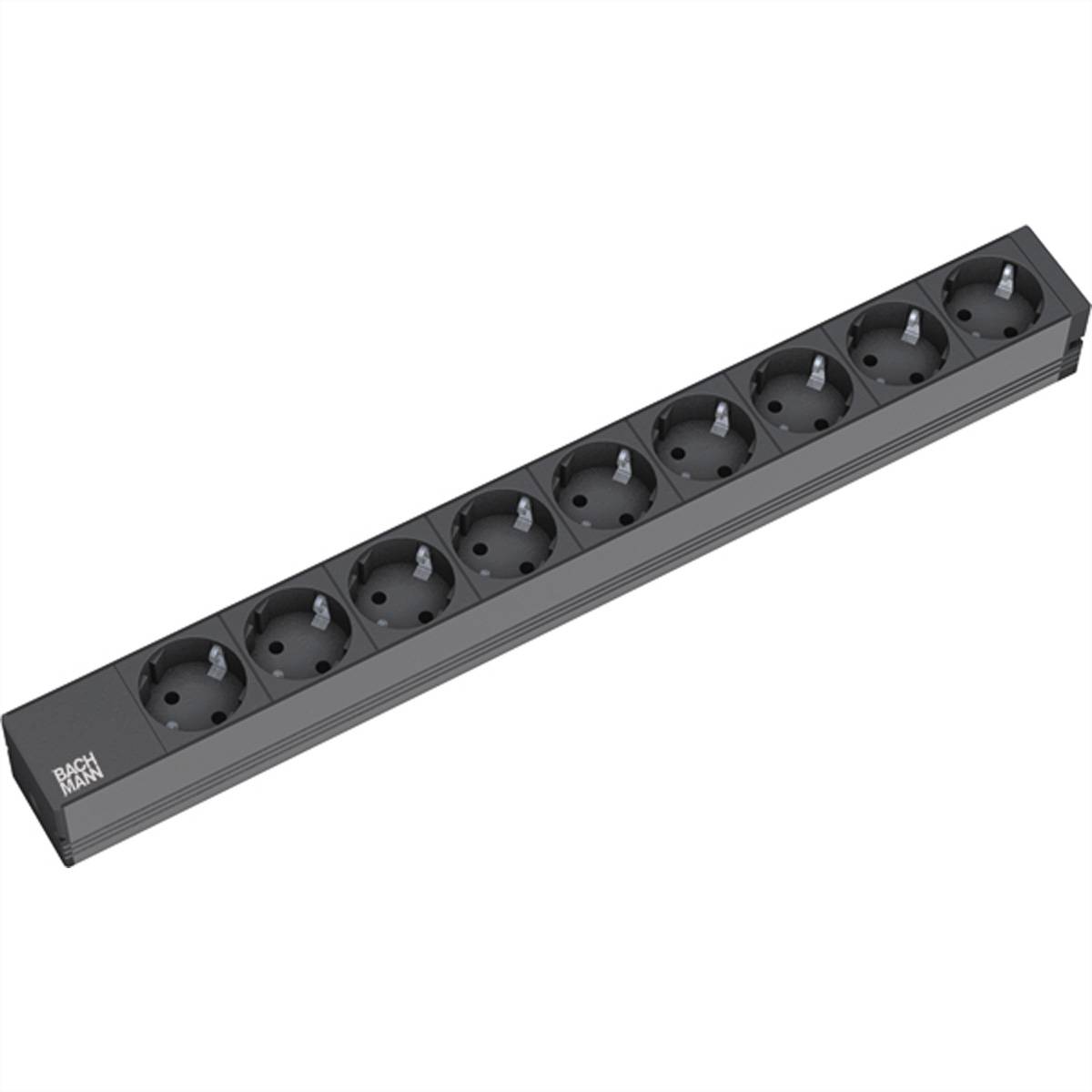

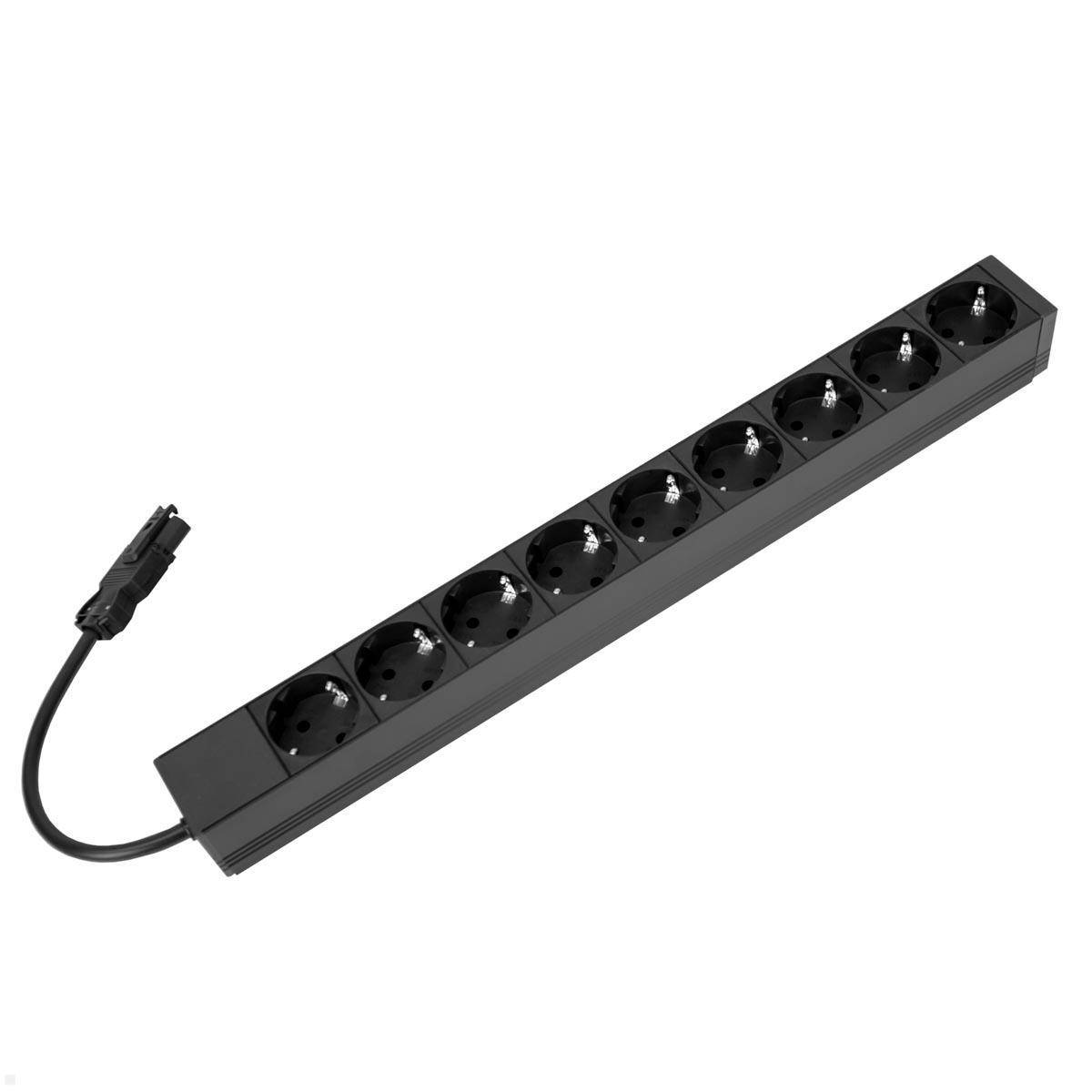

Bachmann 19" socket strip
For installation in 19" cabinets
Location of the sockets: 35°
Profile made of anodized aluminum
Cable with GST18 plug

Technical specifications

Product group: Socket strips
Product type: 19" socket strip
Colour, black
Length 0.2 m
Function: 19'Socket strip
19" rack mount option
Max. load carrying capacity 3600W
Max. voltage 250V/AC
On/off switch: No.
Number of socket pots: 9
Number of outputs/angle 9 / 45 °
Arrangement of the outputs: Series
Socket type: Protective contact, CEE 7/3, type-F
Material (casing): Aluminium
Colour (housing): Black
Connecting cable: H05VV-F 3G 1.5mm²
Connector: Installation plug GST18
Plug type Wieland GST18
Regional use: Germany, Austria, Netherlands
RAL color: Black gray 7021
Height: 44 mm
Width 440 mm
Depth: 44 mm
Weight: 0.88 kg
Packaging height 110 mm
Package width 90 mm
Packaging depth 540 mm
Package weight: 0,758 kg
Gross weight: 0.758

Product type: Socket

Outlets: 9

Factory colour: Black

Content: 1 pc(s)

Cable length: 0.20 m

Keyboard layout: German, QWERTZ

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 3797348 Bachmann 800.2383 Socket Black

User & Safety Instructions

User & Safety Instructions 3797348 Bachmann 800.2383 Socket Black

Description

19" power strip for mounting in 19" cabinets, power lead with GST18 plug 19" power strip 1U for installation in 19" cabinets, incl. installation angle. Location of the sockets: 35°. Profile made of anodized aluminum Cable: 0.2m H05VV-F 3G 1.5mm², black, with GST18 plug. Max. Load: 16A 3600W Colour: Black RAL 7021. Width: 440mm
