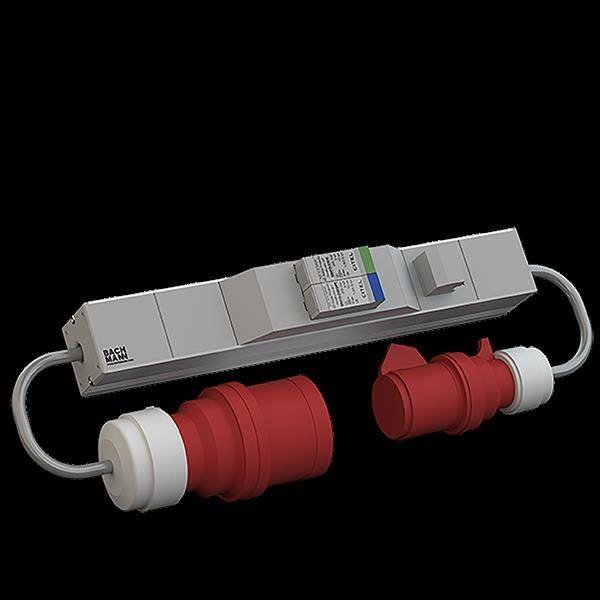

Bachmann 800.2522 Power strip Grey CEE connector 1 pc(s)
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Nominal voltage AC 230 V
- Highest continuous voltage AC 275 V
- Nominal load current 16 A
- Nominal surge current (8/20) (L-N) 15 kA
- Total leakage surge current (8/20) (L+N-PE) 15 kA
- Protection level 0.9 kV
- Protection level L-N 0.9 kV
- Protection level L-PE/N-PE 0.9 kV
- Number of poles: 3
- Mounting type: Module
- With telecommunication contact: Yes
- Signalling at device: Acoustic and visual
- Test class type 3: Yes
- Protection class (IP) IP20
- Product type
Power strip
- Light bulb features
Surge protection
- Outlets
1
- Cable length
1.00 m
- Mounting type
Module
- Surge protection for
Mains outlets
- Plug type
CEE connector
- Operating voltage
400 V
- Factory colour
Grey
- Length
1 m
- Width
220 mm
- Height
120 mm
IP20
- Number of pins
3
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3138337 Bachmann 800.2522 Power strip Grey CEE connector 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3138337 Bachmann 800.2522 Power strip Grey CEE connector 1 pc(s)
Description
ALU 1U VM socket strip 1xovervoltage protection 3-phase 16A with potential-free contact Supply lines: 2x1.0m H05VV-F 5G2,5 mm² with CEE 16A plug and CEE 16A coupling with Bachmann logo incl. holding bracket packed in cardboard box.
This text is machine translated.
