Bachmann 800.2621 Custom module Grey CEE connector 1 pc(s)
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Housing shape: Rectangular
- With On / Off switch: No.
- FI switch: No.
- Line suppression filter: No.
- Voltage surge protection: Yes
- Nominal current: 16 A
- Wire cross-section: 2.5 mm²
- With cover: No.
- Material: Metal
- Material quality: Aluminium
- Halogen-free: No.
- Surface protection: Anodised/anodized
- Design of surface: Matt
- Colour: Aluminium
- Transparent: No.
- Protection class (IP) IP20
- Cable length 1 m.
- Turned central insert: No.
- NEMA code: None
- Product type
Custom module
- Light bulb features
Surge protection
- Outlets
1
- Cable length
1.00 m
- Used at
Internal
- Mounting type
Rack
- Surge protection for
Mains outlets
- Plug type
CEE connector
- Operating voltage
230 V AC
- Factory colour
Grey
- Width
26.1 cm
- Height
4.4 cm
IP20
- Cable design
Round
- Version
Cable
- Halogen-free
No
- Cable use
C13/C14 appliances
- Material (details)
Metal
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3138289 Bachmann 800.2621 Custom module Grey CEE connector 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3138289 Bachmann 800.2621 Custom module Grey CEE connector 1 pc(s)
Description

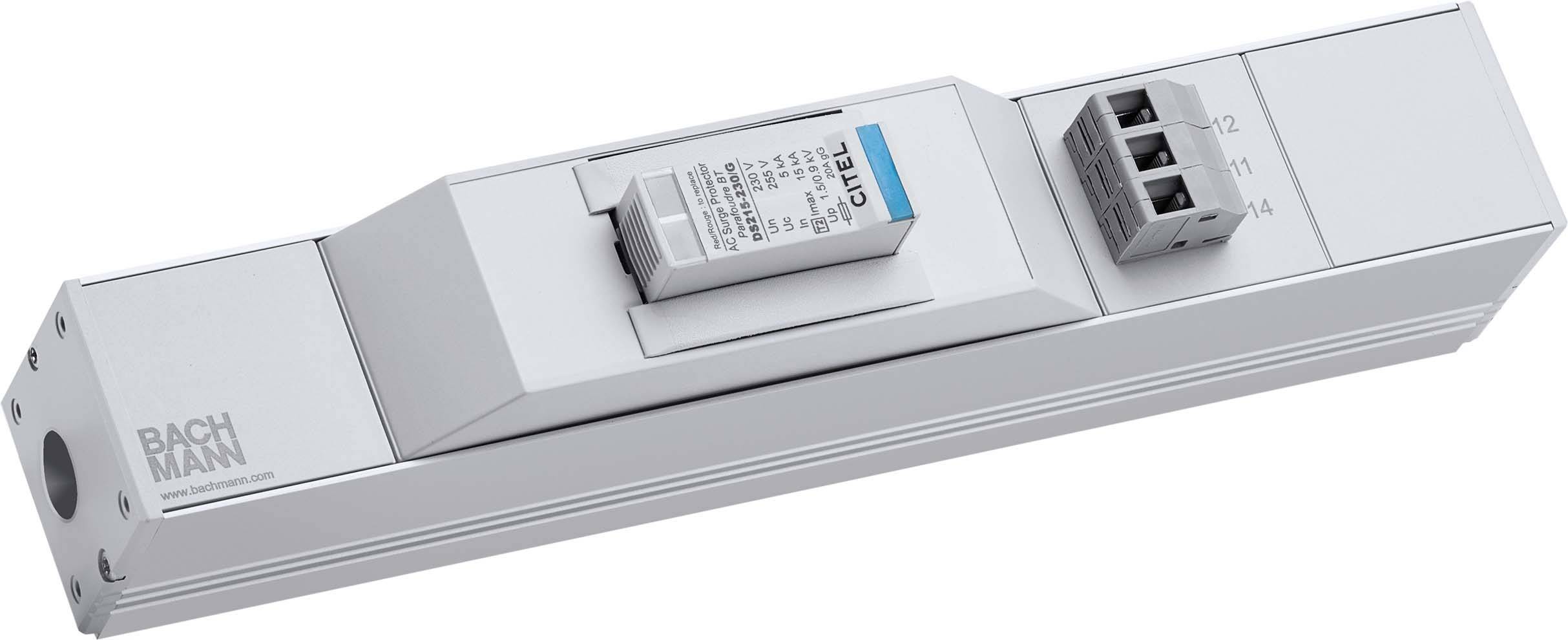

IT PDU Basic inLine SPD 1x16A ÜSS Module SPD Typ3, exchangeable general fault message with terminal contact Current input: 1m H05VV-F 3G2.5mm² with CEE plug 16A blue Current output: 1m H05VV-F 3G2,5 mm² CEE coupling 16A blue incl. holding bracket packed in the carton.
This text is machine translated.
This text is machine translated.
