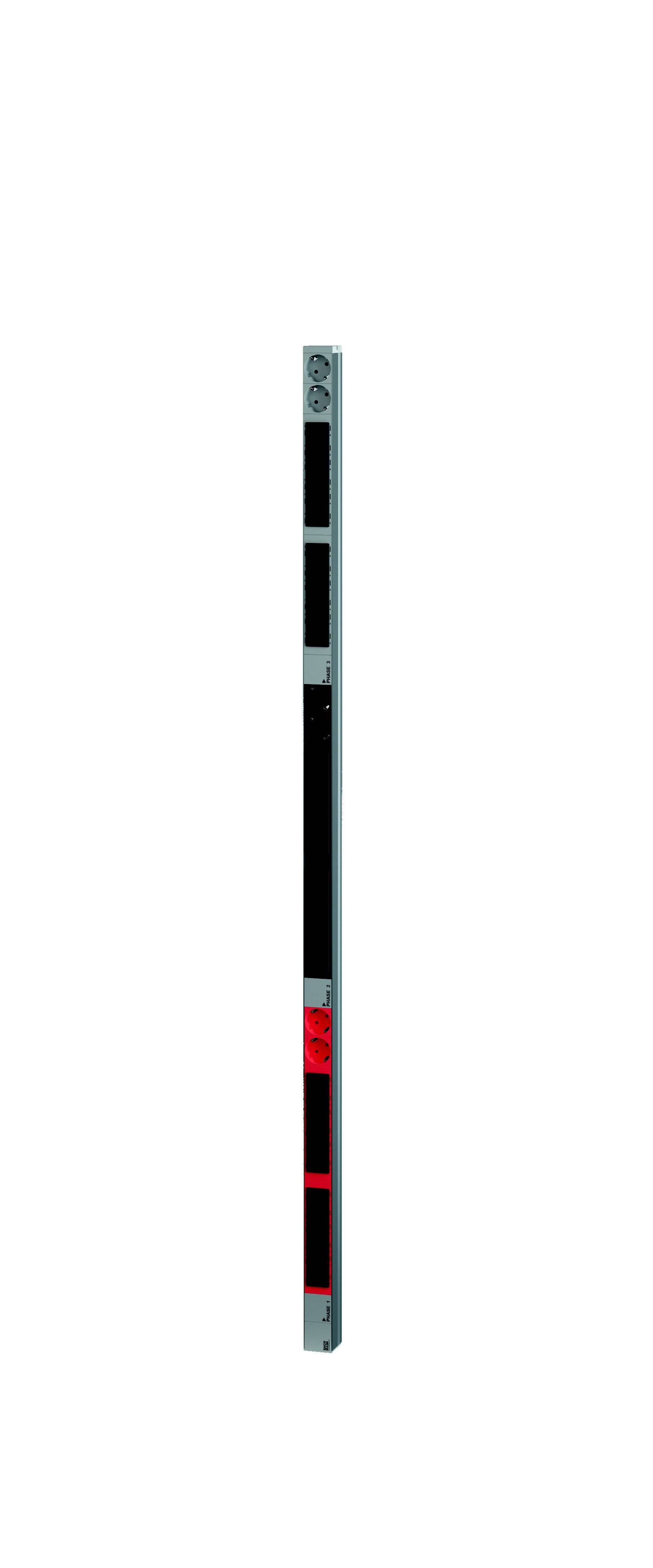

Bachmann 8002342 Power strip Multicolour CEE connector 1 pc(s)
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Mounting dimension (standardized): Other
- Mounting direction: Vertical
- Electrical connection: Connection cable with plug
- Design of the electrical connection: Other
- Cable length 3 m
- Number of Schuko sockets: 6
- Number of C13 sockets: 36
- Number of height units (RUs): 1
- Length: 1458 mm
- Width 44 mm
- Height: 0 mm
- Depth: 47 mm
- Supply voltage 400 V
- Line suppression filter: No.
- Switch option: No
- SNMP: No.
- With display: No.
- With LED indicator: No.
- With fuse: No.
- Ammeter: No.
- Temperature measurement: No.
- With mounting material: Yes
- Product type
Power strip
- Outlets
6
- Cable length
3 m
- Used at
Internal
- Mounting type
Rack
- Material
Aluminium
- Plug type
CEE connector
- No. of IEC C13 10A sockets
36
- Operating voltage
400 V AC
- Factory colour
Multicolour
- Length
1458.00 mm
- Width
44.00 mm
- Height
0.00 mm
- Cable design
Round
- Version
Cable
- Depth
47.00 mm
- Cable use
C13/C14 appliances
- System voltage
400 V
- Weight
3260 g
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3138331 Bachmann 8002342 Power strip Multicolour CEE connector 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3138331 Bachmann 8002342 Power strip Multicolour CEE connector 1 pc(s)
Description
ALU 1U VM socket strip 36xC13 low-power sockets, 6-way power sockets, divided on 3 phases per phase 12xC13 2xCEE7/3 phase marked Phase1/Phase2/Phase3 Supply: 3.0m H05VV-F 5G2,5 mm² with CEE plug 3-phase 16A, incl. retaining bracket, with Bachmann logo packed in carton,
This text is machine translated.
This text is machine translated.
