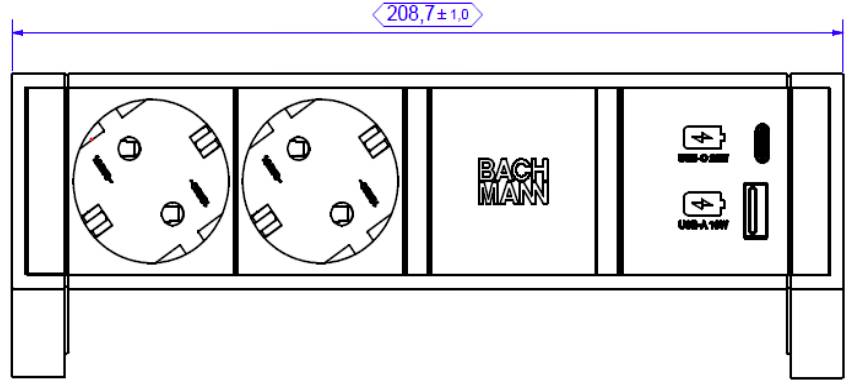

Stroke drawing/circuit diagram
Bachmann 902962 Power strip Aluminium GST18i socket 1 pc(s)
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Housing shape: Rectangular
- Number of Schuko sockets: 2
- With On / Off switch: No.
- FI switch: No.
- Line suppression filter: No.
- Number of USB connections: 2
- Surge protection: No.
- Nominal current: 16 A
- Wire cross-section: 1.5 mm²
- With cover: No.
- Material: Metal
- Material quality: Aluminium
- Halogen-free: No.
- Surface design: Glossy
- Colour: Aluminium
- Transparent: No.
- Protection class (IP) IP20
- Cable length 0.2 m.
- Turned central insert: Yes
- Angle of twisted central insert: 35°
- NEMA code: None
- Product type
Power strip
- Light bulb features
Child safety
- Outlets
2
- Cable length
0.2 m
- Used at
Indoors
- Material
Aluminium
- Plug type
GST18i socket
- Factory colour
Aluminium
IP20
- Halogen-free
No
- Material (details)
Metal
250 V
Black
73
Surface mounting
90 mm
Rectangular
0 mm
FALSE
0 mm
FALSE
209 m
5-35 °C
Aluminium
Other
IP20
FALSE
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3138736 Bachmann 902962 Power strip Aluminium GST18i socket 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3138736 Bachmann 902962 Power strip Aluminium GST18i socket 1 pc(s)
Description
DESK 2 connector strip color: Black, similar to RAL9005 painted with increased touch protection 2xearthing contact sockets black 1xUSB A/C 22W Charger supply 0.2m H05VV-F3G1,5mm² black with GST18 plug incl. holding bracket with Bachmann logo packed in carton
This text is machine translated.
This text is machine translated.
