1/6
Bachmann 906.12640 Socket module Black 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details

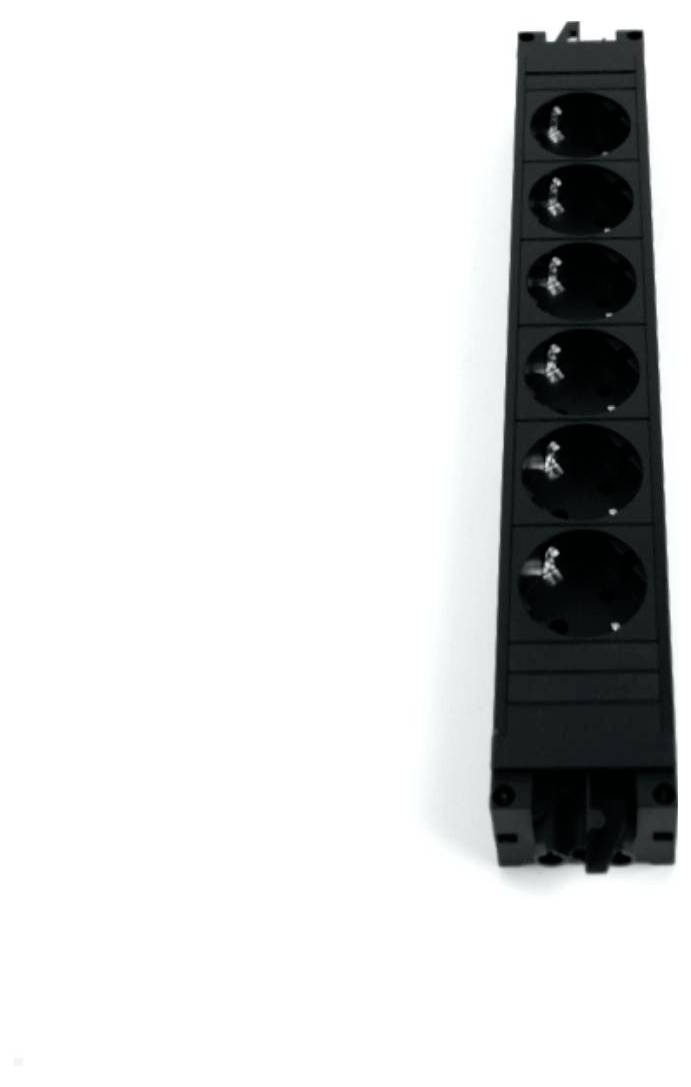

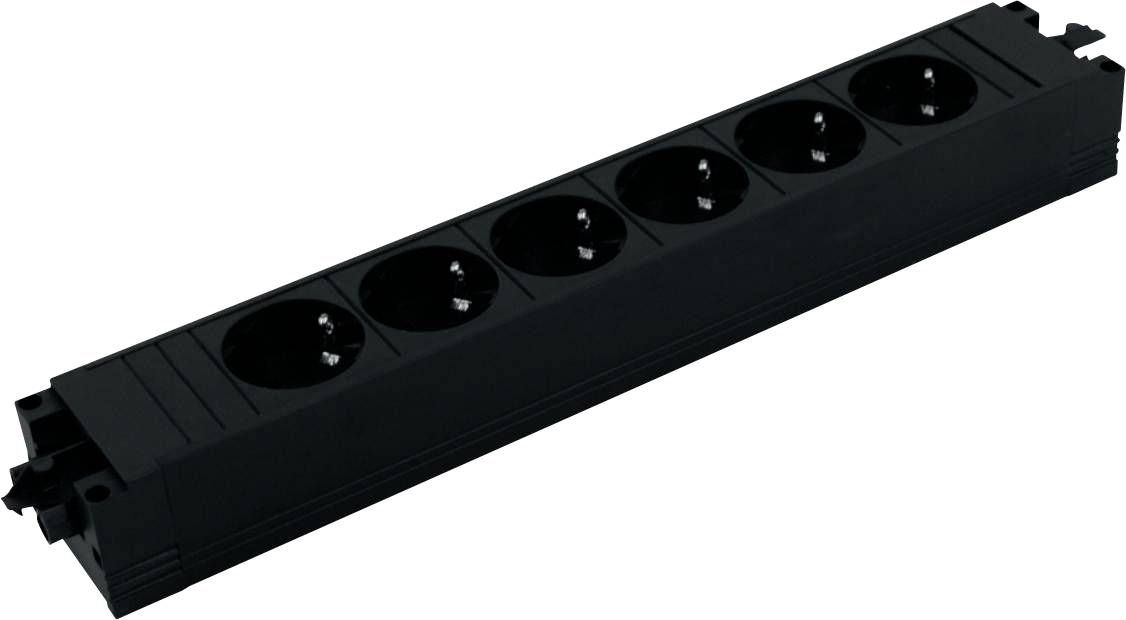

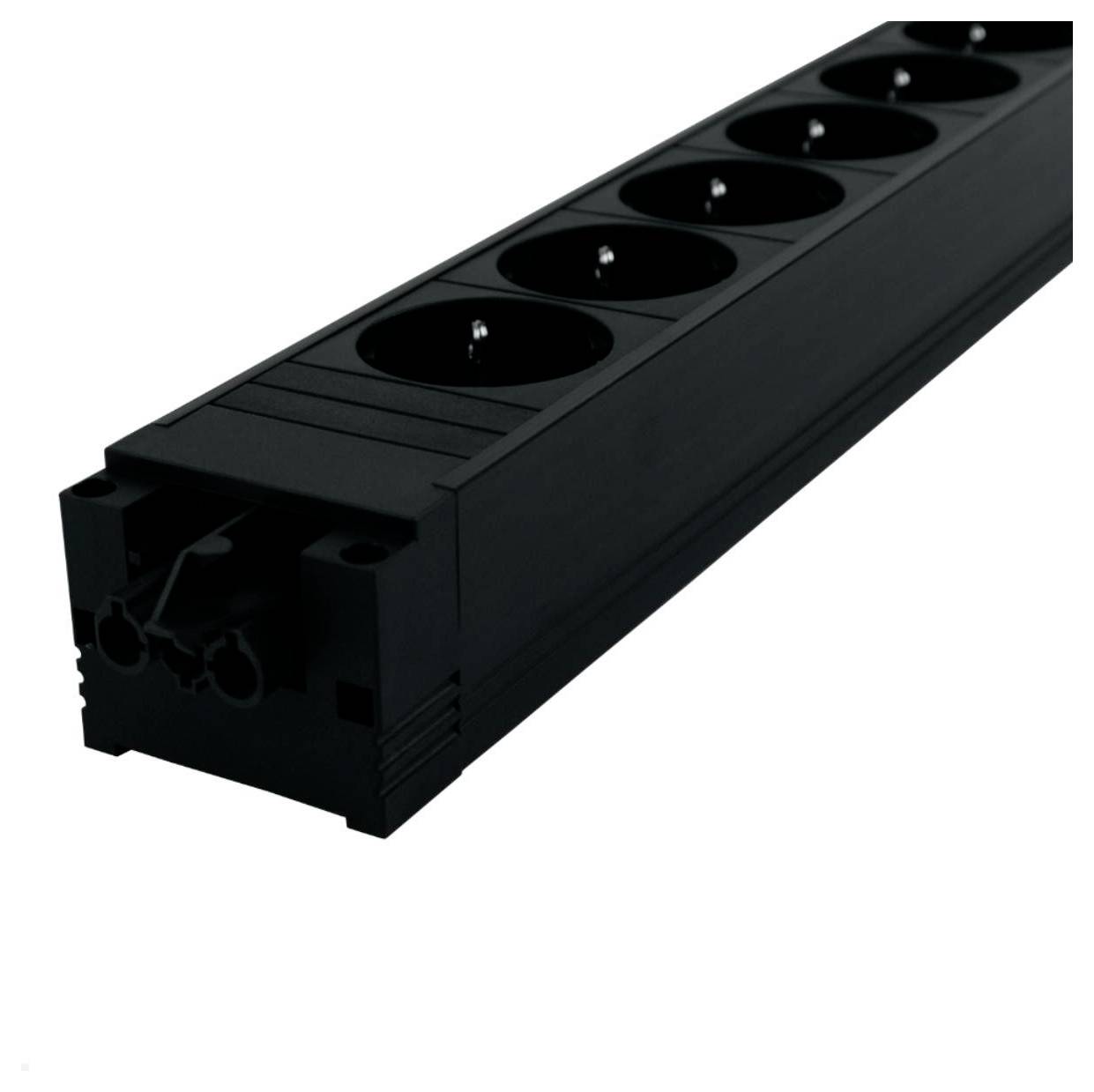

Bachmann 906.12640 Socket module
- AC connector types: Type F power connector type: No connector
- Inside
- 6 AC outputs
- 16 A
- Black
Technical specifications
- Power plug type: No connector
- Supported positioning: Indoors
- Number of AC outputs: 6 AC outputs
- Product type
Socket module
- Outlets
6
- Cable length
0 cm
- Used at
Indoors
- Material
Plastic
- Factory colour
Black
- Length
400 cm
- Width
357.8 mm
- Height
52 mm
IP20
- Cable design
Round
- Version
Cable
- Depth
44 mm
- Cable use
C13/C14 appliances
- Load (max.)
16 A
- Power supply (details)
250 V
- UKCA
yes
- On/off switch
no
Documents & Downloads
Datasheet
Datasheet 3628823 Bachmann 906.12640 Socket module Black 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3628823 Bachmann 906.12640 Socket module Black 1 pc(s)
Description
Multiple socket strip with GST18 receptacle

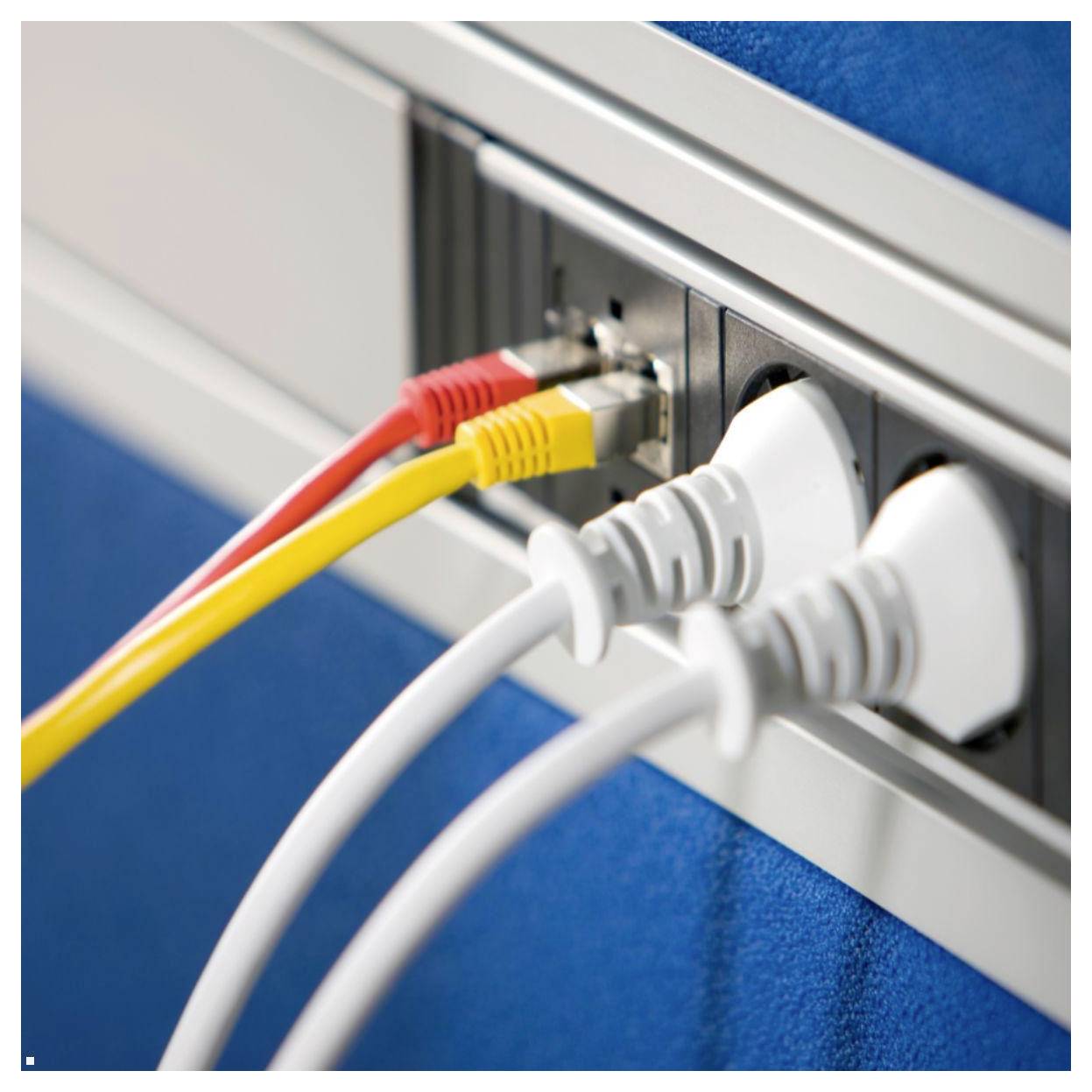

The Bachmann STEP power strip (906.12640) is equipped with Wieland GST18/3 as standard for power supply and can therefore be fed with different line inputs. The multiple socket is equipped with 6 two-pole sockets that are equipped with protective contact. The STEP socket units are versatile, for example, for mounting under table tops, in cable channels and dividers. To do this, various mounting options are available as accessories.
This text is machine translated.
The Bachmann STEP power strip (906.12640) is equipped with Wieland GST18/3 as standard for power supply and can therefore be fed with different line inputs. The multiple socket is equipped with 6 two-pole sockets that are equipped with protective contact. The STEP socket units are versatile, for example, for mounting under table tops, in cable channels and dividers. To do this, various mounting options are available as accessories.
This text is machine translated.
Features
- 6 x earthing contact socket-outlets
- Sockets: 2-pin with earthing contact with increased contact protection, rotated 35°
- 16 A / 250 V~ IP20

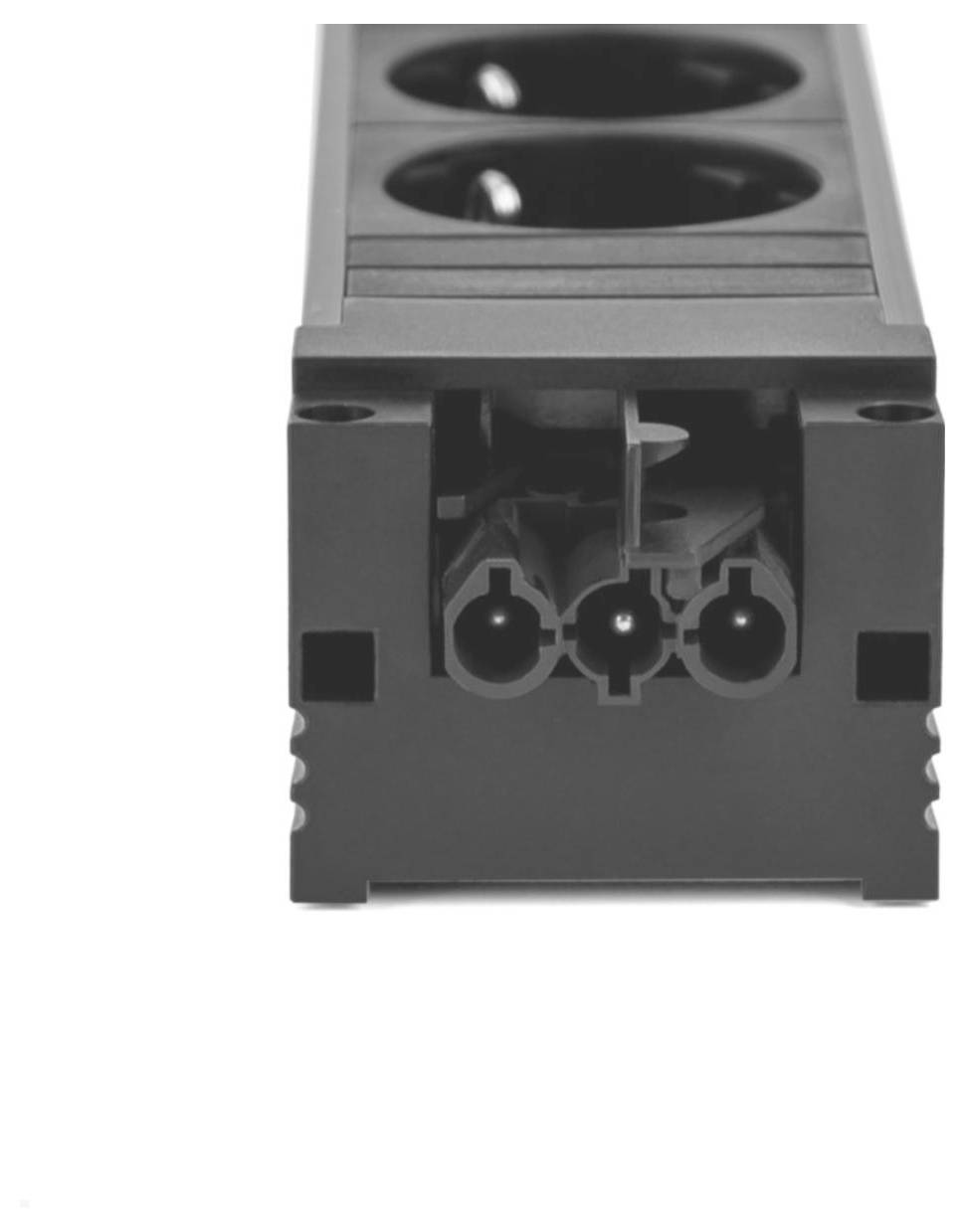

- 1 x Wieland GST18i3, 2-pin with protection contact
- 20 A / V~ IP20
- Power input: Plug GST18/3 black plug

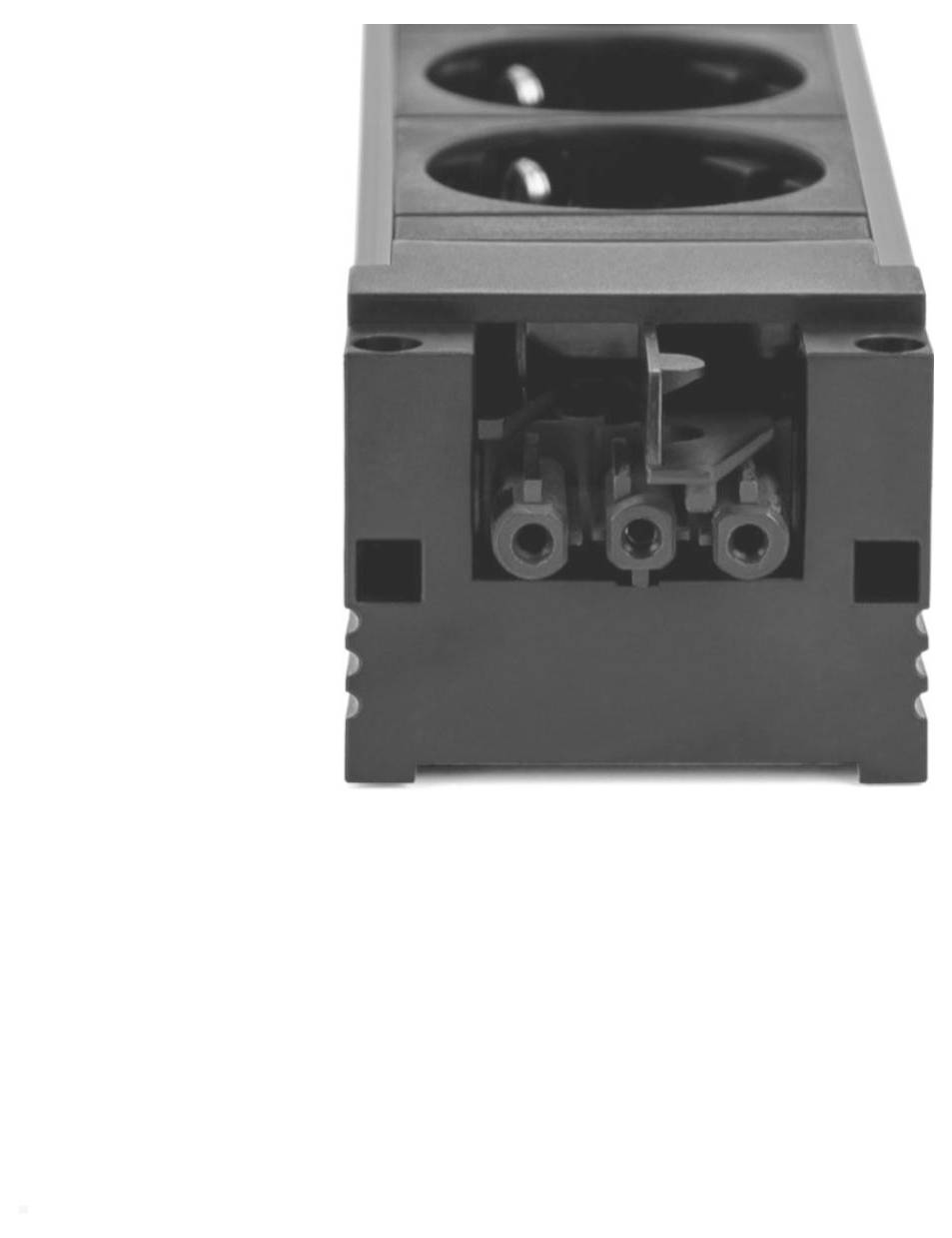

- Power output: Socket GST18 receptacle 3, black
- With 6 bits. End caps
- Cascadable
- Locking lug inserted on both Wieland connectors
