Name: Bachmann 916003 Power strip Aluminium Wieland connector 1 pc(s)
Brand: Bachmann
SKU: 3159001

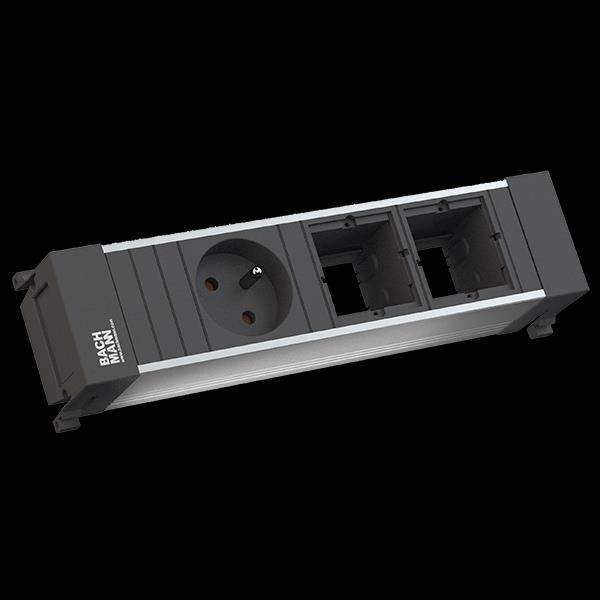

Multiple socket outlet with a round socket and two empty rectangular fields, suitable for installation in furniture or walls.

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Technical specifications

Housing shape: Rectangular
Number of sockets with earthing pin: 1
With On / Off switch: No.
FI switch: No.
Line suppression filter: No.
Surge protection: No.
Nominal current: 16 A
Wire cross-section: 1.5 mm²
With cover: No.
Material: Metal
Material quality: Aluminium
Halogen-free: No.
Surface protection: Anodised/anodized
Surface design: Glossy
Colour: Aluminium
Transparent: No.
Protection class (IP) IP00
Cable length 0.2 m.
Turned central insert: Yes
Angle of twisted central insert: 35°

Product type: Power strip

Outlets: 3

Cable length: 0 cm

Used at: External

Mounting type: Recess-mount

Plug type: Wieland connector

Operating voltage: 230 V AC

Factory colour: Aluminium

Length: 400 cm

Width: 100 mm

Height: 100 mm

: IP00

Cable design: Round

Version: Cable

Depth: 400 mm

Halogen-free: No

Cable use: C13/C14 appliances

Material (details): Metal

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 3159001 Bachmann 916003 Power strip Aluminium Wieland connector 1 pc(s)

User & Safety Instructions

User & Safety Instructions 3159001 Bachmann 916003 Power strip Aluminium Wieland connector 1 pc(s)

Description

Power FRAME socket strip 1xUTE socket France 35° black 2xCustom module empty Power input: 0.2m H05VV-F3G1,5mm² with GST18 plug packed in the box

This text is machine translated.

Description

Power FRAME socket strip 1xUTE socket France 35° black 2xCustom module empty Power input: 0.2m H05VV-F3G1,5mm² with GST18 plug packed in the box
