Bachmann 924.136 Flip switch 924.136 1 pc(s)
Product type
Flip switch
Casing/button colour
Red
Lighting type
incl. lighting
Connection
Screw terminal
Switch/button features
Recess mount
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Product type
Flip switch
- Switch/button features
Recess mount
- Casing/button colour
Red
- Lighting type
incl. lighting
- Print motif
0/1
- Material
Plastic
- Connection
Screw terminal
- Number of pins
1
- Recess depth
30 mm
- Content
1 pc(s)
- Type
924.136
- Type
Off switch, matt
- Nominal current
6 A
- Nominal voltage
250 V
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3789603 Bachmann 924.136 Flip switch 924.136 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3789603 Bachmann 924.136 Flip switch 924.136 1 pc(s)
Description

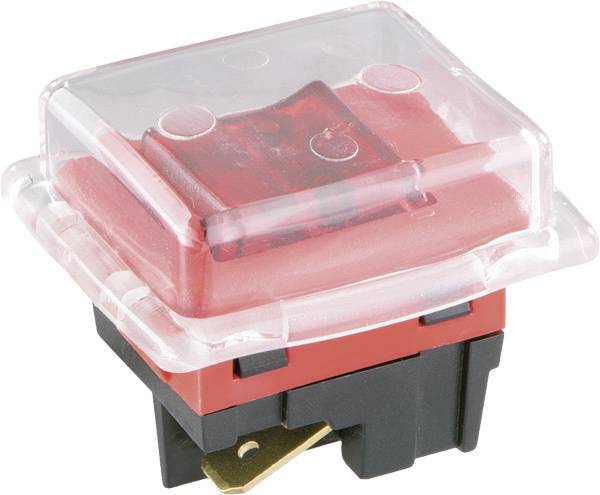

Rocker switch series 8014 16(4) A250V On/off switch, 2-pole, illuminated, housing: Red/rocker: Red snap-in attachment for cut-out 22 x 30 mm, flat plug connections 6.3 mm / screw connections M3, with water protection cap
This text is machine translated.
This text is machine translated.
Hints
Re switch position: content in parentheses describes the n/o and n/c contact constellation
