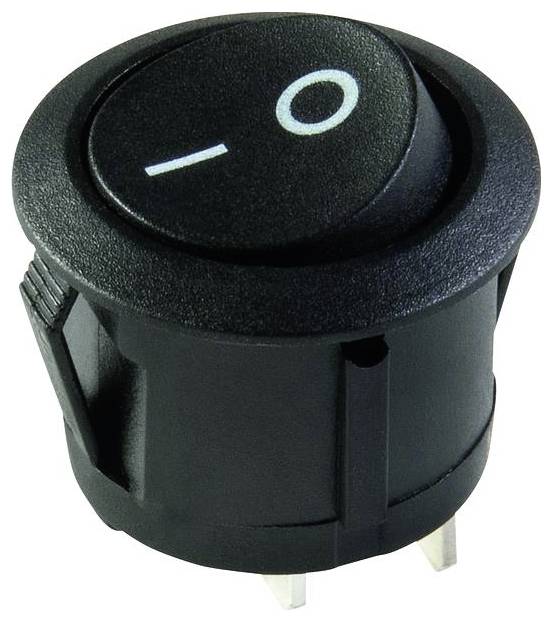

Bachmann 924.191 Flip switch 924.191 1 x Off/On latch 1 pc(s) Bag
Packaging type
Bag
Product type
Flip switch
Casing/button colour
Black
Functions
latch
Lighting type
None
EAN:
Part number:
Item no:
Technical specifications
- Installation depth: 4.8 mm
- Design: On/off switch
- Material: Plastic
- Surface protection: Untreated
- Transparent: No.
- Design of surface: Matt
- Nominal voltage: 230 V
- Nominal current 10 A
- Connection type: Spade connector
- Halogen-free: No.
- Imprint/Identification: Code 0 and 1
- Black enclosure
- Material quality: Other
- Mounting type: Snap-in
- Operating mode: Rocker
- Illumination: None
- Number of controls: 1
- Number of pins: 1-pole
- With cover frame: No.
- Control color: Black
- RAL number (similar) Housing: 9005
- RAL number (similar) Control element: 9005
- Installation cut-out 20 mm
- Packaging type
Bag
- Product type
Flip switch
- Casing/button colour
Black
- Functions
latch
- Lighting type
None
- Switch position
1 x Off/On
- Print motif
0/1
- Material
Plastic
- Connection
CEE 7/16 CEE plug
- Number of pins
1
- Max. temperature
85 °C
- Recess diameter
20 mm
- Recess depth
4.8 mm
- Content
1 pc(s)
- Type
924.191
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3549133 Bachmann 924.191 Flip switch 924.191 1 x Off/On latch 1 pc(s) Bag
Description
interBär rocker switch series 3630
colour black.
Off switch 6.5A, 85°C, 1-pole
Spade connections 4.8 x 0.8 mm,
Mounting dimensions 20 mm Ø
Packed in polybag
This text is machine translated.
colour black.
Off switch 6.5A, 85°C, 1-pole
Spade connections 4.8 x 0.8 mm,
Mounting dimensions 20 mm Ø
Packed in polybag
This text is machine translated.
Hints
Re switch position: content in parentheses describes the n/o and n/c contact constellation
