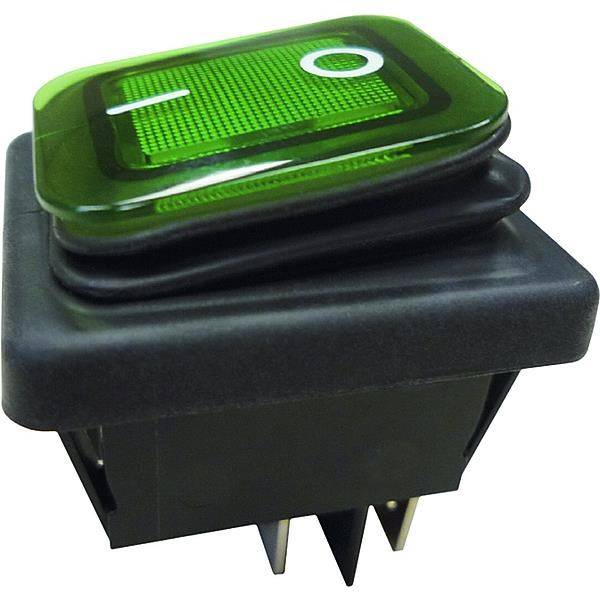

Bachmann 924176 Flip switch 924176 1 x On/Off latch 1 pc(s)
Product type
Flip switch
Casing/button colour
Black
Front panel cut-out
22 x 30 mm
Functions
latch
Lighting type
incl. lighting
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Design: On/off switch
- Operating mode: Rocker
- Number of controls: 1
- Connection type: Spade connector
- Number of pins: 2-pole
- Mounting type: Snap-in
- Installation cut-out 22..30 mm
- Installation depth: 6.3 mm
- With cover frame: No.
- Lighting: Other
- Imprint/Identification: Code 0 and 1
- Nominal voltage: 250 V
- Nominal current: 16 A
- Material: Plastic
- Material quality: Other
- Halogen-free: No.
- Surface protection: Untreated
- Design of surface: Matt
- Transparent: No.
- Color of the control: Green
- Black enclosure
- RAL number (similar) Housing: 9005
- Product type
Flip switch
- Switch/button features
illuminable
- Casing/button colour
Black
- Front panel cut-out
22 x 30 mm
- Functions
latch
- Lighting type
incl. lighting
- Switch position
1 x On/Off
- Print motif
0/I
- Material
Plastic
- Connection
CEE 7/16 CEE plug
- Number of pins
2
- Max. temperature
120 °C
- Recess depth
6.3 mm
- Front panel cut-out
22 x 30 mm
- Content
1 pc(s)
- Type
924176
- Cable design
Round
- Version
Cable
- Factory colour
Black
- Cable use
C13/C14 appliances
- Material (details)
Plastic
- Type
Off switch
- Nominal voltage
250 V
- Operating voltage
250 V
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3134441 Bachmann 924176 Flip switch 924176 1 x On/Off latch 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3134441 Bachmann 924176 Flip switch 924176 1 x On/Off latch 1 pc(s)
Description
Panel-mount rocker switch series 3627 black/green IP65, with illumination 16 (8) A, 250 V, 2-pole, on/off switch, T 120°C snap-in mounting for cut-out.22 x 30 mm Flat plug connections 6.3 mm rocker printing 0 - I
This text is machine translated.
This text is machine translated.
Hints
Re switch position: content in parentheses describes the n/o and n/c contact constellation
