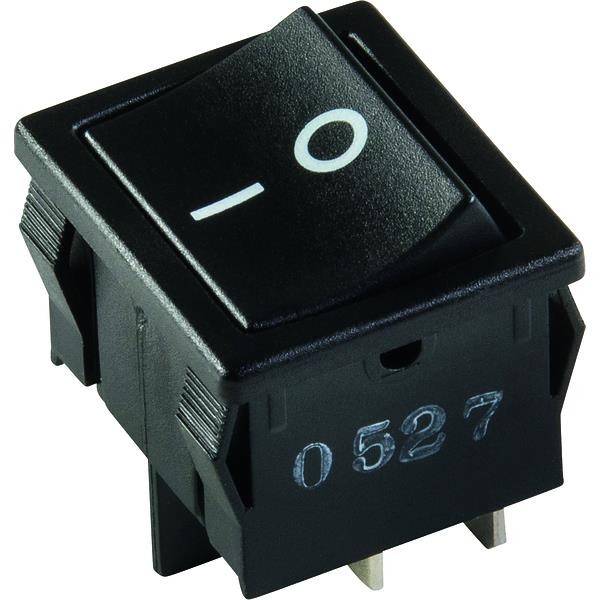

Bachmann 924190 Flip switch 924190 latch 1 pc(s)
Product type
Flip switch
Casing/button colour
Black
Front panel cut-out
22 x 19 mm
Functions
latch
Lighting type
None
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Design: On/off switch
- Operating mode: Rocker
- Number of controls: 1
- Connection type: Spade connector
- Number of pins: 2-pole
- Mounting type: Snap-in
- Installation cut-out 19..22 mm
- Installation depth: 4.8 mm
- With cover frame: No.
- Illumination: None
- Imprint/Identification: Code 0 and 1
- Nominal voltage: 230 V
- Nominal current 10 A
- Material: Plastic
- Material quality: Other
- Halogen-free: No.
- Surface protection: Untreated
- Design of surface: Matt
- Transparent: No.
- Control color: Black
- RAL number (similar) Control element: 9005
- Black enclosure
- RAL number (similar) Housing: 9005
- Product type
Flip switch
- Casing/button colour
Black
- Front panel cut-out
22 x 19 mm
- Functions
latch
- Lighting type
None
- Print motif
0/I
- Material
Plastic
- Connection
Type C CEE 7/16 plug 4.8 mm
- Number of pins
2
- Max. temperature
105 °C
- Recess depth
4.8 mm
- Front panel cut-out
19..22 mm
- Content
1 pc(s)
- Switching current (inductive)
4 A
- Type
924190
- Factory colour
Black
- Material (details)
Plastic
- Type
Off switch
- Nominal voltage
230 V
- Operating voltage
230 V
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3134440 Bachmann 924190 Flip switch 924190 latch 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3134440 Bachmann 924190 Flip switch 924190 latch 1 pc(s)
Description
Rocker switch series 3628 rocker switch, 10 (4) A, 2-pole, on/off switch, installation dimension 22 x 19 mm, T 105°, marking 0-I, blade terminals 4.8 x 0.8 mm, housing black, rocker black switch not illuminated
This text is machine translated.
This text is machine translated.
Hints
Re switch position: content in parentheses describes the n/o and n/c contact constellation
