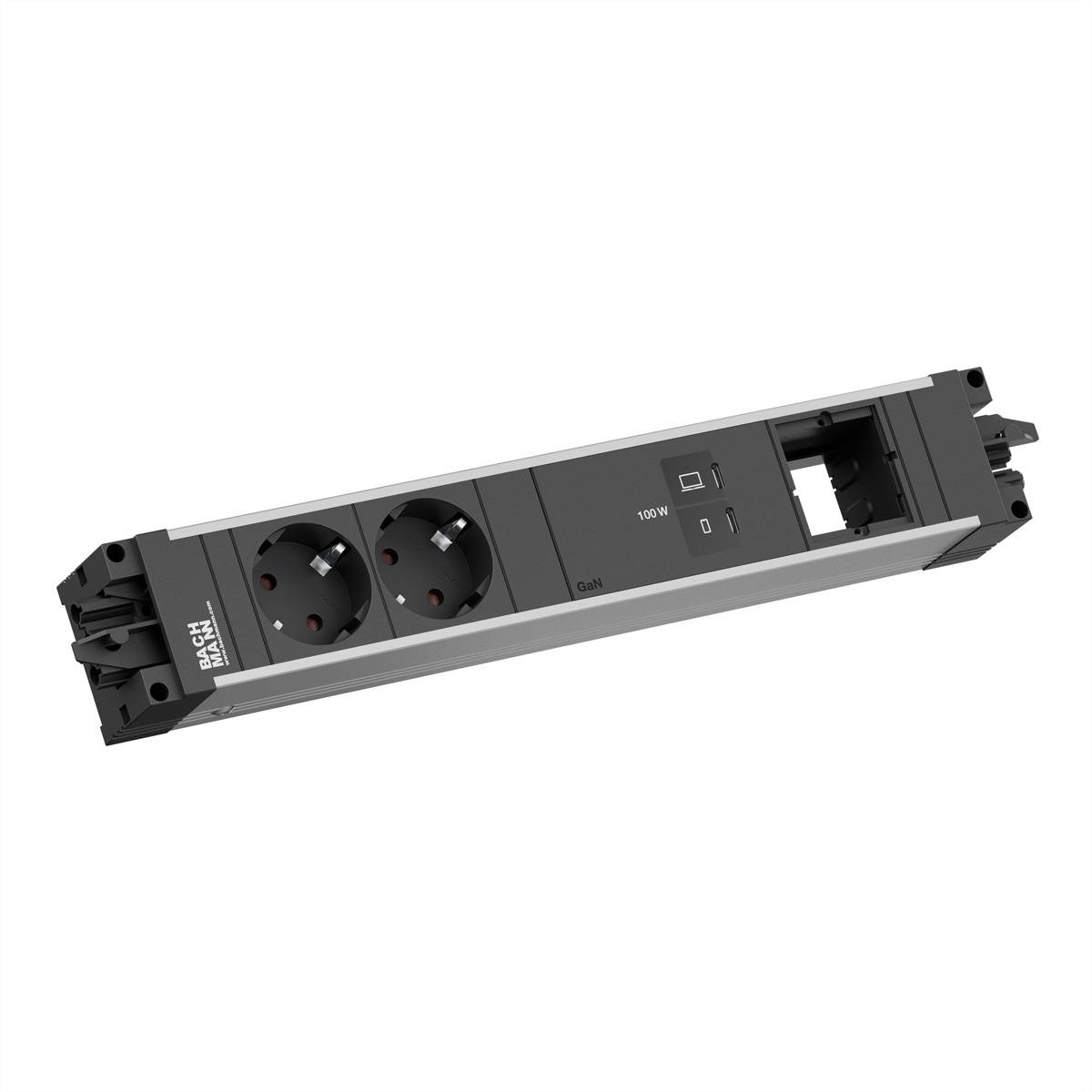

Bachmann BM0023835 Socket Black
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details
Step Alu build-in power strip 2XCEE7/3 1xUSB C/C 100W 1xCM...
- STEP outlet unit
- Power supply as standard with Wieland GST18i3
- Suitable for Germany, Austria, Netherlands
Technical specifications
- Product group: Socket strips
- Product type: STEP outlet unit
- Colour, black
- Length: 0 m
- Number of socket pots: 2
- Socket type: Protective contact, CEE 7/3, type-F
- USB charger: Yes
- Number of USB ports: 2
- Connection plug: Installation connector
- Plug type Wieland GST18
- With increased protection against accidental contact: Yes
- Regional use: Germany, Austria, Netherlands
- Height: 43.7 mm
- Width 54.4 mm
- Depth: 364.8 mm
- Weight 620 g
- Packaging height 90 mm
- Package width 80 mm
- Packaging depth 410 mm
- Package weight: 0,732 kg
- Gross weight: 0.732
- Product type
Socket
- Outlets
2
- Factory colour
Black
- Content
1 pc(s)
- Cable design
Round
- Version
Cable
- Cable use
C13/C14 appliances
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3797398 Bachmann BM0023835 Socket Black
User & Safety Instructions
User & Safety Instructions 3797398 Bachmann BM0023835 Socket Black
Description
Bachmann step Alu 2xCEE7/3 1xUSB BM0023835
<><>similar figure.
Please pay attention to the technical data and the EAN of the product.
Manufacturer:Bachmann Name:STEP ALU 2xCEE7/3 1xUSB C/C 100W 1xCMType:BM0023835Housing shape:rectangular number of safety outlets CEE 7/3 .35 (Type F):2With on/off switch:no Number of connections USB:2Rated current:16 Amit cover:no Material quality:Aluminum finish:Aluminum finish:anodized/anodized color IP code:95RRAL:5:equivalent<><><><>br2xCEE7/3 35° sockets black,
with increased protection contact,
<>Power input and current output with installation connector,
with Bachmann logo,
packed in carton EAN<><>: 4057298221521 br / br / shipping: Bachmann step Alu 2XCEE7/3 1xUSB C/C 100W 1xCM BM0023835, packing unit: 1 pcs., EAN: 4057298221521
This text is machine translated.
Scope of delivery
- Bachmann step Alu 2XCEE7/3
