Name: Bachmann BM0024230 Power strip Aluminium CEE connector 1 pc(s)
Brand: Bachmann
SKU: 3786130

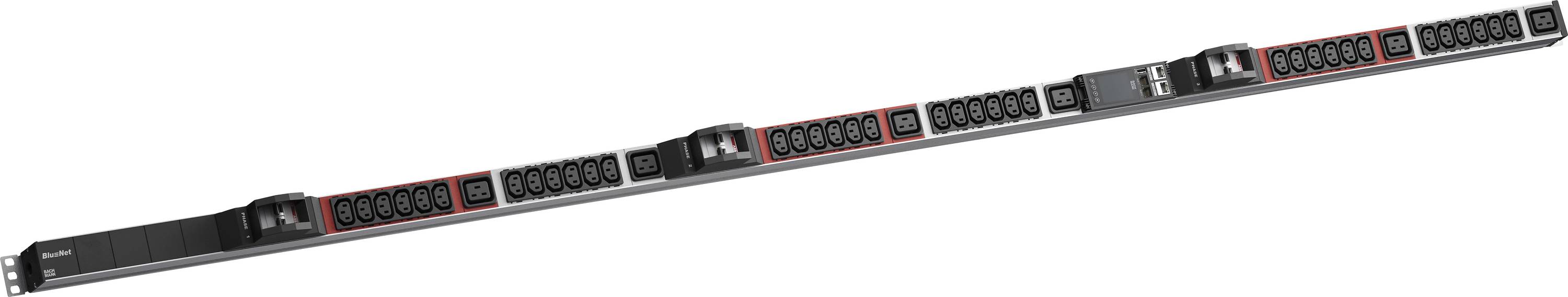

Long black rack power distribution unit with multiple AC outlets and illuminated red digital displays, shown at an angle on a white background

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Technical specifications

Product type: Power strip

Light bulb features: incl. display
incl. counter
Energy consumption metering
Temperature measurement

Cable length: 3 m

Used at: Mains socket

Mounting type: Upright

Plug type: CEE connector

No. of IEC C13 10A sockets: 36

No. of IEC C19 16A sockets: 6

Operating voltage: 400 V

Factory colour: Aluminium

Length: 2011.08 mm

Width: 44 mm

Height: 58.6 mm

Keyboard layout: German, QWERTZ

Nominal current: 32 A

UKCA: yes

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3786130 Bachmann BM0024230 Power strip Aluminium CEE connector 1 pc(s)

Information

Information 3786130 Bachmann BM0024230 Power strip Aluminium CEE connector 1 pc(s)

Description

BN ESSENTIAL Metered Measurement per Phase Input: 32A/400V | 22kW Output: 36xC13 0° Cold device socket 6xC19 90° Cold device socket 6xLS C16A Line circuit breaker divided into three phases, each phase divided into two blocks, each Block protected with an LS supply line: 3.0m | 4mm² with CEE 32A plug, red Integrated function for measuring current, voltage, reactive, apparent, active power, Active power, frequency and power factor During operation exchangeable controller Integrated web server with web interface 2x 1Gbit/s Ethernet connection 1x USB-A connection 2x interface for sensors 2.0" TFT color display incl. bracket; with Bachmann logo Packed in carton

This text is machine translated.
