Bachmann CEE power distributor 349014 349014
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- CEE socket - 16 A: 1x16A5p400V
- CEE socket - 32 A: Without
- CEE socket - 63 A: Without
- CEE socket - 125A: Without
- Protection: LS-switch
- Residual current type: Other
- FI-circuit breaker: Without
- Housing material: Plastic
- Contact material: Other
- Surface treatment contacts: Other
- Feed/connection possibility: Other
- Network connection number: 5
- Diameter Cable Entry: Other
- Type of network connection: Without
- Handling: Portable
- Protection type (IP) IP44
- Military version: No.
- Colour, black
- Height: 90.5 mm
- Width 320 mm
- Depth: 98.5 mm
- Product type
CEE power distributor
- No. of CEE connectors
1
- Type A
CEE plug (5-pin, 32 A)
- Type B
CEE connector (5-pin, 16 A)
- Nominal output voltage
400 V
IP44
- Factory colour
Black
- Weight
1.014
- Dim
(L x W x H) 320 x 320.00 x 90.50 mm
- Length
320 mm
- Width
320.00 mm
- Height
90.50 mm
- Inputs (CEE power distributor)
CEE plug (5-pin, 32 A)
- Outputs (CEE power distributors)
CEE connector (5-pin, 16 A)
- Content
1 pc(s)
- Number of pins
5
- Depth
98.50 mm
- Material
Plastic
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3138369 Bachmann CEE power distributor 349014 349014
User & Safety Instructions
User & Safety Instructions 3138369 Bachmann CEE power distributor 349014 349014
Description

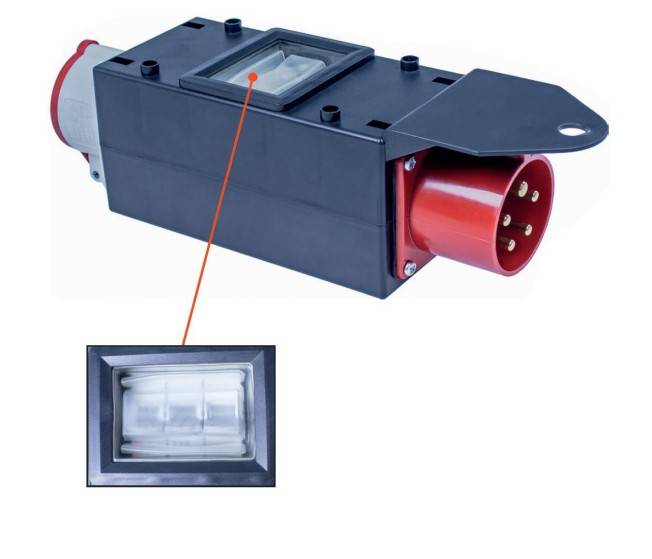

CEE Adapter MIXO NEAR input E : 1 CEE device plug 400 V, 32 A, 5-pin, output A : 1 CEE socket, 400 V, 16 A, 5-pin housing made of special plastic Dimensions LxBxH (mm): 320x98.5x90.5 Weight (g): 1,000 with circuit breaker C 16 A, 3-pin, VDE tested can be switched on again, can be loaded up to 11 kW, tested according to DIN EN 61439, IEC 60309, IP44,
