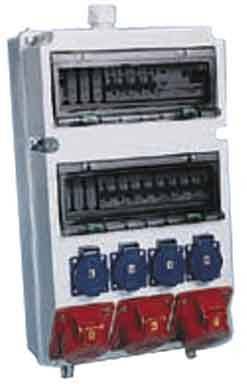

Bachmann CEE power distributor 349015 349015
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- CEE-socket - 16 A: 4x16A5p400V
- CEE socket - 32 A: Without
- CEE socket - 63 A: Without
- CEE socket - 125A: Without
- Number of Schuko sockets: 8
- Security: Other
- Residual current type: Other
- FI-circuit breaker: FI with IFN 0.03 A (standard)
- Housing material: Plastic
- Contact material: Other
- Surface treatment contacts: Other
- Feed/connection options: Feed with connector
- Network connection number: 3
- Diameter Cable Entry: Other
- Type of mains connection: CEE 16 A.
- Cable length: 3.4 m
- Handling: Portable
- Protection type (IP) IP44
- Military version: No.
- Colour, black
- Height: 450 mm
- Width 400 mm
- Depth: 252 mm
- Product type
CEE power distributor
- No. of CEE connectors
4
- Type A
CEE plug (5-pin, 16 A)
- Type B
CEE connector (5-pin, 16 A)
- No. of PG sockets
8
- Nominal output voltage
400 V
IP44
- Cable length
2.00 m
- Factory colour
Black
- Weight
6.62
- Dim
(W x H x D) 400.00 x 450.00 x 252.00 mm
- Width
400.00 mm
- Height
450.00 mm
- Inputs (CEE power distributor)
CEE plug (5-pin, 16 A)
- Outputs (CEE power distributors)
CEE connector (5-pin, 16 A)
- Content
1 pc(s)
- Number of pins
5
- Depth
252.00 mm
- Material
Plastic
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3137913 Bachmann CEE power distributor 349015 349015
User & Safety Instructions
User & Safety Instructions 3137913 Bachmann CEE power distributor 349015 349015
Description
Portable power distributor with ergonomic carry handle Input: 3.4m heavy rubber hose cable H07RN-F 5G2.5 with CEE plug 400V/16A/4-pole Output: 8 x CEE sockets 400V/16A/5-pole with hinged lid 4 x safety sockets 230V/16A (2+2 sockets distributed on 3 phases) Safety: 1 x FI-protection switch 4-pole, 40A, 30mA, type A 400V/16A/max. 11kW IP44 Dimensions (WxHxD): 400x450x252 mm
