Name: BALLUFF Angled light barrier BWL0009 BWL0009 Switch (light-ON/dark-ON) 1 pc(s)
Brand: BALLUFF
SKU: 3418111

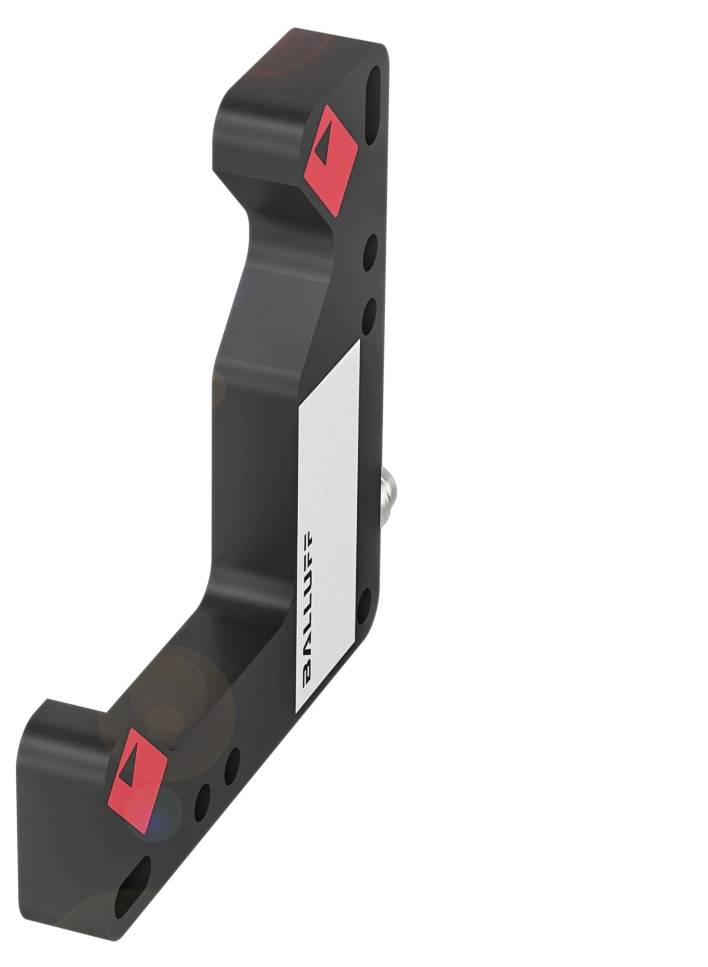

Sensor mount made of black metal with red markings and the inscription 'BALLUFF', for mounting in industrial applications.

Image similar

Packaging type

Piece

Product type

Angled light barrier

Functions

Switch (light-ON/dark-ON)

Max. operating voltage

30.0 V

Connector

M8 (3-pin)

Datasheet (PDF)

EAN:

Part number:

Item no:

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

Balluff BWL0009 Robust light barriers with different light types

Dimensions 10 x 75 x 84 mm
Series D
PNP NO/NC interface
Operating principle: Angled light barrier
Optical functional principle: One-way light barrier

Technical specifications

Main features:Dimension 10 x 75 x 84 mm
Active surface, material: Glass
Connection: Plug connector, M8x1 plug, 3-pin
Series D
Operating voltage Ub 10...30 VDC
Operating principle: Angled light barrier
Optical functional principle: One-way light barrier
Housing material: Zinc, die-cast, painted
Type of light: Infrared
Light spot size: Ø 2.5 mm light emission
PNP NO/NC interface
Beam characteristics: Varied
Additional features:
Operating principle: Angled light barrier
Dimensions 10 x 75 x 84 mm
Mounting: M4 screw
Rated operating voltage Ue DC 24 V
Rated operating current Ie 200 mA
Rated insulation voltage UI 75 V DC
Standby delay TV max.: 200 ms
Operating voltage Ub 10...30 VDC
Usage category: DC-13
Load capacity max. at Ue 1 µF
Residual current l max. 50 µA
Residual ripple max. (% of Ue): 10%
Switching frequency 2000 Hz
Connection: Connector, M8x1 plug, 3-|pin
Short-circuit protection: Yes
Reverse polarity protection: Yes
Active surface, material: Glass
Housing material: Zinc, die-cast, painted
Setting option: Light/dark switching|sensitivity
Contacts, surface protection: Gold-plated
Surface protection: Painted
Series D
Shape: Angle|straight connection
Display: Output function - LED yellow|LED green: Operating voltage
Potentiometer 270° (2x)
Shutdown delay toff max.: 0.25 ms
ON delay max.: 0.25 ms
Idle current IO max. at Ue 35 mA
Hysteresis H max. 0.3 mm
MTTF (40 °C) Material 307 a
Exchange option protected Recording range/Measuring range: Yes

Packaging type: Piece

Product type: Angled light barrier

Type: BWL0009

Functions: Switch (light-ON/dark-ON)

Operating voltage: 24

Min. operating voltage: 10.0 V

Max. operating voltage: 30.0 V

Operating voltage: 10.0 - 30.0 V

Contact type: 1 breaker
1 maker

Outputs: PNP

Switching frequency: 2000 Hz

Connector: M8 (3-pin)

Enclosure material: Zinc

Material properties: Die-cast

Transmitter type: LED IR

: IP67

Min. temperature: -10 °C

Max. temperature: 60 °C

Length: 84.00 mm

Width: 10.00 mm

Height: 75.00 mm

Depth: 84 m

Dim: (L x W x H) 84.00 x 10.00 x 75.00 mm

Content: 1 pc(s)

Nominal voltage: 30.0 V

UKCA: yes
