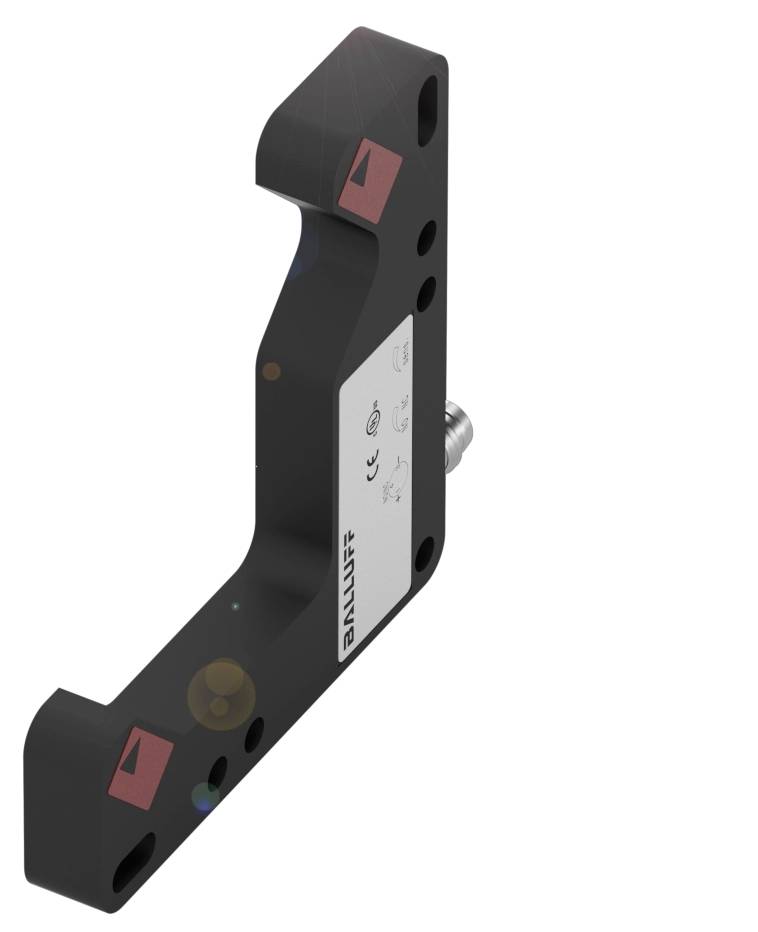

Name: BALLUFF Angled light barrier BWL000H BWL000H 1 pc(s)
Brand: BALLUFF
SKU: 3418144

Image similar

Packaging type

Piece

Product type

Angled light barrier

Max. operating voltage

30.0 V

Connector

M8 (3-pin)

Type

BWL000H

Datasheet (PDF)

EAN:

Part number:

Item no:

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

Balluff BWL000H Robust light barriers with different light types

Dimensions 10 x 75 x 84 mm
Series D
NPN NO/NC interface
Operating principle: Angled light barrier
Optical functional principle: One-way light barrier

Technical specifications

Main features:Dimension 10 x 75 x 84 mm
Active surface, material: Glass
Connection: Plug connector, M8x1 plug, 3-pin
Series D
Operating voltage Ub 10...30 VDC
Operating principle: Angled light barrier
Optical functional principle: One-way light barrier
Housing material: Zinc, die-cast, painted
LED red light
Light spot size: Ø 1.7 mm light emission
Brand: Global
NPN NO/NC interface
Beam characteristics: Varied
Additional features:
Operating principle: Angled light barrier
Dimensions 10 x 75 x 84 mm
Mounting: M4 screw
Rated operating voltage Ue DC 24 V
Rated operating current Ie 200 mA
Rated insulation voltage UI 75 V DC
Standby delay TV max.: 200 ms
Operating voltage Ub 10...30 VDC
Usage category: DC-13
Load capacity max. at Ue 1 µF
Residual current l max. 50 µA
Residual ripple max. (% of Ue): 10%
Switching frequency 1500 Hz
Connection: Connector, M8x1 plug, 3-|pin
Short-circuit protection: Yes
Reverse polarity protection: Yes
Active surface, material: Glass
Housing material: Zinc, die-cast, painted
Setting option: Sensitivity|light/dark switching
Contacts, surface protection: Gold-plated
Surface protection: Painted
Brand: Global
Series D
Shape: Angle|straight connection
Display: Output function - yellow LED
Potentiometer 270° (2x)
Shutdown delay toff max.: 0.33 ms
ON delay max.: 0.33 ms
Idle current IO max. at Ue 35 mA
Voltage drop Ud max. at Ie 2.5 V
Hysteresis H max. 0.15 mm
MTTF (40 °C) Material 316 a
Exchange option protected Recording range/Measuring range: Yes

Packaging type: Piece

Product type: Angled light barrier

Type: BWL000H

Operating voltage: 24

Min. operating voltage: 10.0 V

Max. operating voltage: 30.0 V

Operating voltage: 10.0 - 30.0 V

Contact type: 1 breaker
1 maker

Outputs: NPN

Switching frequency: 1500 Hz

Connector: M8 (3-pin)

Enclosure material: Zinc

Material properties: Die-cast

Transmitter type: LED red

: IP67

Min. temperature: -10 °C

Max. temperature: 60 °C

Length: 84.00 mm

Width: 10.00 mm

Height: 75.00 mm

Dim: (L x W x H) 84.00 x 10.00 x 75.00 mm

Content: 1 pc(s)

Nominal voltage: 30.0 V

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 3418144 BALLUFF Angled light barrier BWL000H BWL000H 1 pc(s)

User & Safety Instructions

User & Safety Instructions 3418144 BALLUFF Angled light barrier BWL000H BWL000H 1 pc(s)

Description

The angular light barriers from Balluff are a consistent further development of the fork light barriers for more demanding applications. Their special housing design and radiation geometry makes it possible to start and detect objects from almost all directions. Installation is very simple even in difficult spaces: Transmitter and receiver are firmly aligned to each other. Series=D, dimension=10 x 75 x 84 mm, interface=NPN NO/NC contact (NO/NC), operating principle=angle light barrier, operational principle optical=one-way light barrier, beam characteristic=diverse, light type=LED red light, light spot size=Ø 1.7 mm light emission, connection=connector, M8x1-plug, 3-pin, casing material=zinc, Die-cast, active surface, material=glass, operating voltage Ub=10...30 VDC, approval/conformity=CecULusEACWEEE, Brand=Global

This text is machine translated.
