Name: BALLUFF Angled light barrier BWL001C BWL001C 1 pc(s)
Brand: BALLUFF
SKU: 3418112

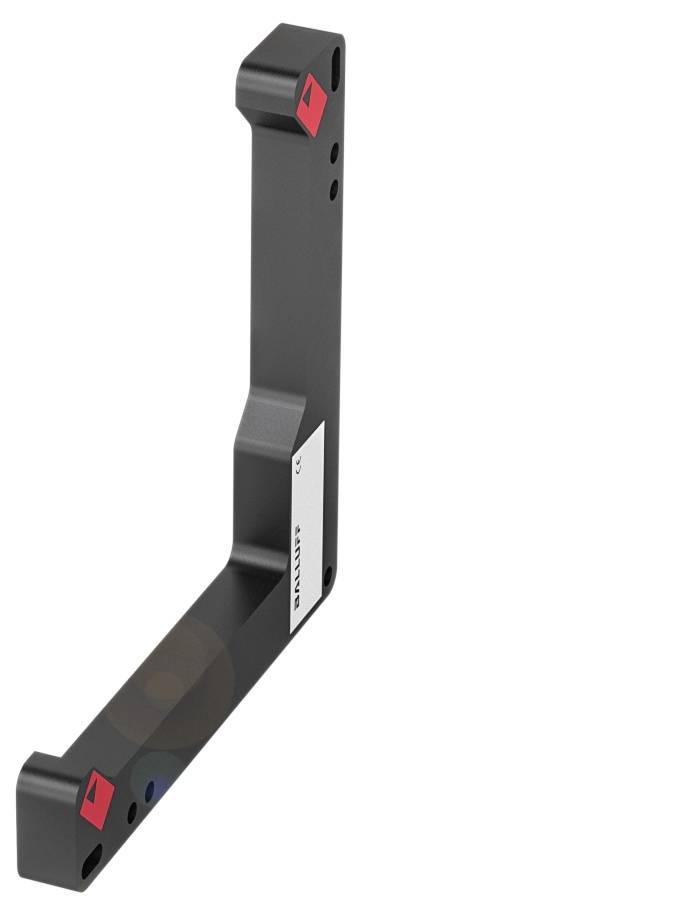

An L-shaped, black metal part with red markings, possibly a machine component, with a label on the side.

Image similar

Packaging type

Single

Product type

Angled light barrier

Max. operating voltage

30.0 V

Connector

M8 (3-pin)

Type

BWL001C

Datasheet (PDF)

EAN:

Part number:

Item no:

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

Balluff BWL001C Robust angular light barriers with different light types

Dimensions 12 x 125 x 134 mm
Series D
PNP NO/NC interface
Operating principle: Angled light barrier
Optical functional principle: One-way light barrier

Technical specifications

Main features:Dimension 12 x 125 x 134 mm
Active surface, material: Glass
Connection: Plug connector, M8x1 plug, 3-pin
Series D
Operating voltage Ub 10...30 VDC
Operating principle: Angled light barrier
Optical functional principle: One-way light barrier
Housing material: Zinc, die-cast, painted
Type of light: Red light
Light spot size: Ø 2.5 mm light emission
PNP NO/NC interface
Beam characteristics: Varied
Additional features:
Operating principle: Angled light barrier
Dimensions 12 x 125 x 134 mm
Mounting: M4 screw
Rated operating voltage Ue DC 24 V
Rated operating current Ie 200 mA
Rated insulation voltage UI 75 V DC
Standby delay TV max.: 200 ms
Operating voltage Ub 10...30 VDC
Usage category: DC-13
Load capacity max. at Ue 0.5 µF
Residual current l max. 50 µA
Residual ripple max. (% of Ue): 10%
Switching frequency 5000 Hz
Connection: Connector, M8x1 plug, 3-|pin
Short-circuit protection: Yes
Reverse polarity protection: Yes
Active surface, material: Glass
Housing material: Zinc, die-cast, painted
Setting option: Light/dark switching|sensitivity
Contacts, surface protection: Gold-plated
Surface protection: Painted
Series D
Shape: Angle|straight connection
Display: Output function - yellow LED
Potentiometer 270° (2x)
Shutdown delay toff max.: 0.1 ms
ON delay max.: 0.1 ms
Idle current IO max. at Ue 35 mA
Hysteresis H max. 0.15 mm
MTTF (40 °C) Material 307 a
Exchange option protected Recording range/Measuring range: Yes

Packaging type: Single

Product type: Angled light barrier

Type: BWL001C

Operating voltage: 24

Min. operating voltage: 10.0 V

Max. operating voltage: 30.0 V

Operating voltage: 10.0 - 30.0 V

Contact type: 1 breaker
1 maker

Outputs: PNP

Switching frequency: 5000 Hz

Connector: M8 (3-pin)

Enclosure material: Zinc

Material properties: Die-cast

: IP67

Min. temperature: -10 °C

Max. temperature: 60 °C

Length: 134.00 mm

Width: 12.00 mm

Height: 125.00 mm

(Ø): 2.5 m

Dim: (Ø x H) 2.5 m x 125.00 mm

Content: 1 pc(s)

Nominal voltage: 30.0 V

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 3418112 BALLUFF Angled light barrier BWL001C BWL001C 1 pc(s)

User & Safety Instructions

User & Safety Instructions 3418112 BALLUFF Angled light barrier BWL001C BWL001C 1 pc(s)

Description

The angular light barriers from Balluff are a consistent further development of the fork light barriers for more demanding applications. Their special housing design and radiation geometry makes it possible to start and detect objects from almost all directions. Installation is very simple even in difficult spaces: Transmitter and receiver are firmly aligned to each other. Series=D, dimension=12 x 125 x 134 mm, interface=PNP NO/NC contact (NO/NC), operating principle=angle light barrier, operational principle optical=one-way light barrier, beam characteristic=diverse, light type=red light, light spot size=Ø 2.5 mm light output, connection=connector, M8x1-plug, 3-pin, casing material=zinc, Die-cast, active surface, material=glass, operating voltage Ub=10...30 VDC, approval/conformity=CecULusWEEE
