Name: BALLUFF Angled light barrier BWL001L BWL001L Dark-ON 1 pc(s)
Brand: BALLUFF
SKU: 3416789

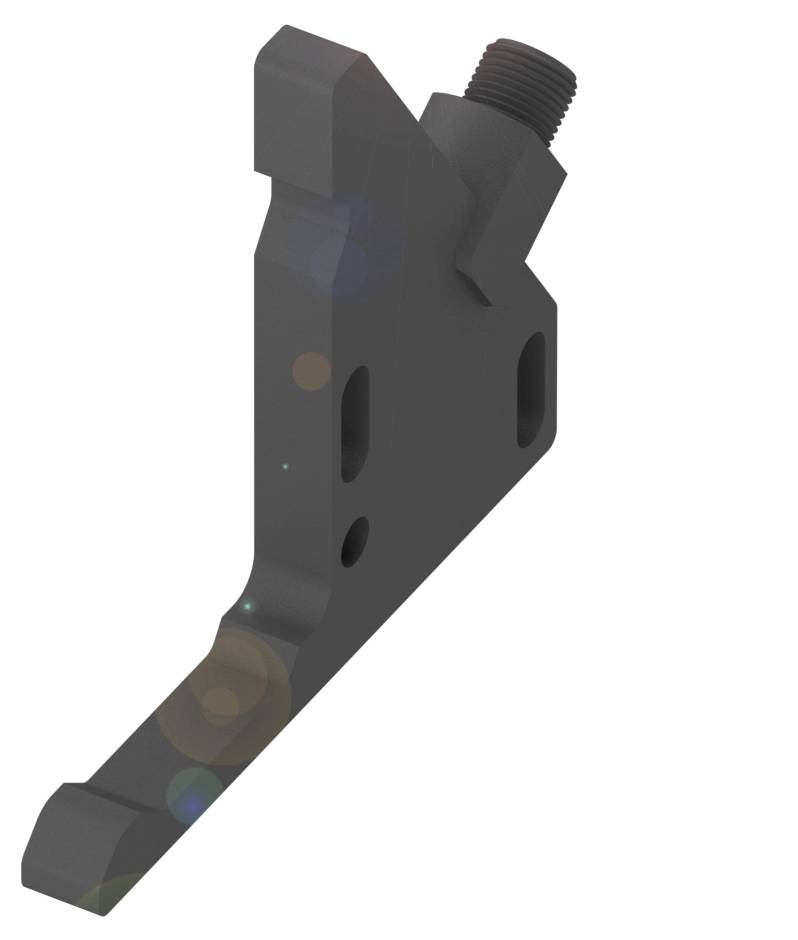

A black, angular machine part with a side screw and openings, presumably for industrial applications.

Image similar

Product type

Angled light barrier

Functions

Dark-ON

Max. operating voltage

30.0 V

Connector

M12 (4-pin)

Type

BWL001L

Datasheet (PDF)

EAN:

Part number:

Item no:

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

Balluff BWL001L Robust angle light barrier with different light types

Dimensions 14 x 90 x 113 mm
Series A
PNP NO interface
Operating principle: Angled light barrier
Optical functional principle: One-way light barrier

Technical specifications

Main features:Dimension 14 x 90 x 113 mm
Active surface, material: Epoxy resin
Connection: Connector, M12x1 connector, 4-pin
Series A
Operating voltage Ub 10...30 VDC
Operating principle: Angled light barrier
Optical functional principle: One-way light barrier
Housing material: Stainless steel (1.4408), powder coated
Type of light: Infrared
Light spot size: Ø 3.0 mm light emission
PNP NO interface
Beam characteristics: Varied
Additional features:
Operating principle: Angled light barrier
Dimensions 14 x 90 x 113 mm
Mounting: M6 screw
Output resistance Ra: 33.0 kOhm
Rated operating voltage Ue DC 24 V
Rated operating current Ie 200 mA
Rated insulation voltage UI 75 V DC
Standby delay TV max.: 100 ms
Operating voltage Ub 10...30 VDC
Usage category: DC-13
Load capacity max. at Ue 0.5 µF
Residual current l max. 50 µA
Residual ripple max. (% of Ue): 15%
Switching frequency 1000 Hz
Protection class: II
Connection: Connector, M12x1 connector, 4-|pin
Short-circuit protection: Yes
Reverse polarity protection: Yes
Exchange possibility protected: Yes
Active surface, material: Epoxy resin
Housing material: Stainless steel (1.4408),|powder coated
Contacts, surface protection: Gold-plated
Series A
Shape: Angle|connection 30°
Display: Output function - LED yellow|LED green: Operating voltage
Shutdown delay toff max.: 0.5 ms
ON delay max.: 0.5 ms
Idle current IO max. at Ue 35 mA
Voltage drop Ud max. at Ie 2.5 V
Surface protection Mechanical characteristics: Powder-coated

Product type: Angled light barrier

Type: BWL001L

Functions: Dark-ON

Operating voltage: 24

Min. operating voltage: 10.0 V

Max. operating voltage: 30.0 V

Operating voltage: 10.0 - 30.0 V

Contact type: 1 maker

Outputs: PNP

Switching frequency: 1000 Hz

Connector: M12 (4-pin)

Enclosure material: Stainless steel

Material properties: powder-coated

Transmitter type: LED IR

: IP67

Min. temperature: -10 °C

Max. temperature: 60 °C

Length: 113.00 mm

Width: 14.00 mm

Height: 90.00 mm

Depth: 113 m

Dim: (L x W x H) 113.00 x 14.00 x 90.00 mm

Content: 1 pc(s)

Nominal voltage: 30.0 V

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 3416789 BALLUFF Angled light barrier BWL001L BWL001L Dark-ON 1 pc(s)

User & Safety Instructions

User & Safety Instructions 3416789 BALLUFF Angled light barrier BWL001L BWL001L Dark-ON 1 pc(s)

Description

The angular light barriers from Balluff are a consistent further development of the fork light barriers for more demanding applications. Their special housing design and radiation geometry makes it possible to start and detect objects from almost all directions. Installation is very simple even in difficult spaces: Transmitter and receiver are firmly aligned to each other. Series=A, dimension=14 x 90 x 113 mm, interface=PNP NO, operational principle=angle light barrier, operational principle optical=one-way light barrier, beam characteristic=diverse, light type=infrared, light spot size=Ø 3.0 mm light output, connection=connector, M12x1 connector, 4-pin, housing material=stainless steel (1.4408), Active surface, material=epoxy resin, operating voltage Ub=10...30 VDC, approval/conformity=CecULusWEEE
