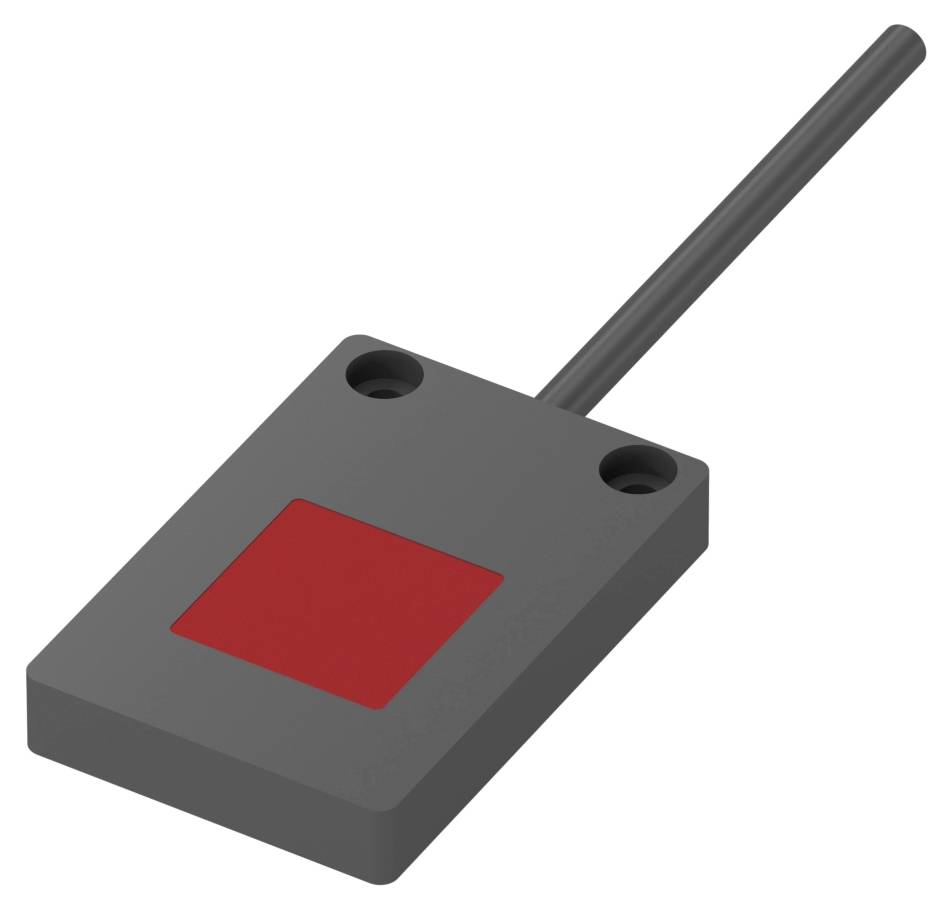

Name: BALLUFF BAE000E Lighting 1 pc(s) (L x W x H) 64.5 x 43 x 9.5 mm
Brand: BALLUFF
SKU: 3416475

Highlights & Details

BALUFF BAE000E background lighting

Connection: Cable with connector, M12x1 connector, 4-pin, 0.3 m
Dimensions 43 x 9.5 x 64.5 mm
Design: Background illumination
Rated operating voltage Ue DC 24 V
Power consumption max. 208 mA

Technical specifications

Main features:Dimension 43 x 9.5 x 64.5 mm
Angle of radiation 40 ° x 40 °.
Connection: Cable with connector, M12x1 connector, 4-pin, 0.3 m
Design: Background illumination
Illumination (0.1 m): 350 lux
Rated operating voltage Ue DC 24 V
Operating mode: Normal (continuous mode)
Light surface 25 x 25 mm
LED red light
Material: Anodised aluminum, black
Glass
PMMA
Protection class: IP54
Power consumption max. 208 mA
Ambient temperature -10...55 °C
Wavelength 617 nm
Additional features:
Design: Background illumination
Supply: Background lighting
Application: For Vision sensors BVS
Dimensions 43 x 9.5 x 64.5 mm
Mounting: Screws
Rated operating voltage Ue DC 24 V
Connection: M12x1 4-pin connector, A-coded
Reverse polarity protection: Yes
MTTF (40 °C) 2833 a
Connection type: Cable with connector, 0.3 m.
Cable length 0.3 m
Housing material: Aluminium, anodized, black|glass, PMMA
Protection class: IP54
Ambient temperature -10...55 °C
Number of conductors: 4
Conductor cross-section: 0.34 mm²
Surface protection: Anodised, black
Adjuster: No
LED red light
Wavelength 617 nm
LED group according to IEC 62471: Free group
Operating mode: Normal (continuous mode)
Power consumption max. 208 mA
Angle of radiation 40 ° x 40 °.
Light surface 25 x 25 mm
Illumination (0.1 m): 350 lux

Product type: Lighting

Connection: Plug

Type: BAE000E

Content: 1 pc(s)

Mounting type: Screw fastening

Length: 64.5 mm

Width: 43 mm

Height: 9.5 mm

Dim: (L x W x H) 64.5 x 43 x 9.5 mm

Material: Aluminium (anodized)
Glass

: IP54

Cable length: 0.3 m

Wavelength: 617 nm

Connector: Plug

Operating voltage: 24 V DC

Cross-section (sensor/actuator wiring): 0.34 mm²

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 3416475 BALLUFF BAE000E Lighting 1 pc(s) (L x W x H) 64.5 x 43 x 9.5 mm

User & Safety Instructions

User & Safety Instructions 3416475 BALLUFF BAE000E Lighting 1 pc(s) (L x W x H) 64.5 x 43 x 9.5 mm

Description

With our background lighting you can check dimensions and shapes easily and independently of material and surface. You can choose between different sizes with different sizes of light field and variants with red light and infrared light. Our background lighting can also be used as diffuse reflected light illumination. Connection = cable with connector M12x1 connector, 4-pin, 0.30 m, version = background lighting, Dimensions=43 x 9.5 x 64.5 mm, rated operating voltage Ue DC=24 V, current consumption max.=208 mA, operating mode=normal, material=anodized aluminum, black glass PMMA, Light surface=25 x 25 mm, light type=LED red light, wavelength=617 nm, light intensity (0.1 m)=350 Lux, radiation angle=40 ° x 40 °, ambient temperature=-10...55 °C, approval/conformity=CEEACWEEE, protection class=IP54

This text is machine translated.

Description

With our background lighting you can check dimensions and shapes easily and independently of material and surface. You can choose between different sizes with different sizes of light field and variants with red light and infrared light. Our background lighting can also be used as diffuse reflected light illumination. Connection = cable with connector M12x1 connector, 4-pin, 0.30 m, version = background lighting, Dimensions=43 x 9.5 x 64.5 mm, rated operating voltage Ue DC=24 V, current consumption max.=208 mA, operating mode=normal, material=anodized aluminum, black glass PMMA, Light surface=25 x 25 mm, light type=LED red light, wavelength=617 nm, light intensity (0.1 m)=350 Lux, radiation angle=40 ° x 40 °, ambient temperature=-10...55 °C, approval/conformity=CEEACWEEE, protection class=IP54

This text is machine translated.
