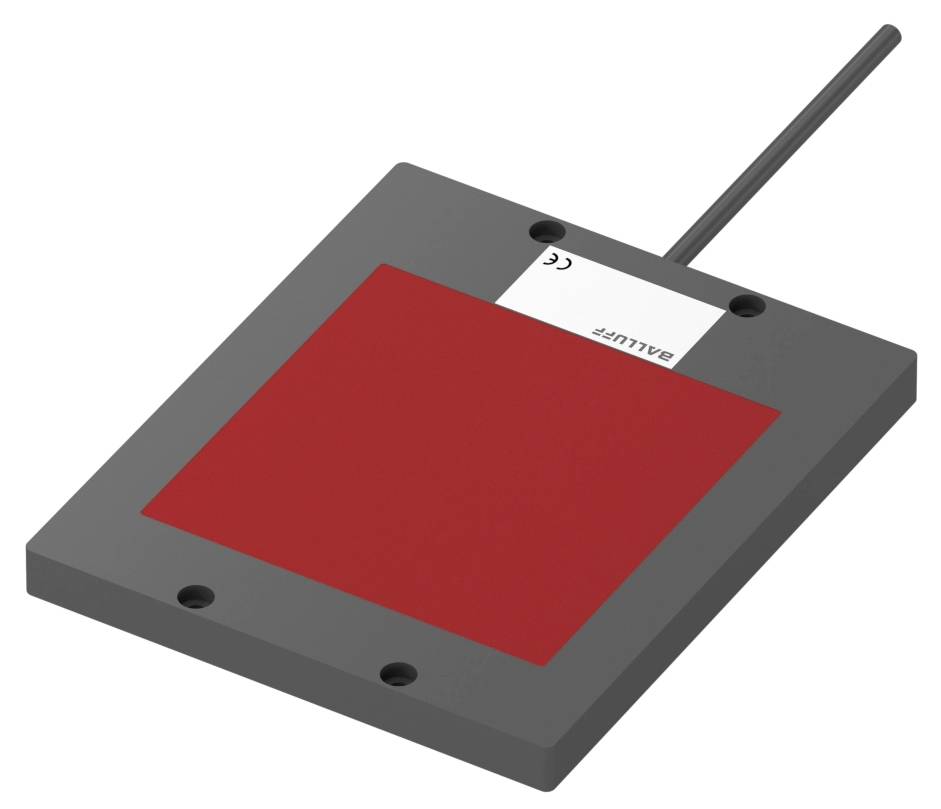

BALLUFF BAE000H Lighting 1 pc(s) (L x W x H) 155 x 130 x 9.5 mm
Product type
Lighting
Connection
Plug
Mounting type
Screw fastening
Type
BAE000H
Content
1 pc(s)
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details
Balluff BAE000H Background lighting
- Connection: Cable with connector, M12x1 connector, 4-pin, 0.3 m
- Dimensions 130 x 9.5 x 155 mm
- Design: Background illumination
- Rated operating voltage Ue DC 24 V
- Power consumption max. 416 mA
Technical specifications
- Main features:Dimension 130 x 9.5 x 155 mm
- Angle of radiation 55° x 55°.
- Connection: Cable with connector, M12x1 connector, 4-pin, 0.3 m
- Design: Background illumination
- Illumination (0.1 m): 3700 lux
- Rated operating voltage Ue DC 24 V
- Operating mode: Normal (continuous mode)
- Digital inputs: Trigger
- Light surface 100 x 100 mm
- LED red light
- Material: Anodised aluminum, black
- Glass
- PMMA
- Protection class: IP54
- Power consumption max. 416 mA
- Ambient temperature -10...55 °C
- Wavelength 617 nm
- Additional features:
- Design: Background illumination
- Supply: Background lighting
- Application: For Vision sensors BVS
- Dimensions 130 x 9.5 x 155 mm
- Mounting: Screws
- Rated operating voltage Ue DC 24 V
- Connection: M12x1 4-pin connector, A-coded
- Reverse polarity protection: Yes
- MTTF (40 °C) 309 a
- Connection type: Cable with connector, 0.3 m.
- Cable length 0.3 m
- Housing material: Aluminium, anodized, black|glass, PMMA
- Number of conductors: 4
- Conductor cross-section: 0.34 mm²
- Surface protection: Anodised, black
- Adjuster: No
- LED red light
- Wavelength 617 nm
- LED group according to IEC 62471: Free group
- Operating mode: Normal (continuous mode)
- Power consumption max. 416 mA
- Angle of radiation 55° x 55°.
- Light surface 100 x 100 mm
- Illumination (0.1 m): 3700 lux
- Product type
Lighting
- Connection
Plug
- Type
BAE000H
- Content
1 pc(s)
- Mounting type
Screw fastening
- Length
155 mm
- Width
130 mm
- Height
9.5 mm
- Dim
(L x W x H) 155 x 130 x 9.5 mm
- Material
Aluminium (anodized)
Glass
IP54
- Cable length
0.3 m
- Wavelength
617 nm
- Connector
Plug
- Operating voltage
24 V DC
- Cross-section (sensor/actuator wiring)
0.34 mm²
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3416481 BALLUFF BAE000H Lighting 1 pc(s) (L x W x H) 155 x 130 x 9.5 mm
User & Safety Instructions
User & Safety Instructions 3416481 BALLUFF BAE000H Lighting 1 pc(s) (L x W x H) 155 x 130 x 9.5 mm
Description
With our background lighting you can check dimensions and shapes easily and independently of material and surface. You can choose between different sizes with different sizes of light field and variants with red light and infrared light. Our background lighting can also be used as diffuse reflected light illumination. Connection = cable with connector M12x1 connector, 4-pin, 0.30 m, version = background lighting, Dimensions = 130 x 12 x 155 mm, rated operating voltage Ue DC = 24 V, current consumption max. = 416 mA, operating mode = normal, digital inputs = trigger, material = aluminum anodized, black glass PMMA, illuminated area=100 x 100 mm, light type=LED red light, wavelength=617 nm, illumination strength (0.1 m)=3700 Lux, radiation angle=55° x 55°, ambient temperature=-10...55 °C, approval/conformity=CEEACWEEE, protection class=IP54
